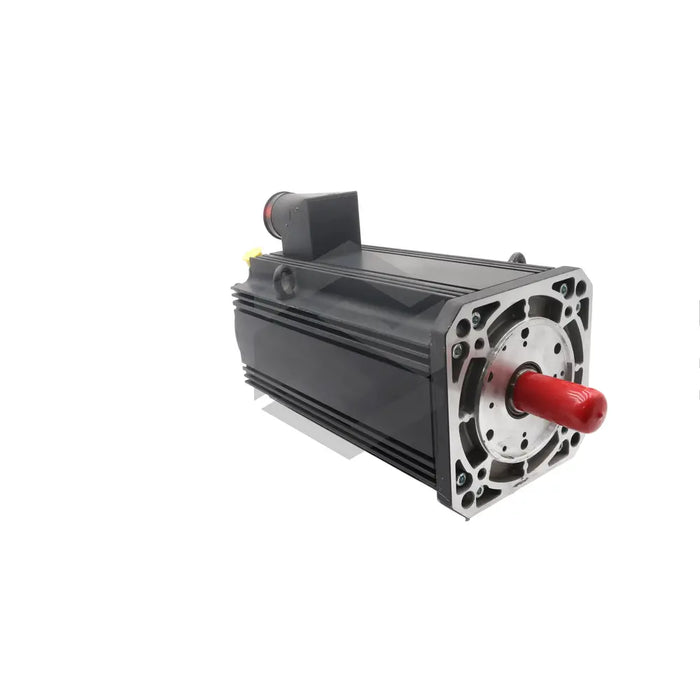

C image of MSK100C-0300-NN-M2-BP0-RNNN | Front Right

MSK100C-0300-NN-M2-BP0-RNNN

by Bosch Rexroth Indramat
$24,647.49 - $24,647.49
$24,647.49
$24,647.49 - $24,647.49
$24,647.49

In Stock, Ships 1 - 3 Days

The MSK100C-0300-NN-M2-BP0-RNNN is a servo motor created by Bosch Rexroth Indramat. Built for commercial and industrial applications, this motor is part of Bosch's MSK product line. It features an encoder, a keyway shaft, and a specially designed housing for improved run out and concentricity, in compliance with DIN 42955. Though Bosch offers optional holding brakes for MSK motors, this model doesn't include it. A shaft seal, used cable connectors, and a sealed housing confer an IP65 protection rating, making this motor safe from dust and low-pressure water jets. Its optical multi-turn encoder uses an EnDat 2.1 interface, has 4096 distinct revolutions, with a system accuracy of ±20 angular seconds. Its operation requires an ambient temperature of 0 to 40 degrees Celsius for rated values, and up to a maximum of 55 degrees Celsius for derated values. With a mass of 45.1 kilograms, its rotor's moment of inertia is 0.02730 kg m2. Its thermal class is 155.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Product Line

MSK

Features

Encoder, Shaft with keyway, DIN 42955 compliant housing

Optional Holding Brake

No

Shaft Features

Shaft seal

Protection Rating

IP65

Dust Ingress Protection

Yes

Low-Pressure Water Jet Protection

Yes

Electrical Connection Location

Side B of the housing

Encoder Type

Optical Muliturn Encoder with EnDat 2.1 interface

Distinguishable Revolutions for Encoder

4096

Encoder System Accuracy

±20 angular seconds

Encoder Current Consumption

250 milliamps

Encoder Supply Voltage Range

3.6 to 14 Volts DC

Cooling System

Natural Convection

Operation Ambient Temperature Range

0 to 40 degrees Celsius

Maximum Ambient Temperature with Derated Values

55 degrees Celsius

Maximum Site Elevation for Derated Values

3000 meters

Motor Mass

45.1 kilograms

Rotor Moment of Inertia

0.02730 kg m2

Thermal Class

155
