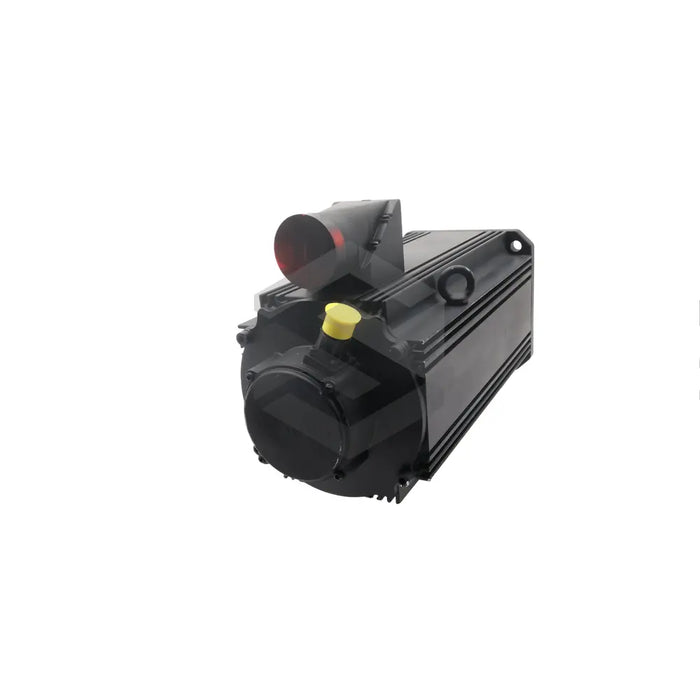

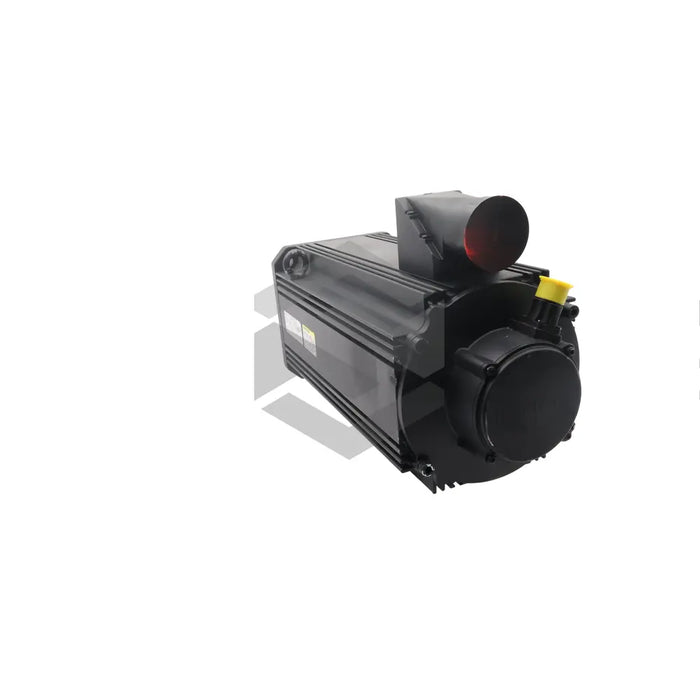

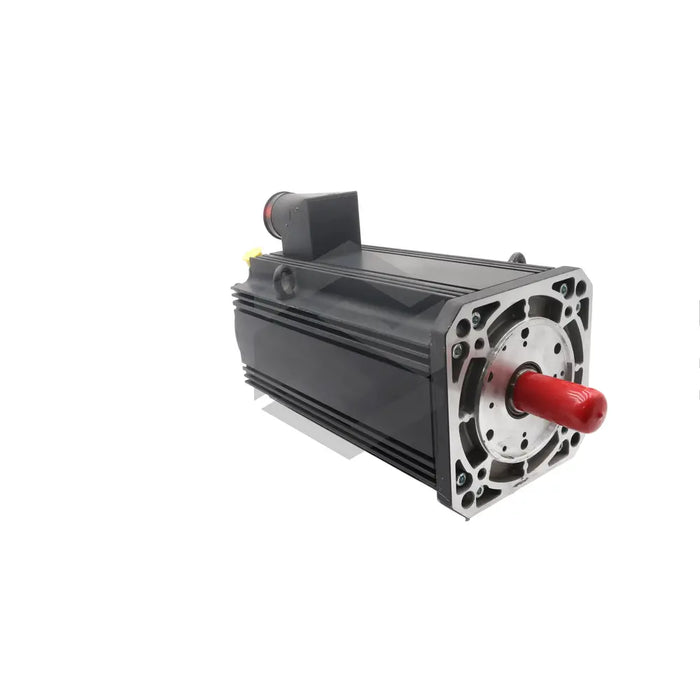

MSK100C-0300-NN-M2-BP2-RNNN
Bosch Rexroth Indramat's MSK100C-0300-NN-M2-BP2-RNNN is a servo motor in the MSK product line, effective in applications such as metal-forming machines, packaging machines and robotics. Its operation requires adherence to specified configurations, software/firmware, and environmental conditions mentioned in the product documentation. Upon start-up, a prior configuration of the connected controller ensures optimal functionality. This motor delivers various torque and current outputs depending on use with natural convection (38 Nm and 21.6 Amps at 60K overtemperature; 43.5 Nm and 27 Amps at 100K overtemperature) or surface cooling (57 Nm and 32.4 Amps), with a maximum torque of 138 Nm and a peak current of 97.2 Amps. Additional features include a 1.94 Nm/A torque constant, a 119 Volts/1000 RPM voltage constant at 20 degrees Celsius, a 70 Nm holding brake, a key-included main motor shaft, a shaft seal, an optical multiturn 2048-signal-period encoder, a side-B power socket in an IP65-rated housing, and a total weight of 48.9 kilograms.
