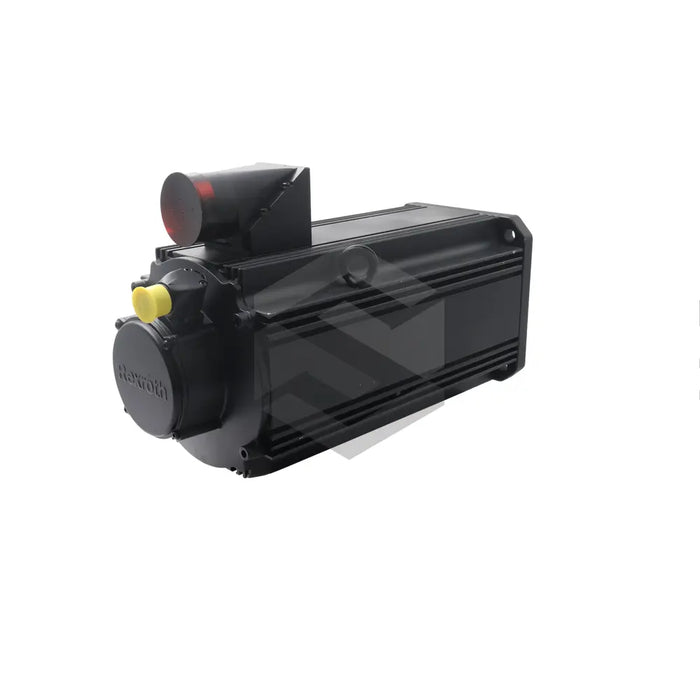

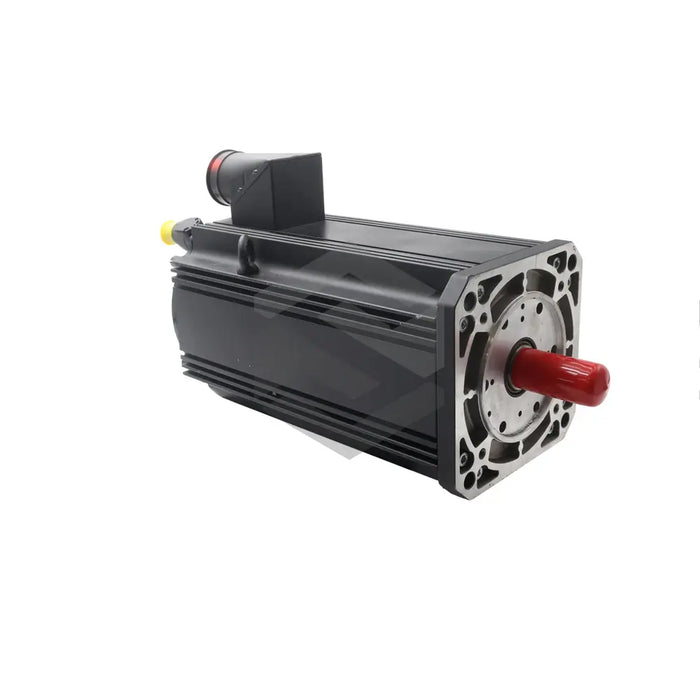

sub_series image of a MSK100C-0300-NN-S1-AP2-NNNN

MSK100C-0300-NN-S1-AP2-NNNN

by Bosch Rexroth Indramat
$15,930.00 - $15,930.00
$15,930.00
$15,930.00 - $15,930.00
$15,930.00
In Stock, Ships Today
Bosch Rexroth Indramat presents the MSK100C-0300-NN-S1-AP2-NNNN synchronous motor. This powerful model is ideal for machine tools and packaging or food processing equipment. It is designed with a thermal time constant of 90 minutes, a discharge volume of 14.3 nF, and boasts a winding resistance of 0.30 ohms and inductance of 4.200 mH. Its high-precision one-turn hiperface optical encoder effectively records both absolute and indirect positions. Notably, the motor's torque constant stands at 1.94 Nm/A, and its rotor moment of inertia sits at 0.02730 kgm2. The unit's holding brake weighs 4.9 kg, operates at a voltage of 24 volts, and provides consistent connection and disconnection times. At a steady temperature of 60 K, the motor delivers 38Nm constant torque and requires 21.6 A continuous current. Lastly, a sealing ring on the keyways of the output shaft guarantees motor overpressure control, preventing intrusion of undesired fluids. Prior to shipping, the device is extensively inspected to ensure flawless operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motor
  • Model Number: MSK100C-0300-NN-S1-AP2-NNNN
  • Thermal Time Constant: 90 minutes
  • Discharge Capacity: 14.3 nF
  • Winding Resistance: 0.30 ohms
  • Inductance: 4.200 mH
  • Use: Packing Machines, Machine Tools, Food Processing Equipment
  • Encoder Type: Single-turn Hiperface Optical
  • Torque Constant Motor: 1.94 Nm/A
  • Moment of Inertia of Rotor: 0.02730 kgm2
  • Holding Brake Weight: 4.9 kilograms
  • Holding Brake Connection Time: 53 milliseconds
  • Holding Brake Disconnection Time: 97 milliseconds
  • Holding Brake Torque: 70 Newton meters
  • Holding Brake Operating Voltage: 24 volts
  • Constant Torque at 60 K: 38 Nm
  • Continous Current at 60 K: 21.6 A
  • Constant Torque at 100 K: 43.5 Nm
  • Continuous Current at 100 K: 27 A
  • Shaft Output: With Keyway and Sealing Ring
  • Function of Sealing Ring: Maintain specified level of motor overpressure
  • Pre-delivery Condition: Tested for functionality and defects.
