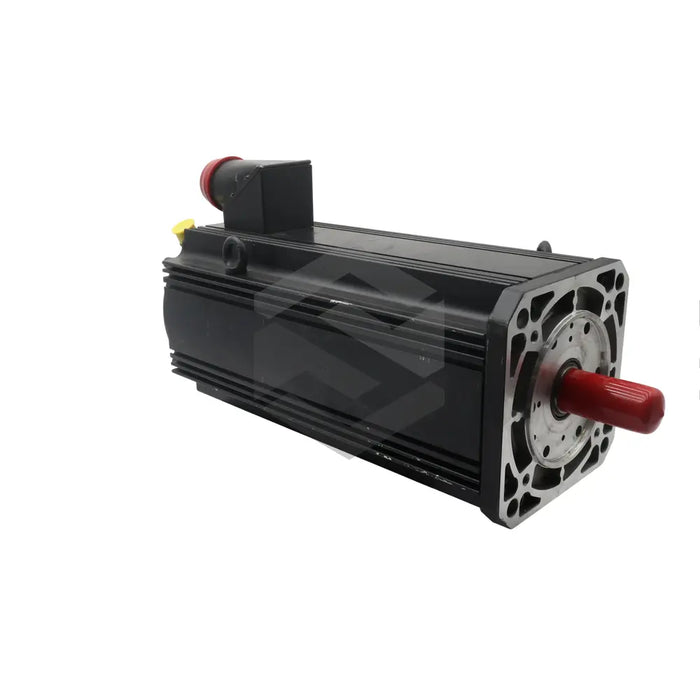

C image of MSK100D-0200-NN-M2-BG0-RNNN | Front Right

MSK100D-0200-NN-M2-BG0-RNNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MSK100D-0200-NN-M2-BG0-RNNN, produced by Bosch Rexroth Indramat, is an advanced digital AC motor designed for high-performance applications. Ideal for use with metal-forming, robotic, packaging and printing machines, this motor features a frame size of 100 and a frame length of C. Its motor winding code is 200, indicating its configuration and function. This model operates optimally under natural convection but has the flexibility to be fitted with a cooling fan for surface cooling, potentially amplifying output torque and current. Its rated continuous torque and motor current under natural convection are 48 Nm and 13 Amp respectively, increasing to 72 Nm and 19.5 Amp under surface cooling for enhanced power. It delivers a maximum speed of 2000 RPM, while operating under an ambient sound of 75dB. It is equipped with an optical multiturn encoder with EnDat 2.1 interface and a power socket on side B of the motor housing, contributing to its comprehensive and flexible performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital AC motor

Applications

Metal-forming machines, Robotics, Packaging machines, Printing machines

Motor Type

MSK

Frame Size

100

Frame Length

C

Motor Winding Code

200

Design

Natural Convection (Optional surface cooling)

Continuous Motor Torque (Natural Convection)

48 Nm

Continuous Motor Current (Natural Convection)

13 Amp

Continuous Motor Torque (Surface Cooling)

72 Nm

Continuous Motor Current (Surface Cooling)

19.5 Amps

Maximum Motor Torque

187 Nm

Maximum Motor Current

58.5 Amps

Rated Speed

2000 RPM

Noise Level

75 dB max

Encoder

Integrated optical multiturn encoder with EnDat 2.1 interface (2048 signal periods)

Power Socket Location

Side B of motor housing

Motor Shaft

Plain with shaft seal

Motor Housing

Designed for increased concentricity run out.
