MSK100D-0300-NN-M1-BG0-NNNN

Original price $18,900.00 - Original price $18,900.00
Original price
$18,900.00
$18,900.00 - $18,900.00
Current price $18,900.00
In Stock, Ships 3 - 5 Days
Request a quote

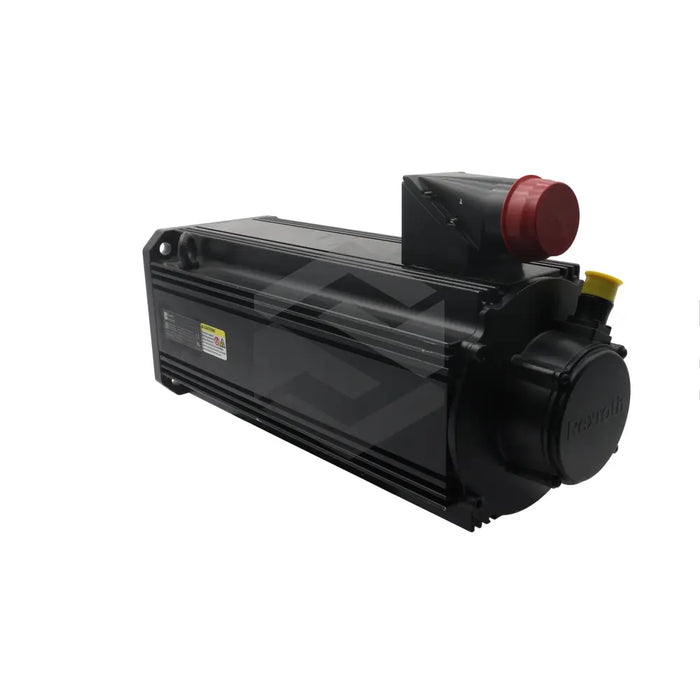

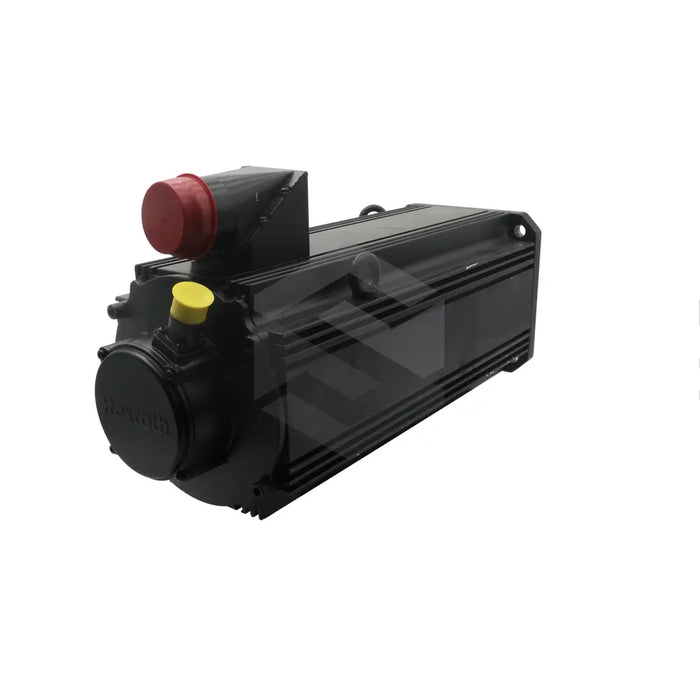

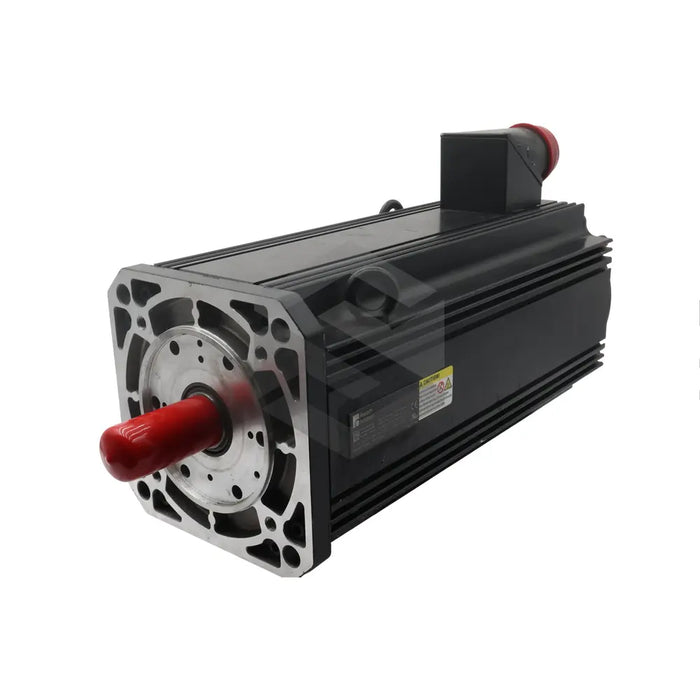

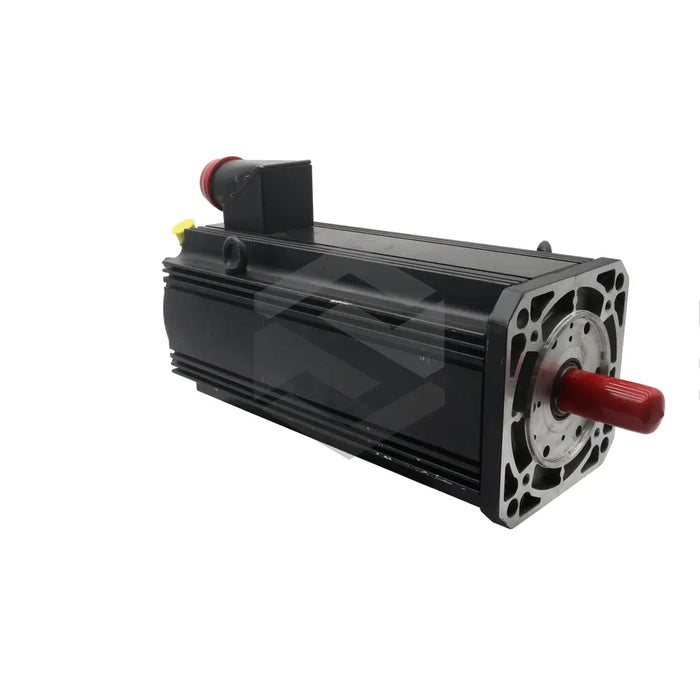

The Bosch Rexroth Indramat’s MSK100D-0300-NN-M1-BG0-NNNN is a durable servo motor designed for high-quality performance. It operates at a maximum speed of 3000 RPM and is compact at 56 kilograms in weight. Despite its powerful output, the motor has a low noise level of less than 75 dB. The motor carries an IP65 protection rating, meaning it is dust-tight and can withstand water from low-pressure jets, making it ideal for humid or dust-prone environments. The motor features a built-in multiturn encoder rated for 128 signal periods and supports up to 4096 revolutions with 120 seconds system accuracy. It also carries a plain shaft with a sealing ring for protection against solids and liquids. Although the power connector is placed on side B, connectors for power and feedback cables need to be purchased separately. For optimum performance, it should be operated within a 0-40 degrees Celsius range.
30 Day Warranty
Technical Specifications
  • Product: MSK100D-0300-NN-M1-BG0-NNNN
  • Manufacturer: Bosch Rexroth Indramat
  • Type: Servo Motor
  • Maximum Electric Speed: 3000 RPM
  • Product Weight: 56 kilograms
  • Sound Level: 75 dB max
  • Protection Class : IP65
  • Features: Integrated absolute multiturn encoder, plain shaft, standard housing
  • Encoder Signal Periods: 128
  • Encoder Revolutions: 4096 distinguishable revolutions
  • System Accuracy: 120 seconds
  • Peak Encoder Speed: 9000 RPM
  • Shaft: Plain with sealing ring
  • Power Connector Position: Side B
  • Operating Temperature range: 0 to 40 degrees Celsius
