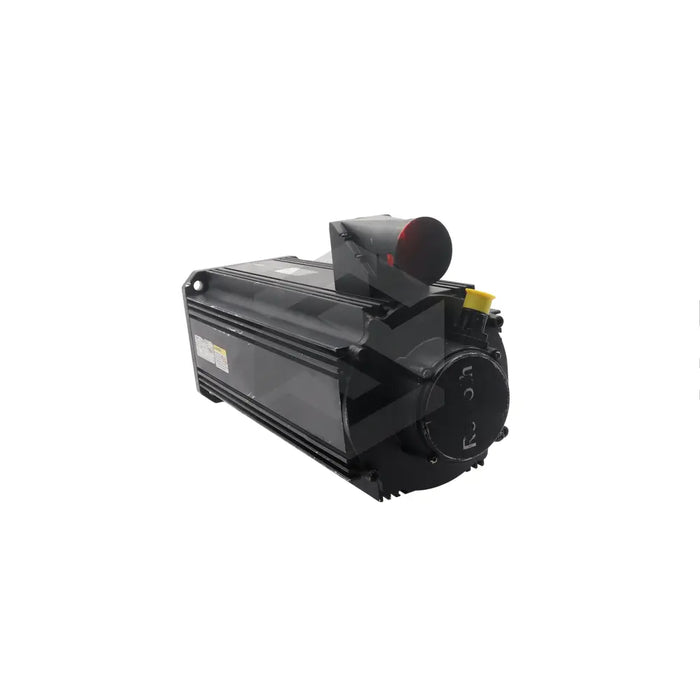

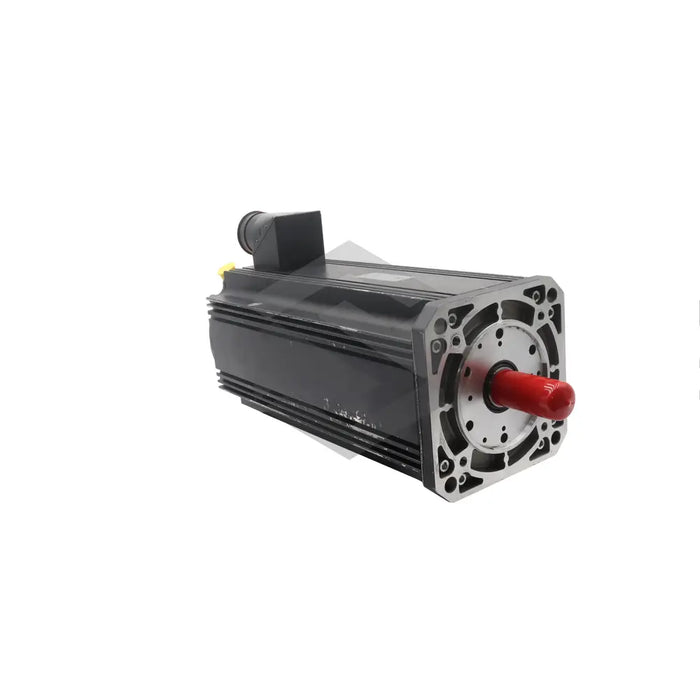

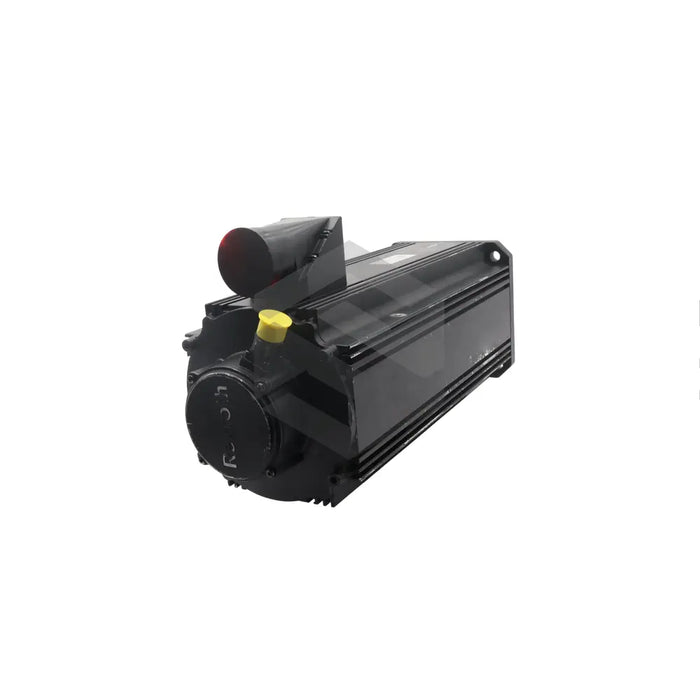

MSK100D-0300-NN-M1-BP0-NSNN
The MSK100D-0300-NN-M1-BP0-NSNN synchronous servo motor is a high performing product from Bosch Rexroth Indramat, providing optimal solutions for automated machinery needs. Delivering a maximum torque of 187 Nm, it operates efficiently at an ambient temperature range of 0 - 40 degrees Celsius. The motor, which weighs 56 kg, offers 48 Nm of continuous torque at a standstill and can reach a maximum speed of 3000 rpm. Its thermal time constant has been measured at approximately 90 minutes. Robustness against harmful environmental conditions is assured with its class 155 insulation and is safely capable of working in potentially explosive applications due to its IP65 rating. The motor operates quietly with a sound pressure level below 75 dB[A]. Although the unit doesn't come with holding brakes, it can be ordered in various sizes from Servo Supplier and can be easily installed because of the 4 through holes in the aluminum flange.
30 Day Warranty
Technical Specifications
