C image of MSK100D-0300-NN-M2-BG0-RNNN | Front Right

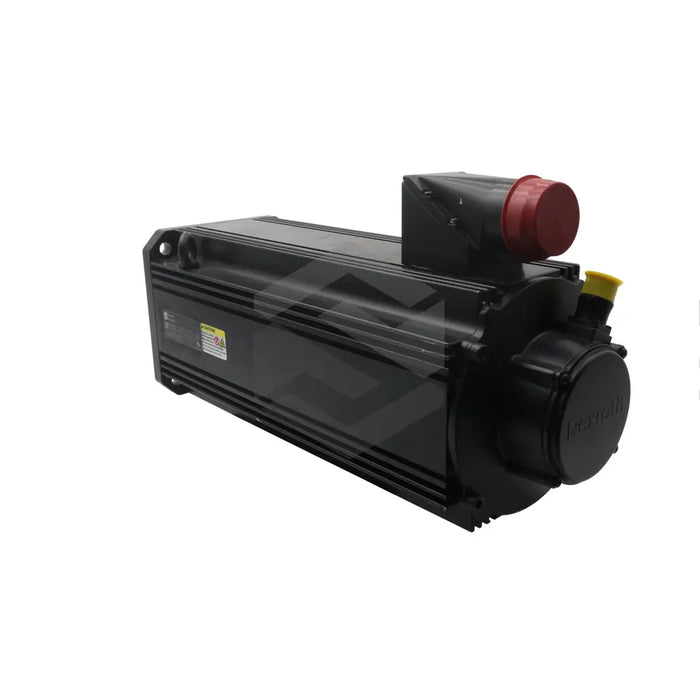

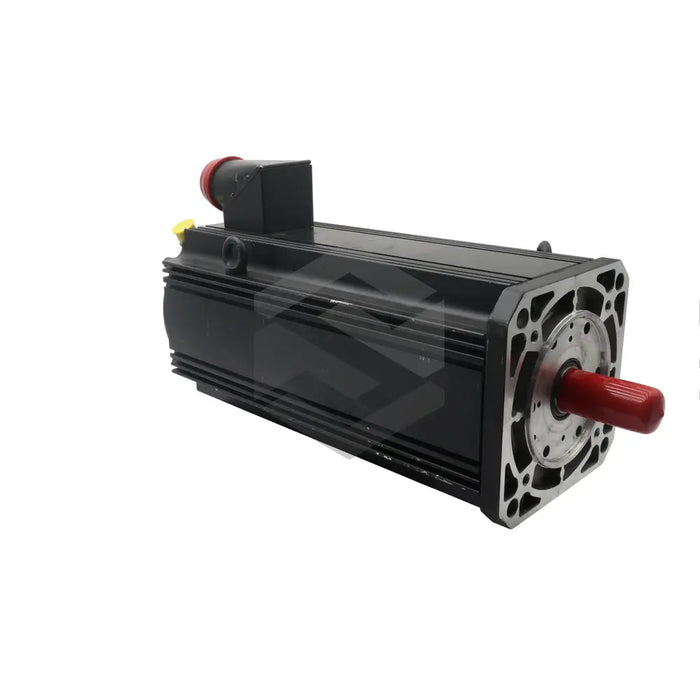

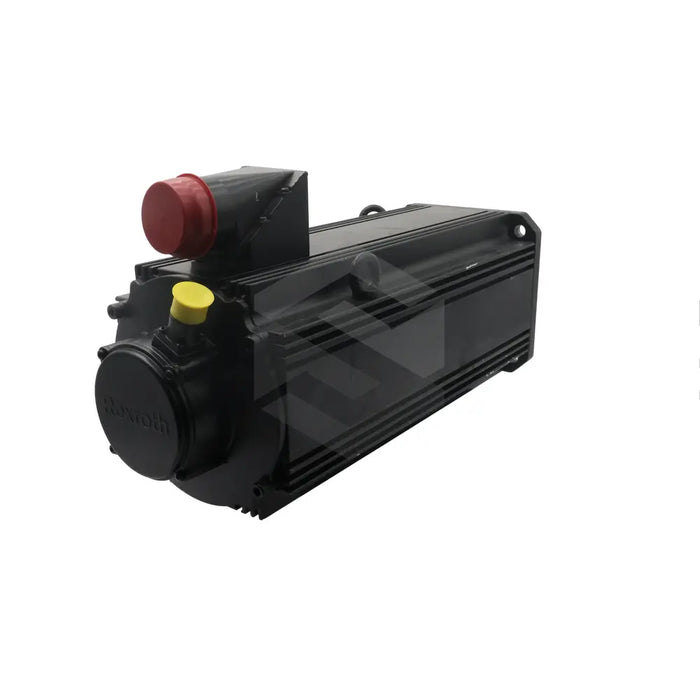

MSK100D-0300-NN-M2-BG0-RNNN

by Bosch Rexroth Indramat
$6,016.22 - $12,605.09
$6,016.22
$6,016.22 - $12,605.09
$6,016.22

In Stock, Ships 1 - 3 Days

The MSK100D-0300-NN-M2-BG0-RNNN, produced by Bosch Rexroth Indramat, is a synchronous servo motor designed for automation applications. It features an EnDat2.1 multi-turn encoder for rotor monitoring and offers 48 Nm of constant torque at 60 k using 20.7 A of power. This motor operates best in temperatures ranging from 0 to +40 degrees Celsius and can be transported safely in temperatures from -20 to +80 degrees Celsius. The model includes a sealing ring on the output shaft to prevent lubricant seepage and has a maximum speed of 3000 RPM, at a noise level under 75 dB. With a weight of 56 kg and superior torque density, the motor can serve various tasks efficiently. The MSK100D-0300-NN-M2-BG0-RNNN model also provides 72 Nm of stationary output torque at 31.1 amps in surface cooling mode and meets IP65 dust and liquid protection standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MSK100D-0300-NN-M2-BG0-RNNN

Encoder

EnDat2.1

Continuous Torque

48 Nm at 60k

Continuous Current

20.7 A

Operating Temperature

0 to +40 degrees Celsius

Transport Temperature

-20 to +80 degrees Celsius

Shaft Type

Plain output shaft with sealing ring

Maximum speed

3000 revolutions per minute

Weight

56 kg

Stationary Operation Torque

72 Newton meters

Stationary Operation Current

31.1 amps

Winding Resistance

0.35 ohms

Electrical Connection

B side of the housing

Moment of Inertia

0.03500 kgm2

Protection Standard

IP65

Thermal Class

155

Maximum Torque

187 Newton meters

Maximum Current Consumption

93.2 A.
