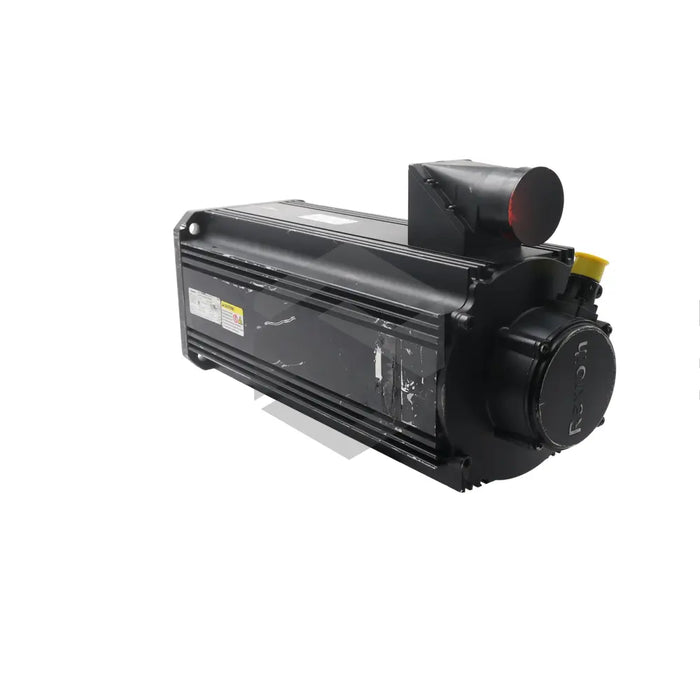

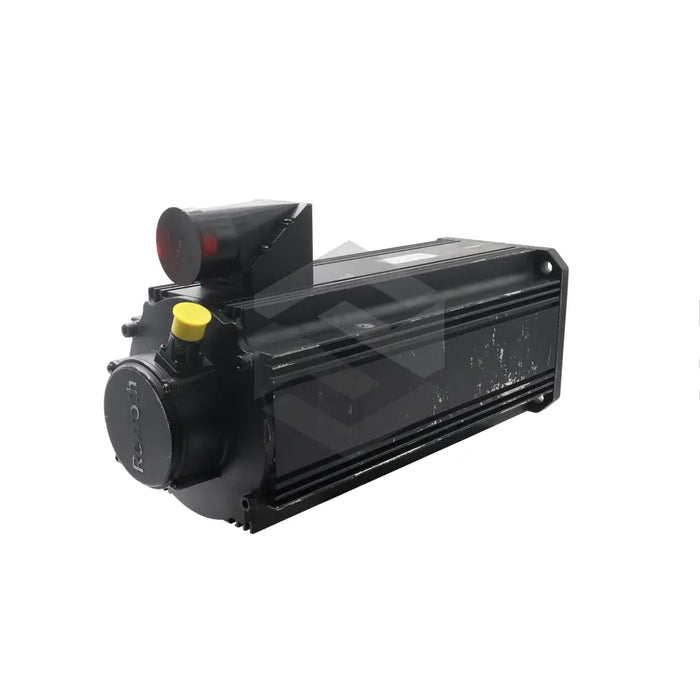

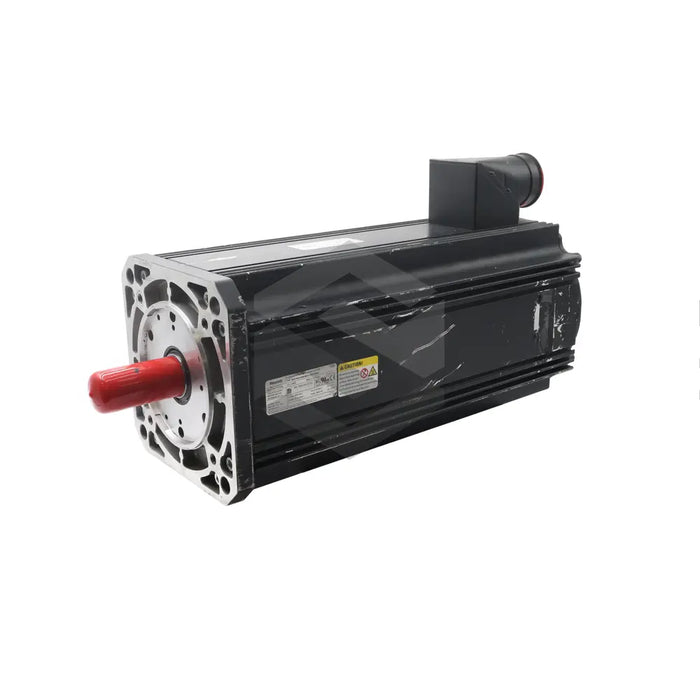

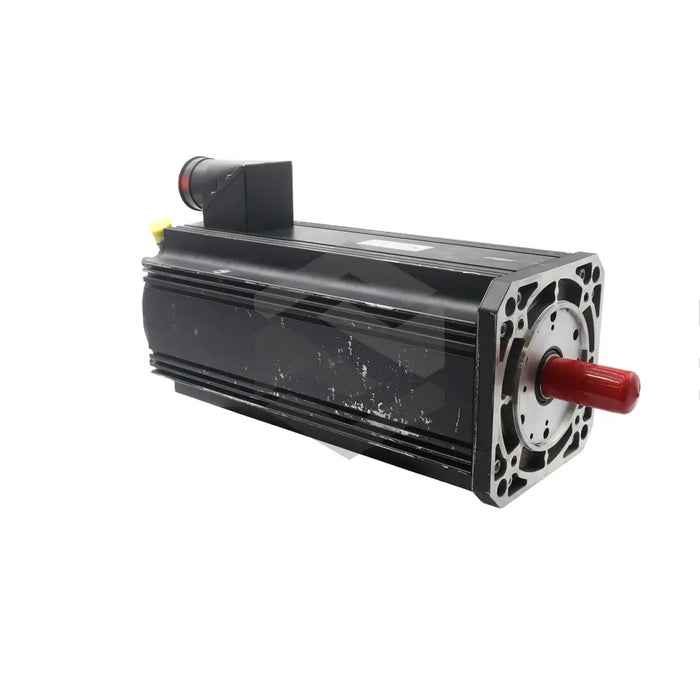

MSK100D-0300-NN-M3-AP2-NNNN

Original price $25,200.00 - Original price $25,200.00
Original price
$25,200.00
$25,200.00 - $25,200.00
Current price $25,200.00
In Stock, Ships 3 - 5 Days
The MSK100D-0300-NN-M3-AP2-NNNN, manufactured by Bosch Rexroth Indramat, is a versatile servo motor equipped with numerous features. It incorporates a holding brake, an optical encoder and a shaft with keyway. The encoder is a capacitive multiturn type with Hiperface support, renowned for its high accuracy, reliability, and suitability for applications such as industrial automation, robotics and medical devices. Its performance is rated at 16 signal periods. The servo motor also includes a 70 Nm holding brake operating on the principle of an electrical release. When applying a 24 Volts DC signal, the shaft is released. The brake draws a current of 1.29 Amps and operates with a maximum connection and disconnection time of 53 and 97 milliseconds respectively. Lauded for its standard compliance, the shaft with keyway adheres to DIN 6885-1, fitting keyways and splines required for rotating shafts, ensuring strength and stability.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Model Number: MSK100D-0300-NN-M3-AP2-NNNN
  • Features: Holding Brake, Optical Encoder, Shaft with Keyway
  • Encoder Type: Capacitive Multiturn, Hiperface support
  • Encoder Usage: To measure the position of a rotating shaft
  • Signal Periods: 16
  • Holding Brake Torque: 70 Nm
  • Brake Operation: Electrical Release, 24 Volts DC signal
  • Current Draw: 1.29 Amps
  • Maximum Connection Time: 53 milliseconds
  • Maximum Disconnection Time: 97 milliseconds
  • Moment of Inertia: 0.003 kg m2
  • Shaft Type: With Keyway
  • Keyway Standard: DIN 6885-1
