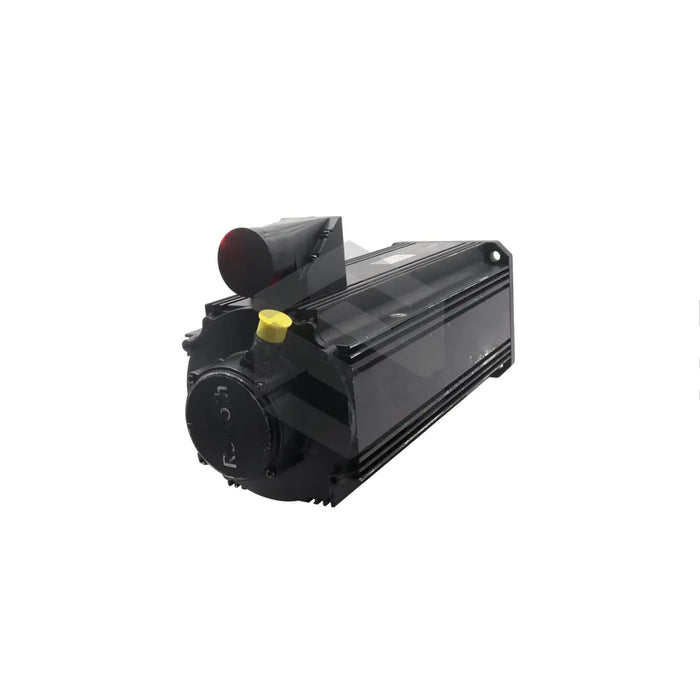

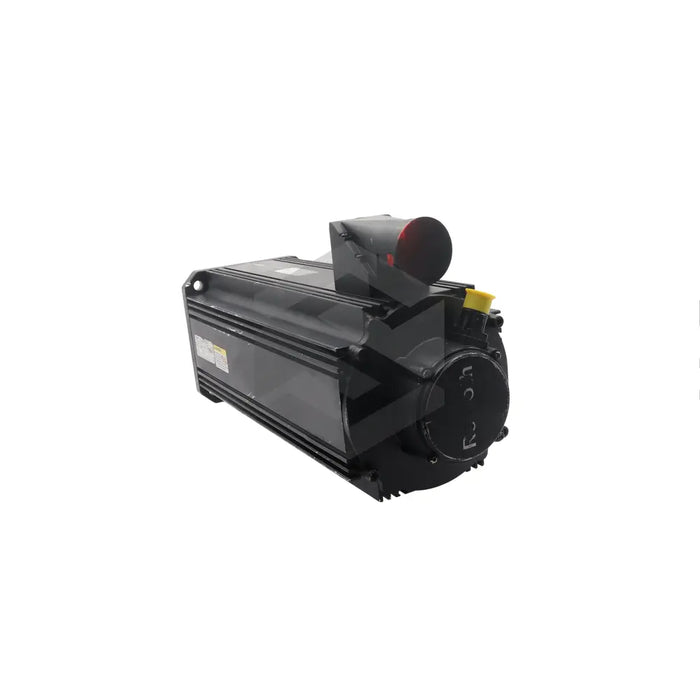

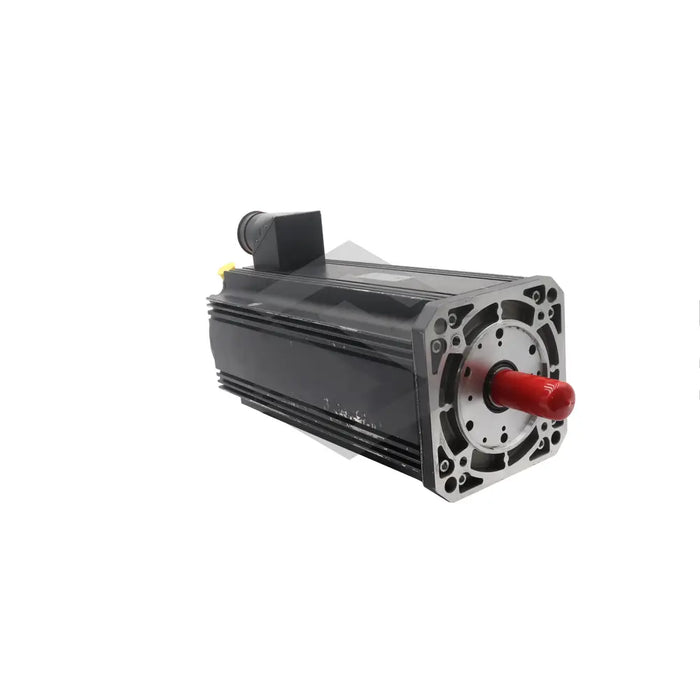

C image of MSK100D-0300-NN-S1-BP0-NSNN | Front Right

MSK100D-0300-NN-S1-BP0-NSNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MSK100D-0300-NN-S1-BP0-NSNN is a synchronous servo motor made by Bosch Rexroth Indramat. A component of the highly-acclaimed IndraDyn S (MSK Series), it exhibits prominent torque density and precision while sporting a compact design. Its specifications include a winding code of 300, capable of generating up to 187 Nm torque from 93.2 Ampere current supporting top speeds of 3000 rpm. The servo motor delivers 48 Nm of continuous torque at a standstill 60 K from 20.7 Ampere and 57.0 Nm at standstill 100 K from 24.8 Ampere. It is housed in a standard and AXEX designed 56.0 kg frame compliant with Group II, Category 3G and 3D according to DIN EN 60079 ff. The motor boasts of an IP65 degree of protection, cooled by natural convection and an electrical connection on the B side. Its shaft is designed with a keyway in compliance with DIN 6885-1 standards along with a sealing ring. A single-turn hiperface optical encoder with 128 signal periods contributes to its high precision performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

IndraDyn S (MSK Series)

Product model number

MSK100D-0300-NN-S1-BP0-NSNN

Winding code

300

Maximum torque

187 Nm

Maximum current draw

93.2 A

Maximum speed

3000 rpm

Continuous torque at 60 K standstill

48 Nm

Current draw at 60 K standstill

20.7 A

Continuous torque at 100 K standstill

57.0 Nm

Current draw at 100 K standstill

24.8 A

Weight

56.0 kg

Design

Standard, AXEX Group II, Category 3G and 3D

Protection level

IP65

Cooling method

Natural convection

Electrical connection location

B side

Shaft type

Shaft with keyway (DIN 6885-1) with sealing ring

Encoder type

Single turn hiperface optical encoder with 128 signal periods
