MSK100D-0300-NN-S2-BP0-RNNN

Original price $5,772.90 - Original price $5,772.90
Original price
$5,772.90
$5,772.90 - $5,772.90
Current price $5,772.90
Available, Shipping Varies
Request a quote

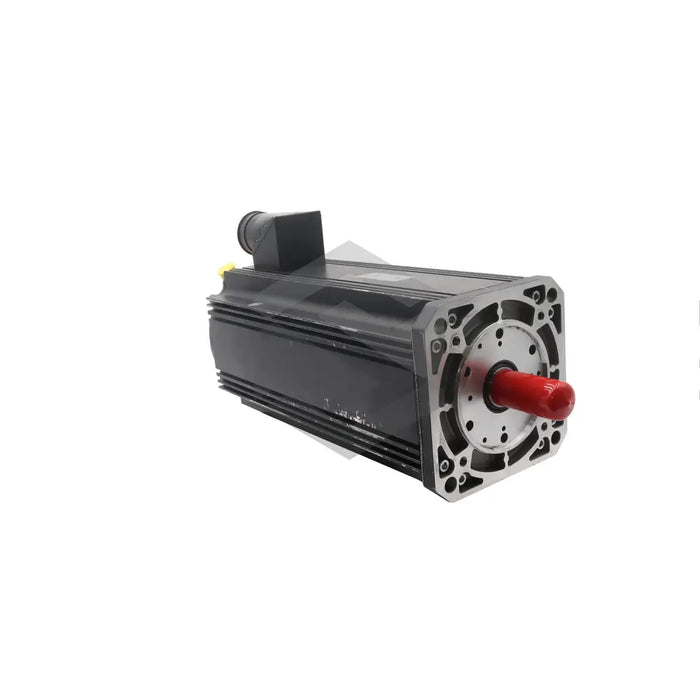

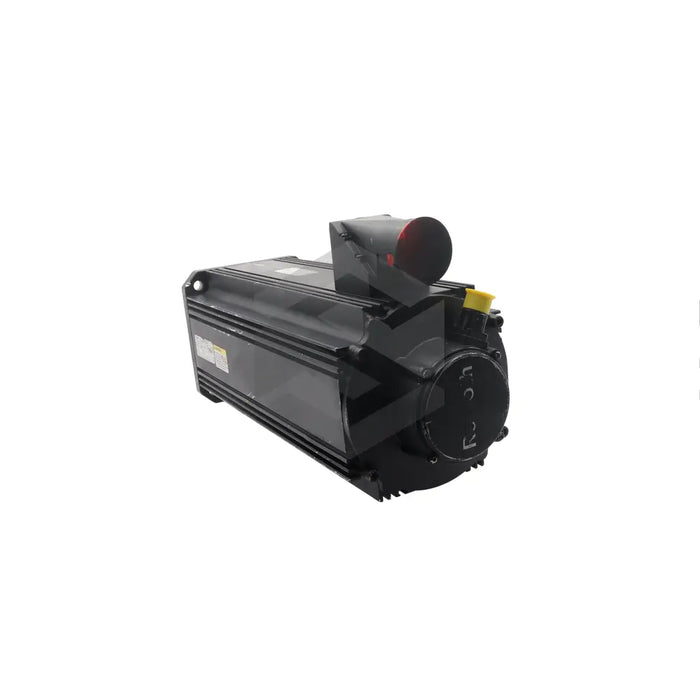

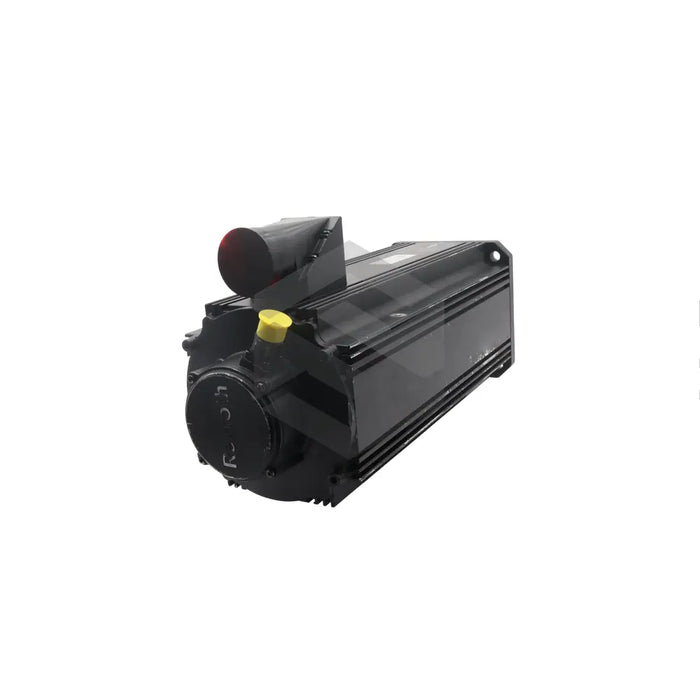

The MSK100D-0300-NN-S2-BP0-RNNN, manufactured by Bosch Rexroth Indramat, is a versatile synchronous servo motor that’s adaptable for unique applications beyond standard uses. With a maximum speed of 3,000 revolutions per minute, the motor features a single-turn encoder that uses an optical measurement method for outstanding precision. It records its indirect position within one mechanical rotation and stores motor type and control parameters for efficient startup and safe adaptation to the drive controller. Thermal overload protection is provided by the KTY84 thermal sensor in the stator complemented by an independent temperature model. Additionally, the motor boasts an IP 65 rating indicating it is protected from dust and water sprays, making it suitable for harsh environments. The output shaft includes a keyway design that allows for the form-fitting transmission of torques with minimal shaft-hub connection requirements. The motor should be installed at elevations not exceeding 1,000m.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product line: MSK Series
  • Model: MSK100D-0300-NN-S2-BP0-RNNN
  • Type: Synchronous Servo Motor
  • Maximum Speed: 3,000 revolutions per minute
  • Encoder Type: Single-Turn with EnDat 2.1 interface
  • Encoder System Accuracy: ±20 angular seconds
  • Cooling Mode: Natural convection
  • Thermal Overload Protection: KTY84 thermal sensor in stator
  • Additional Temperature Monitoring: Temperature model
  • Ingress Protection Rating: IP 65 according to EN 60529
  • Output Shaft Type: With keyway per DIN 6885-1 and a shaft sealing ring
  • Shaft Sealing Ring Standard: DIN 3760 – design A
  • Maximum Installation Height: 1,000m
