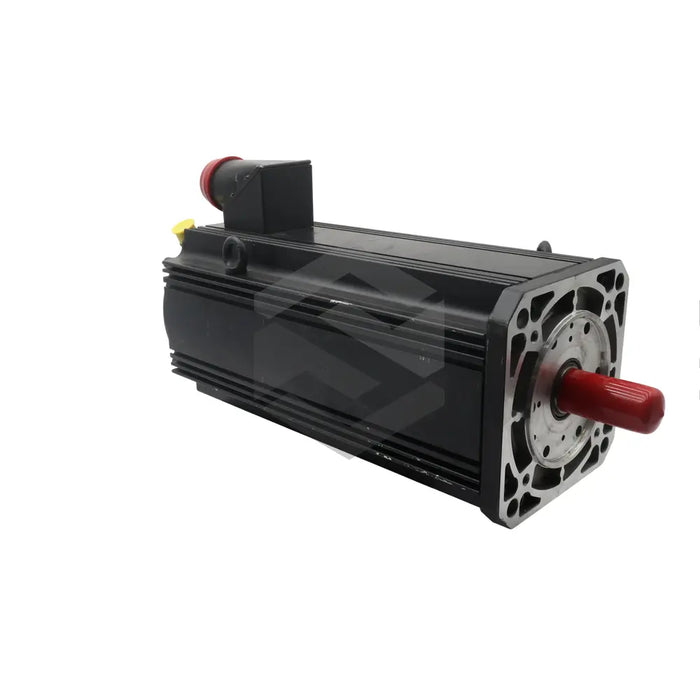

C image of MSK100D-0350-NN-S1-BG0-NNNN | Front Right

MSK100D-0350-NN-S1-BG0-NNNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MSK100D-0350-NN-S1-BG0-NNNN, designed by Bosch Rexroth, is a high-performance synchronous servo motor falling under the MSK series. Known for its compact design, this motor is outfitted with a plain shaft and a DIN 3760 – design A certified shaft sealing ring, ensuring an efficient zero backlash shaft-hub connection and robust fluid penetration resistance. Integrated into the servo motor is an optical single-turn Hiperface encoder; this boosts high precision and minimal startup time due to embedded parameter storage. An impressive IP 65 rated housing provides ideal usage in harsh conditions, protecting from water sprays and solid materials. The motor coating, a resilience-optimized black epoxy polyamide resin, ensures utmost resistance against water, sewage, seawater, dilute acids, mineral oils, and alkaline solutions. Performance-wise, it boasts a maximum speed of 3,000 RPM and a peak torque of 185.0Nm.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MSK Servo Motors

Model Number

MSK100D-0350-NN-S1-BG0-NNNN

Shaft Type

Plain Shaft with Sealing Ring (DIN 3760 – design A)

Encoder Type

Single-turn Encoder with Hiperface Interface (Optical)

System Accuracy

±80 Angular Seconds

Ingress Protection Rating

IP 65 according to EN 60529

Housing Type

Sealed

Coating

Black (RAL9005) 2K Epoxy Resin Coating (Epoxy Polyamide Resin in Water)

Resistance

Water, Sewage, Seawaters, Current mineral Oils, Dilute Acids, Alkaline Solutions (Limited resistance to Organic Solvents and Hydraulic Oils)

Maximum Speed

3,000 revolutions per minute

Maximum Torque

185.0Nm.
