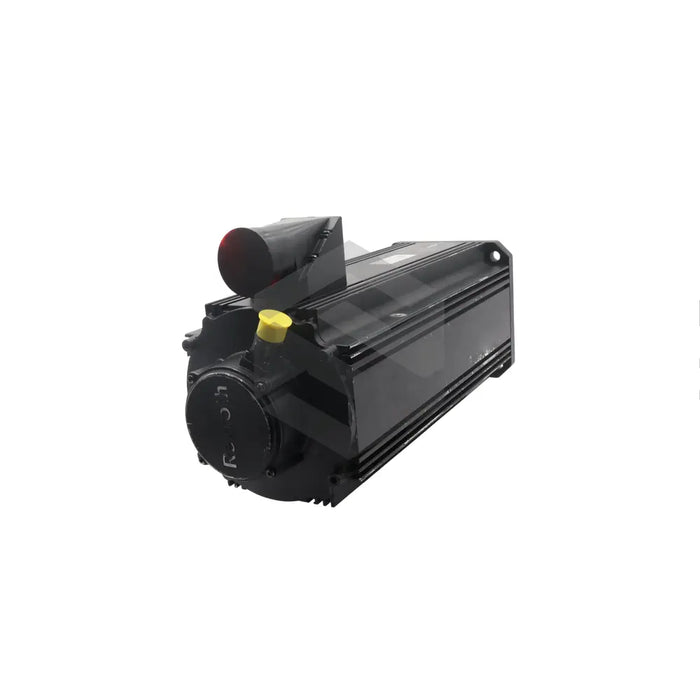

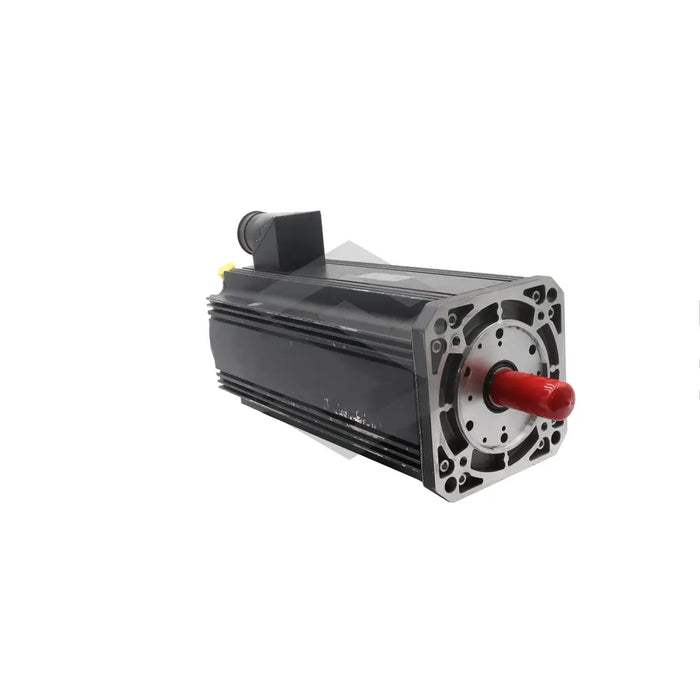

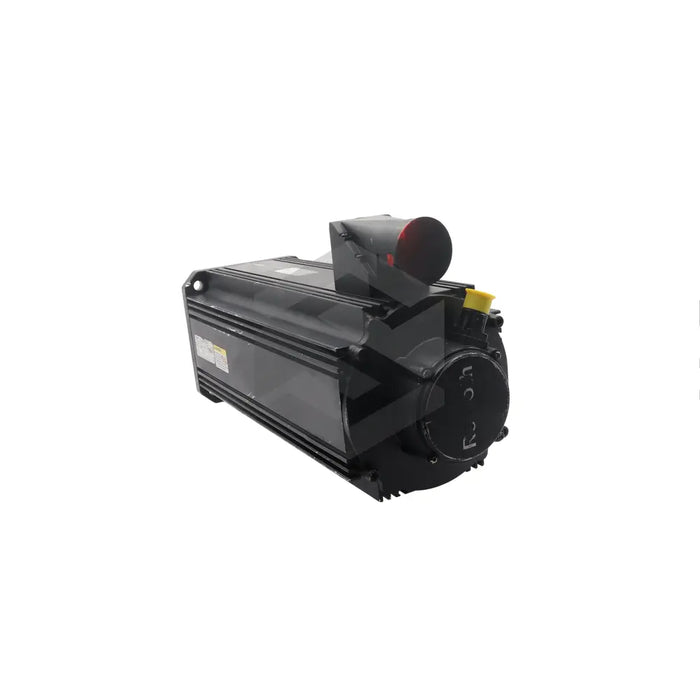

MSK100D-0350-NN-S1-BP0-NNNN

Request a quote
The MSK100D-0350-NN-S1-BP0-NNNN is part of the MSK servo motor collection produced by Bosch Rexroth Indramat, renowned for flexibility due to its optional add-ons. These synchronous servo motors, frequently used in food processing, packaging machines, and robotics, are equipped with high torque density and accurate encoder systems. This specific model has a rotor with a moment of inertia of 0.03500 kgm2, a maximum speed of 3,000 revolutions per minute, and four pole pairs, generating a maximum torque of 185.0Nm. A KTY84 thermal sensor and an independent temperature model safeguard the motor against overheating. The dustproof, touch-proof IP 65-rated housing efficiently blocks water jet sprays and harmful agents. Coated with a black (RAL9005) 2K epoxy resin varnish, the motor has a durable housing. Completing its features is a single-turn Hiperface interface encoder for precise measurements and an output shaft with keyway for stable torque transmission.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product type: MSK Servo Motors
  • Model: MSK100D-0350-NN-S1-BP0-NNNN
  • Rotor moment of inertia: 0.03500 kgm2
  • Maximum speed: 3,000 revolutions per minute
  • Maximum torque: 185.0Nm
  • Pole Pairs: Four
  • Thermal sensor: KTY84 thermal sensor
  • Independent Temp Module: Yes
  • Protection Rating: IP 65 per EN 60529
  • Resistance to: Mineral oils, water, dilute acids, sewage
  • Housing Varnish: Black (RAL9005) 2K epoxy resin coating (epoxy polyamide resin in water)
  • Encoder Type: Single-turn Hiperface interface
  • Encoder Function: Evaluates absolute, indirect position within one mechanical motor rotation
  • Output shaft: With keyway (DIN 6885-1)
