MSK100D-0350-NN-S2-BP0-RNNN

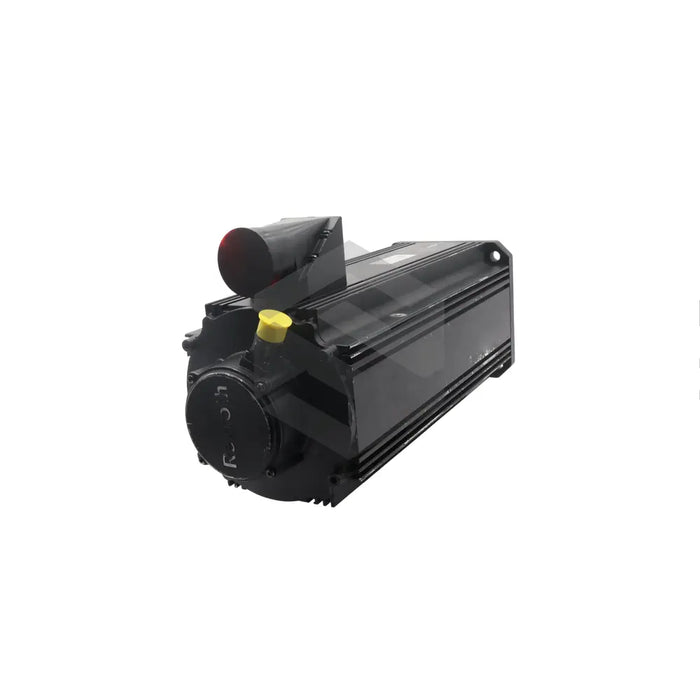

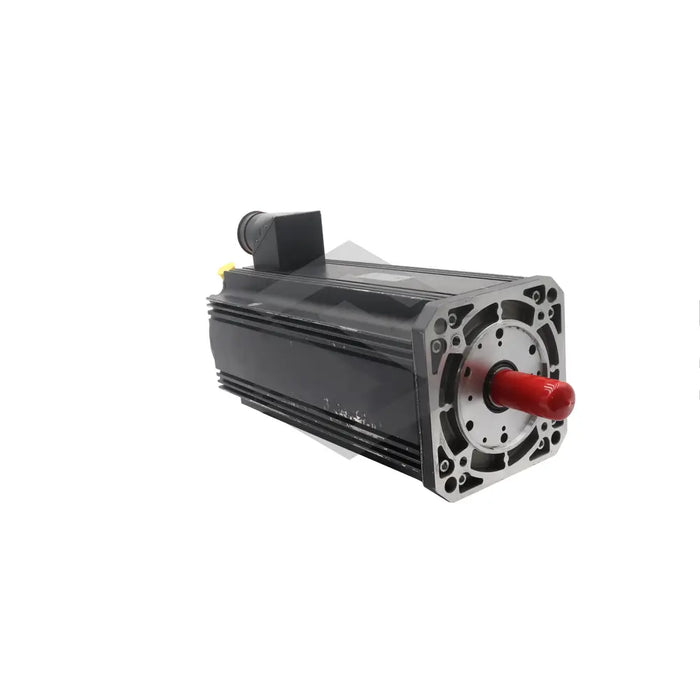

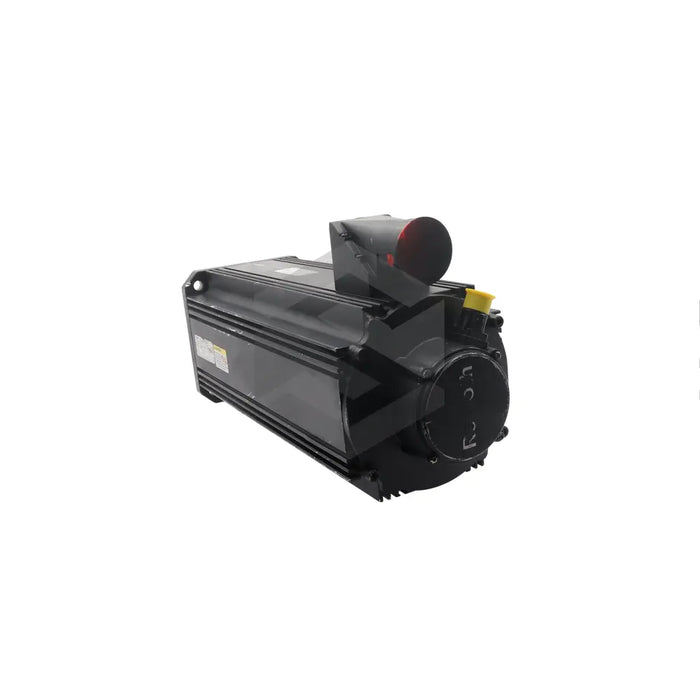

The MSK100D-0350-NN-S2-BP0-RNNN is a compact, synchronous servo motor from the MSK series by Bosch Rexroth Indramat, engineered for use in robotics, printing, paper processing, and metal-forming machinery. This motor uses a single-turn EnDat 2.1 encoder system with an optical measurement method, capturing absolute, indirect motor position within a mechanical rotation. This system eliminates the need for a separate incremental encoder, and harbors motor-specific data that enables faster startup and optimal adjustment to its drive controller. The unit's output shaft is constructed according to DIN 6885-1 with a sealing ring designed as per DIN 3760, design A. The sealed housing, coated with a high-resistance 2K epoxy resin varnish, withstands challenging environmental conditions. Compliant with EN 60529 IP 65, the housing is dustproof, touch-proof, and protected against water jets. The motor has four pole pairs, achieves 3,000 RPM, and generates a maximum torque of 185.0Nm.
