MSK101D-0200-NN-S1-BP2-NNNN

Original price $12,768.71 - Original price $12,768.71
Original price
$12,768.71
$12,768.71 - $12,768.71
Current price $12,768.71
In Stock, Shipping Varies
Request a quote

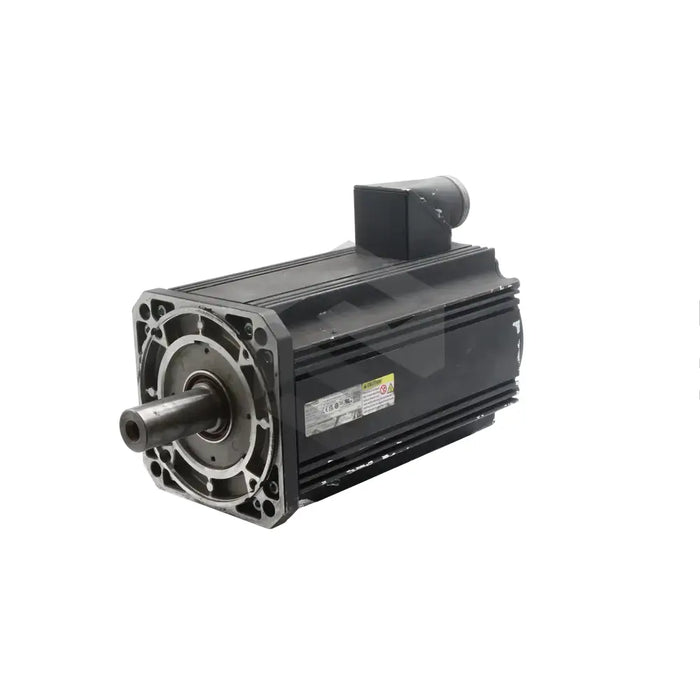

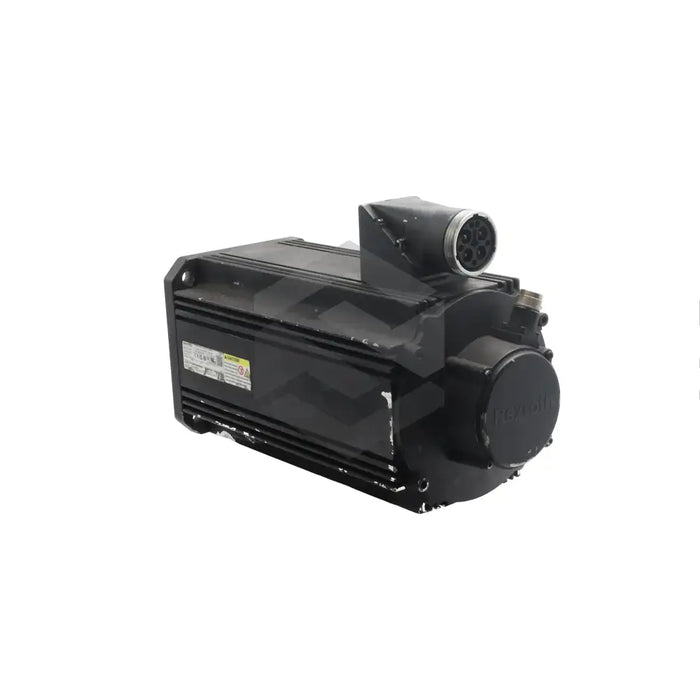

The MSK101D-0200-NN-S1-BP2-NNNN is a robust servo motor from the MSK series, crafted by Bosch Rexroth Indramat. This specific model is recognized for its compact design, high torque density, and precision due to its optical encoder systems. This servo motor assures versatility because of its unique additional options. Primarily designed for industrial applications, its cooling mechanism is via natural convection. An internal thermal sensor (KTY84 type) monitors the motor's temperature. It has an IP 65 Ingress Protection, ensuring its resistance to dust and water sprayed from different directions. The motor also utilizes an optical single-turn encoder with a Hiperface interface for precise position detection and speed control. Keyed per DIN 6885-1, the output shaft includes a shaft sealing ring abiding by DIN 3760 - design A. The motor delivers optimal performance at a maximum ambient temperature of 40°C and relative air humidity of 95%.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Series: MSK
  • Model: MSK101D-0200-NN-S1-BP2-NNNN
  • Cooling Type: Natural convection
  • Thermal Sensor: KTY84 type
  • Temperature Model: Yes
  • Ingress Protection Rating: IP 65
  • Encoder Type: Optical single-turn encoder with Hiperface interface
  • System Accuracy: ±80 angular seconds
  • Output Shaft Type: Keyway per DIN 6885-1
  • Shaft Sealing Ring: Designed according to DIN 3760 - design A
  • Maximum Ambient Temperature: 40oC
  • Relative Air Humidity: 95%
