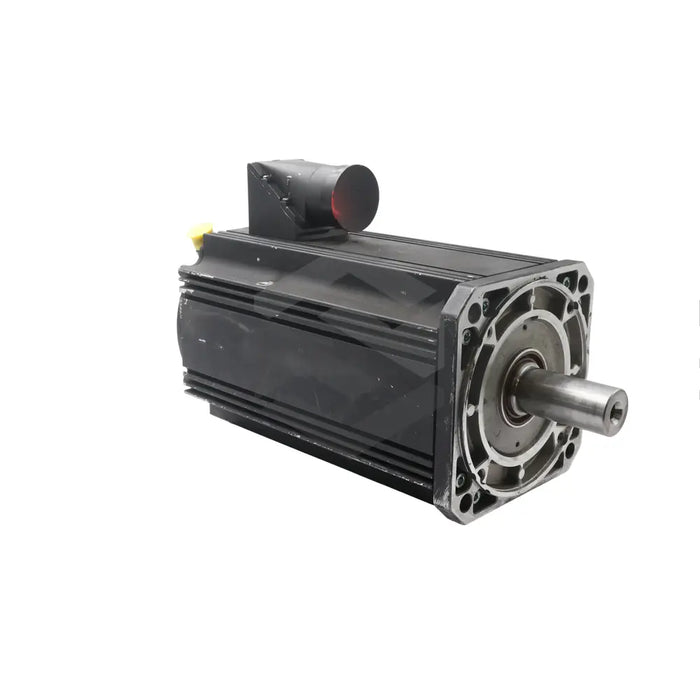

MSK101D-0300-NN-M1-BP2-NNNN

Original price $25,084.04 - Original price $25,084.04
Original price
$25,084.04
$25,084.04 - $25,084.04
Current price $25,084.04
In Stock, Ships 3 - 5 Days
Request a quote
The Bosch Rexroth Indramat's product MSK101D-0300-NN-M1-BP2-NNNN is part of the MSK 101 series motors, featuring robust design characteristics, and known for their high performance and efficiency. This motor possesses the maximum torque rating of 160 Nm, a maximum current of 30.6 Amps, and a speed of up to 4500 min-1. It functions well in temperatures between 0 to 40 degrees Celsius, further assisted by its surface cooling by convection technology. Its frame is constructed in size 101, length type D, and contains 4-pole pairs. The motor also includes superior class insulation and a 0300 winding. This product also boasts an external electrical connector, uniquely designed to promote heat dispersion. The encoder provides accurate position recording, ensuring precision movement. Bosch Rexroth Indramat, the manufacturer, is renowned for its high-quality power appliances used across various industries.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MSK 101
  • Maximum Torque Rating: 160 Nm
  • Maximum Current: 30.6 Amps
  • Maximum Speed Rating: 4500 min-1
  • Ambient Working Temperature: 0 to 40 degrees C
  • Cooling Method: Surface cooling by convection
  • Frame Size: 101 construction length type D
  • Pole Design: 4-pole pair
  • Winding Type: 0300 winding
  • Material: Lighter alloys
  • Electrical Connector Location: B-Side
  • Shaft Sealing Ring: Yes
  • Shaft Keyway: DIN 6885-1
  • Encoder Type: Enclosed Multiturn absolute optical
  • Measurement Process: Optical
  • System Accuracy: ± 80 angular-seconds
  • Motor Revolutions: More than 4096
  • Position Recording: Absolute
  • Compatibility: IndraDrive
