MSK101D-0300-NN-M1-BP3-NNNN

Original price $7,786.80 - Original price $7,786.80
Original price
$7,786.80
$7,786.80 - $7,786.80
Current price $7,786.80
Available, Shipping Varies

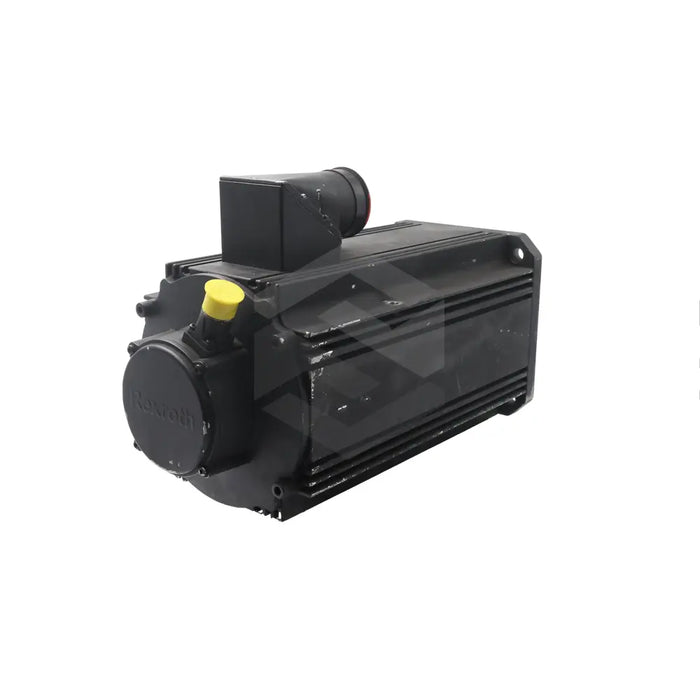

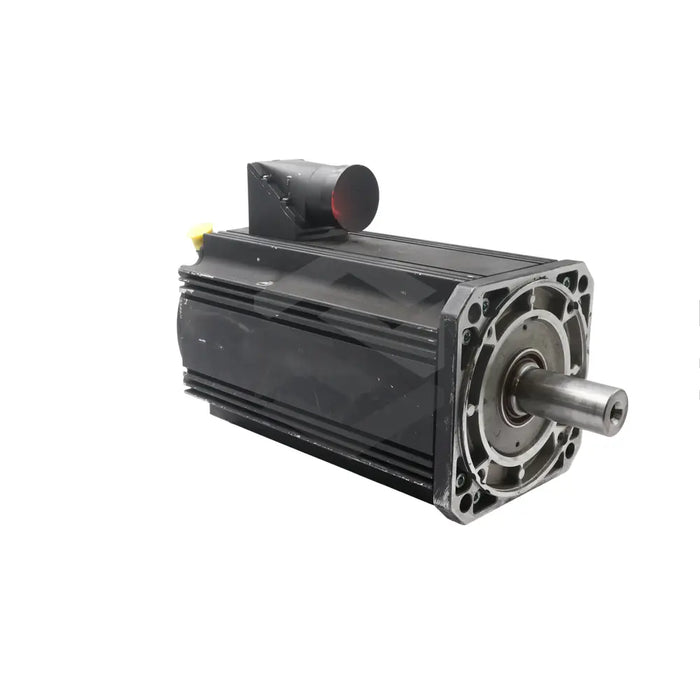

The Bosch Rexroth Indramat MSK101D-0300-NN-M1-BP3-NNNN is a servo motor in the MSK series with a standard housing and special features to render it IP65 rated. This rating signifies its resistance to dust and low-pressure water jets, which makes the motor suitable for use in harsh operating environments. Standard operating conditions include an ambient temperature of 0 to 40 degrees Celsius, installation altitude from 0 to 1000 meters, and relative humidity range of 5 to 95%. The motor is capable of producing a continuous torque and current at standstill of 50 Nm and 30.6 Amps respectively, while peak values reach 160 Nm and 137.7 Amps. This four-pole unit includes a 120 Nm rated holding brake, weighs 46.2 kg, and cools through natural convection. Additionally, it features an optical multiturn encoder with Hiperface support, a power connection on side B, and a main shaft with a keyway and a seal.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MSK Servo Motor
  • Housing Rating: IP65
  • Ambient Operating Temperature: 0 to 40 degrees Celsius
  • Operation Above 40 Degrees Celsius: Motor output derates
  • Installation Altitude: 0 to 1000 meters
  • Operation Above 1000 Meters Altitude: Motor output derates
  • Relative Humidity Range: 5 to 95%
  • Absolute Humidity Range: 1 to 29 g/m3
  • Rate of Temperature Change: Not exceeding 0.5 degrees Celsius per minute
  • Continuous Output Torque: 50 Nm
  • Continuous Current Output: 30.6 Amps
  • Peak Torque Output: 160 Nm
  • Peak Current Output: 137.7 Amps
  • Number of Pole Pairs: 4
  • Motor Brake: 120 Nm rated holding brake
  • Motor with Brake Weight: 46.2 kg
  • Cooling Method: Natural convection
  • Encoder: Optical multiturn encoder with Hiperface support
  • Power Connection Location: Side B of housing
  • Main Shaft: Includes keyway and seal
