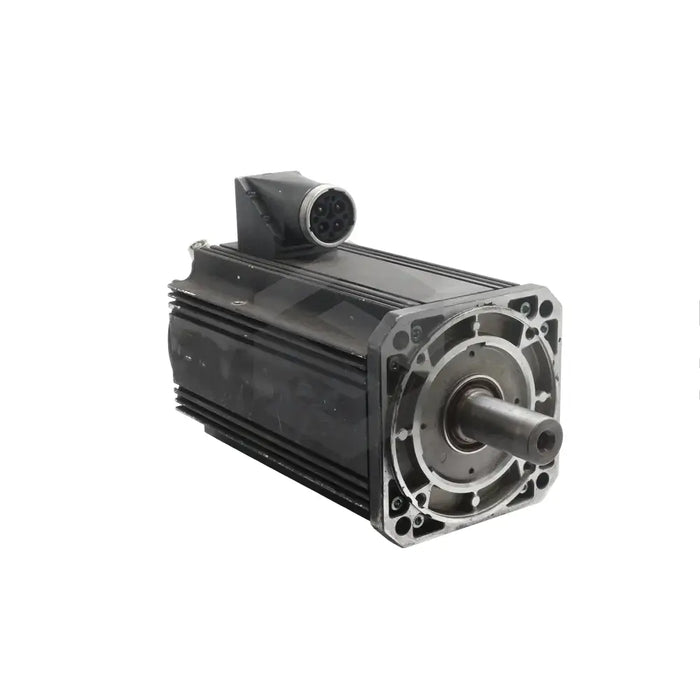

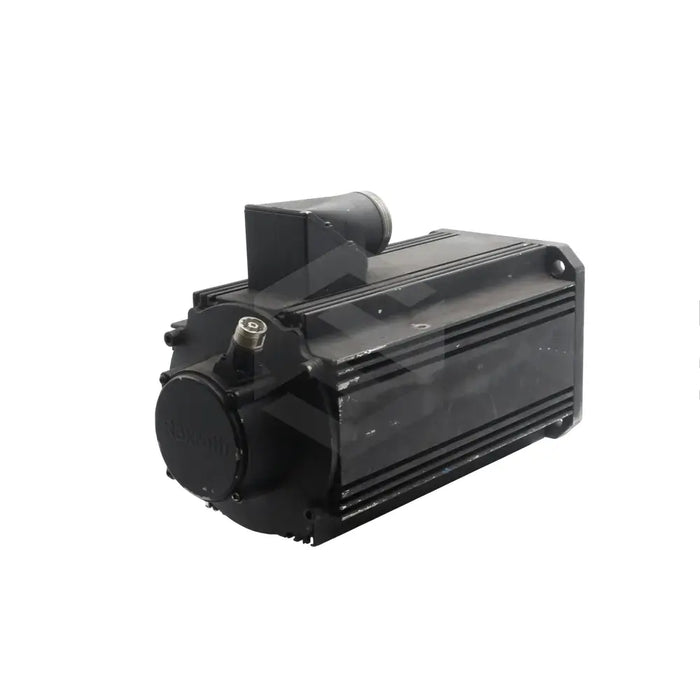

sub_series image of a MSK101D-0300-NN-M2-AP2-RNNN

MSK101D-0300-NN-M2-AP2-RNNN

by Bosch Rexroth Indramat
$17,563.13 - $17,563.13
$17,563.13
$17,563.13 - $17,563.13
$17,563.13
In Stock, Ships 3 - 5 Days
The Bosch Rexroth Indramat MSK101D-0300-NN-M2-AP2-RNNN is a high-standard synchronous motor featuring an absolute EnDat2.1 multi-turn encoder and producing sound pressure of 75 dB. Weighing 40 kg, it boasts an IP65 certification for dust and water protection and class 155 insulation. With a constant torque of 57 Nm at 100 K, it operates with a continuous current as low as 34.9 A, offering a maximum torque of 160 Nm and an inertia of 0.01380 kgm2. Requiring proper fixing for vibration prevention, it should only be operated within -20 and +80 degrees Celsius. It outputs 75 Nm of continuous torque in surface-cooled standstill using 45.9 A of current. Included is a holding brake weighing 3.8 kg, with 1.29 amp nominal current, and an output shaft with keyways. It features 4 polar pairs, a thermal time constant of 100 minutes, and its housing offers a power connector on the A side.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motors
  • Model: MSK101D-0300-NN-M2-AP2-RNNN
  • Encoder Type: Absolute EnDat2.1 multi-turn encoder
  • Noise Emission: 75 dB
  • Protection Grade: IP65
  • Insulation Value: Class 155
  • Weight: 40 kilograms
  • Constant Torque: 57 Nm at 100K
  • Continuous Current: 34.9 A minimum
  • Maximum Torque: 160 Nm
  • Moment of Inertia: 0.01380 kgm2
  • Transportation Temperature between: -20 and +80 degrees Celsius
  • Standstill Current Consumption: 45.9 A
  • Standstill Continuous Torque: 75Nm
  • Housing Power Connector: A side
  • Holding brake weight: 3.8 kilograms
  • Nominal Current of brake: 1.29 amps
  • Output Shaft: With keyways
  • Brake Connection Time: 53 milliseconds
  • Brake Disconnection Time: 97 milliseconds
  • Number of Pole Pairs: Four
  • Thermal Time Constant: 100 minutes
