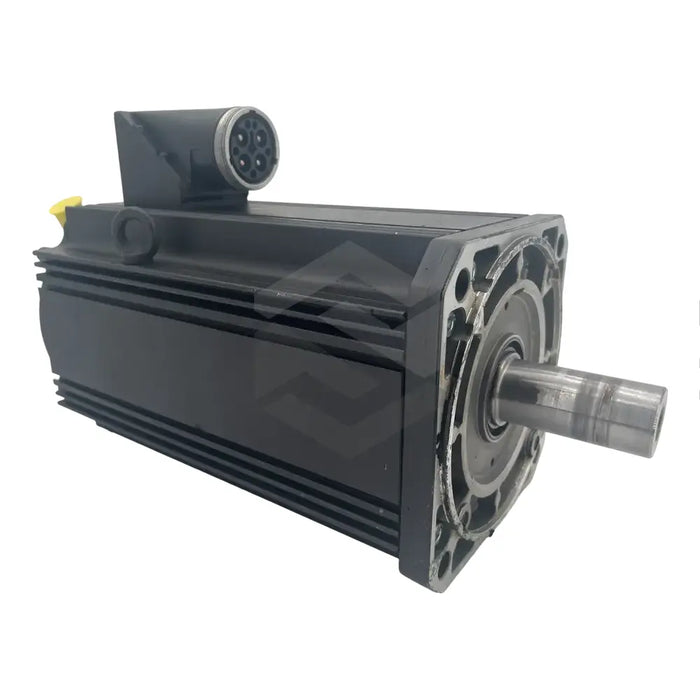

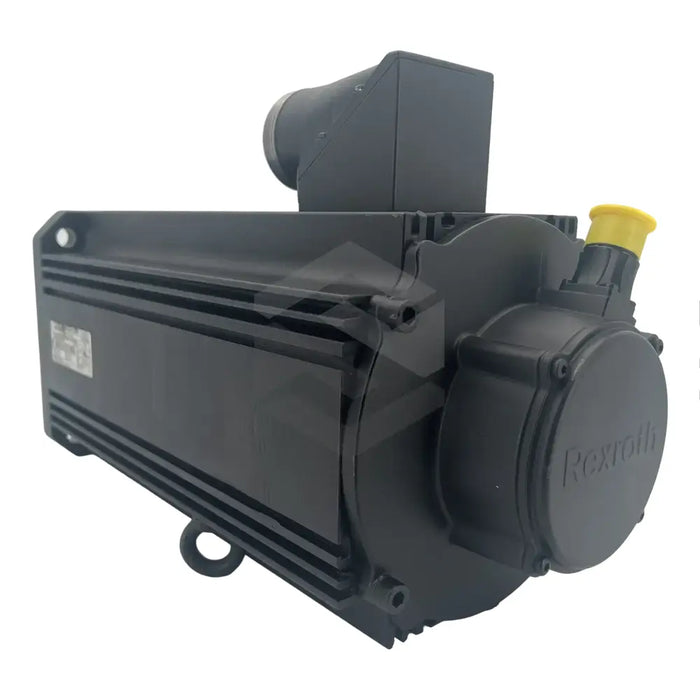

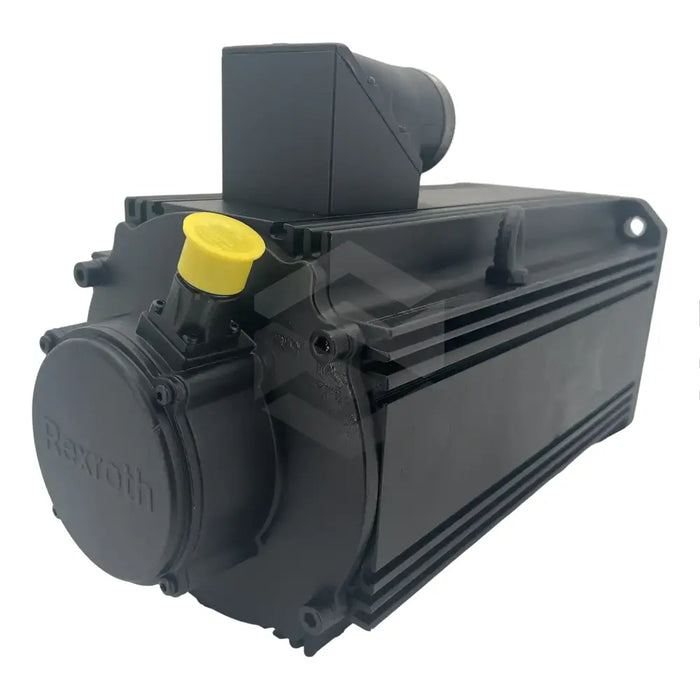

MSK101D-0450-FN-M2-AG2-RNNN

Request a quote
The MSK101D-0450-FN-M2-AG2-RNNN is a servo motor produced by Bosch Rexroth Indramat and creates a closed-loop control system through providing operational feedback to a drive controller. Equipped with an optical multiturn encoder, using an EnDat 2.1 interface, it measures parameters such as speed and torque, utilizing a supply voltage range of 3.6 to 14 volts DC. An additional feature is the electrically-released holding brake, which is activated by a 24 volts DC signal, preventing unintended shaft rotation. The motor has a smooth shaft and housed with increased concentricity and run-out features. It utilizes three cooling methods, primarily liquid cooling, requiring a flow rate of 2 liters per minute. Power is supplied through a cable connected to side A of the motor housing. Trained personnel are required for installation to avoid errors.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Servo Motor
  • Product Model: MSK101D-0450-FN-M2-AG2-RNNN
  • Encoder Type: Optical Multiturn Encoder
  • Encoder Interface: EnDat 2.1
  • Maximum Current Consumption of Encoder: 250 milliamps
  • Supply Voltage Range of Encoder: 3.6 to 14 Volts DC
  • Break Type: Electrically-released Holding Brake
  • Brake Release Voltage: 24 Volts DC
  • Shaft Type: Smooth
  • Housing Design: Increased concentricity and run out
  • Power Cable Connection Location: Side A of Motor Housing
  • Cooling Method: Liquid Cooling
  • Minimum Coolant Flow Rate: 2 liters per minute
