MSK101D-0450-NN-M1-BP2-NNNN

Original price $15,772.37 - Original price $15,772.37
Original price
$15,772.37
$15,772.37 - $15,772.37
Current price $15,772.37
Available, Shipping Varies
Request a quote

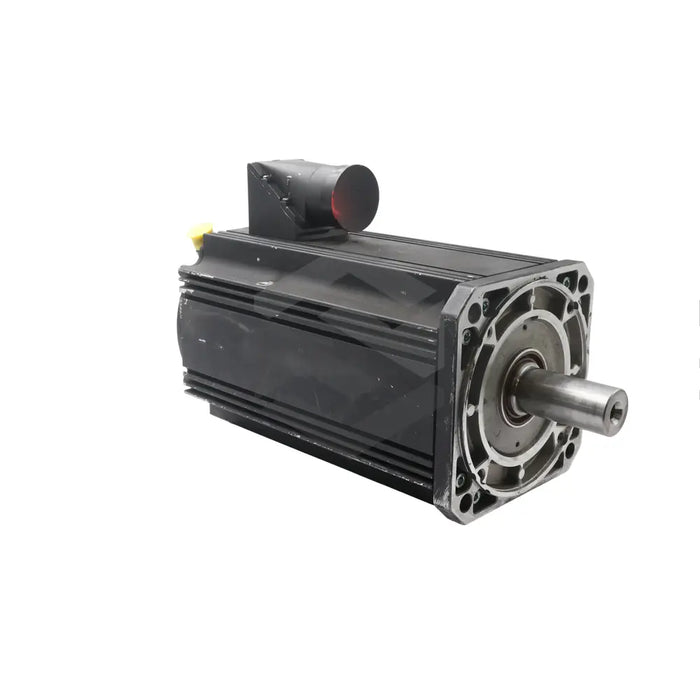

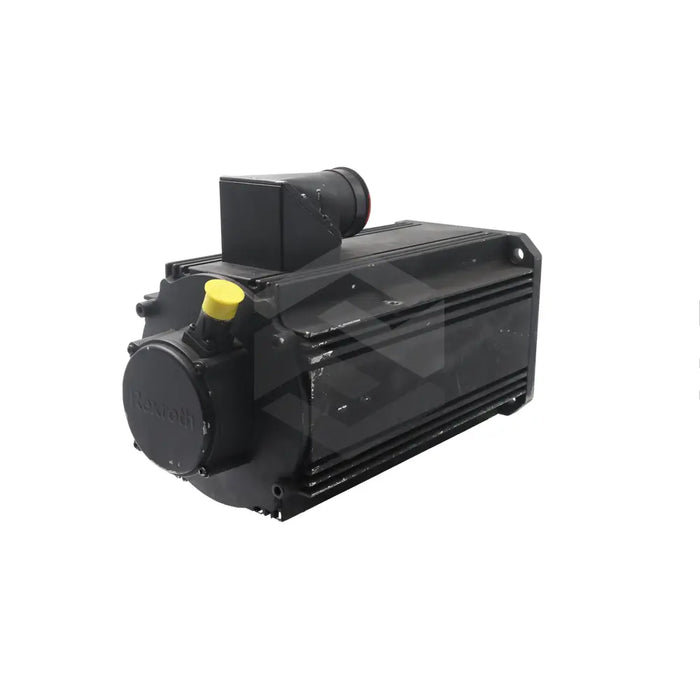

The MSK101D-0450-NN-M1-BP2-NNNN, a reputable product from Bosch Rexroth Indramat, is a synchronous motor best known for its efficiency and cost-effectiveness. This model features a continuous torque rating of 57 Nm at 100 K and a continuous current of 50.6 A. With a winding resistance of 0.10 ohms and a constant torque of 1.32 Nm/A, it also has a 70 Nm holding brake with a 53 ms connection and 97 ms disconnection time. Equipped with a sealing ring on the output shaft keyways, it prevents lubricants from infiltrating and enhances thermal diffusion through surface cooling. The motor also boasts an optimal operating temperature range of 0 -+40°C, and a thermal time constant of 100 minutes. Incorporating an internal temperature sensor and absolute multi-turn hiperface encoder for detection, it meets IP 65 protection requirements and has an insulation rating of 155.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motor
  • Model: MSK101D-0450-NN-M1-BP2-NNNN
  • Continuous Torque Rating: 57 Nm
  • Continuous Current Rating: 50.6 A
  • Winding Resistance: 0.10 ohms
  • Constant Torque: 1.32 Nm/A
  • Holding Brake Weight: 3.80 kilograms
  • Holding Torque: 70 Newton-meters
  • Connection and Disconnection periods: 53 and 97 milliseconds
  • Output Shaft Seal: Present
  • Thermal Diffusion System: Surface Cooling
  • Thermal Time: 100 minutes
  • Operating Temperature: 0 to +40 degrees Celsius
  • Constant Torque (Surface Cooling): 75 Nm
  • Constant Current (Surface Cooling): 66 A
  • Internal Temperature Sensor: Present
  • Encoder: Absolute Multi-turn Hiperface Encoder
  • Housing Protection: IP 65
  • Insulation Rating: 155
