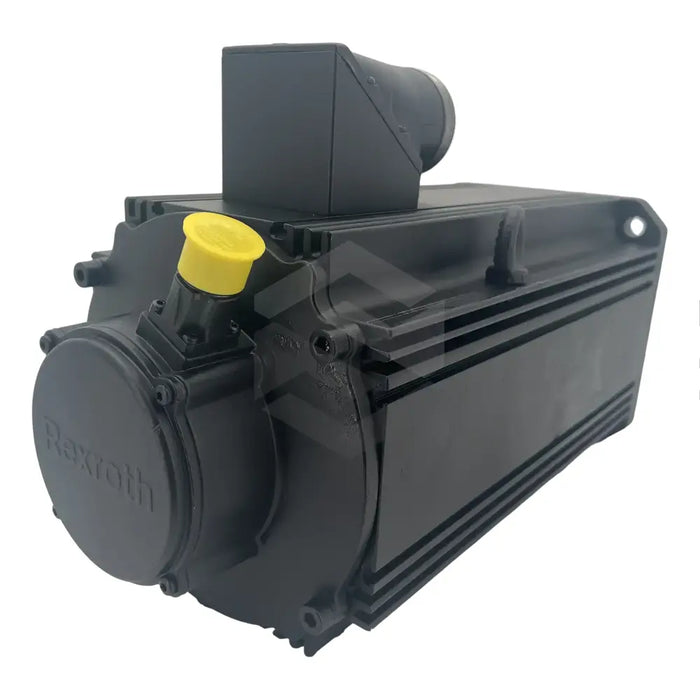

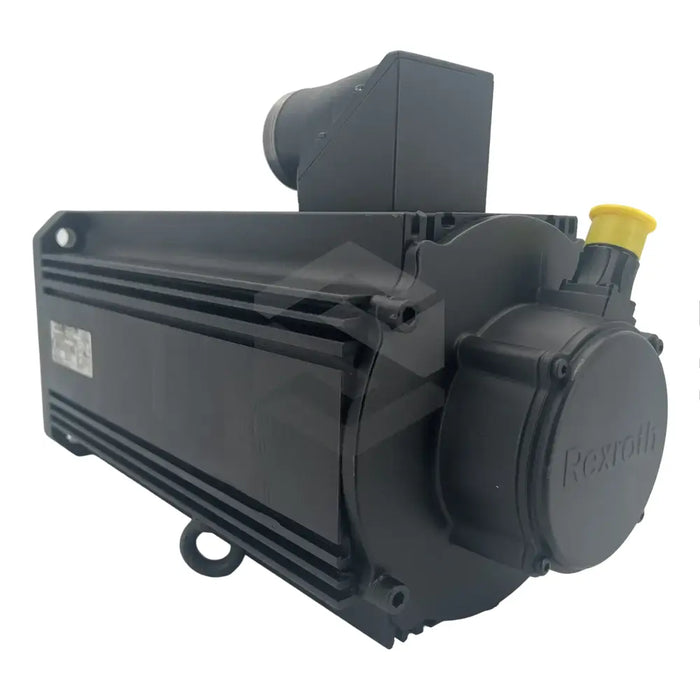

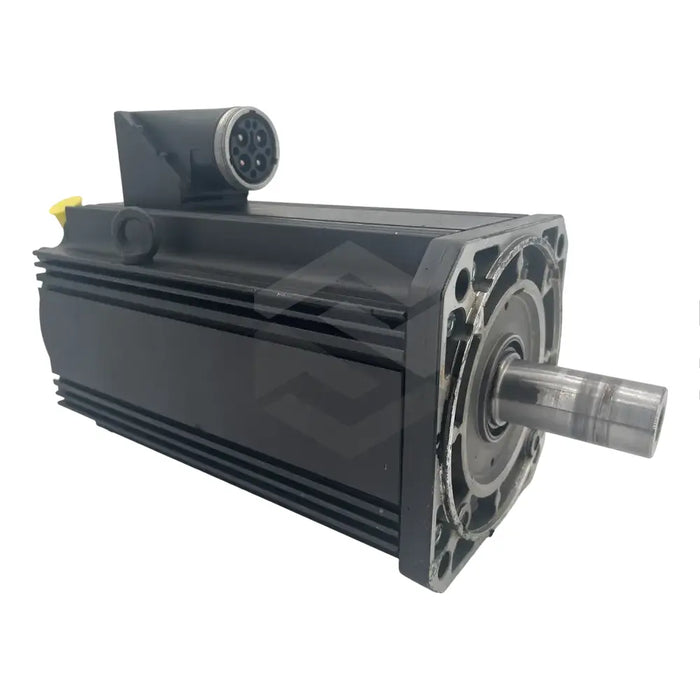

C image of MSK101D-0450-NN-M2-AG3-RNNN | Front Right

MSK101D-0450-NN-M2-AG3-RNNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MSK101D-0450-NN-M2-AG3-RNNN is an innovative, high-performance synchronous motor brought to you by Bosch Rexroth Indramat. Maintaining a constant torque output of 57 Nm and current consumption of 50.6 A at 100 K, the motor incorporates an absolute EnDat2.1 encoder for accurate positioning and speed control. Designed with a plain output shaft and A-side power connection, it exhibits a voltage constant of 81 V/min-1 and torque constant of 1.32 Nm/A. The motor's operational speed caps at 6000 rpm, producing a maximum torque of 160 Nm. It includes a 120 Nm holding brake for reliable performance, with connection and disconnection times being 80 and 150 ms, respectively. Built to withstand temperatures between 0 to 40 degrees Celsius, the motor is IP65 certified and boasts a class 155 insulation, protecting it against dust and water. With four polar pairs and a thermal time constant of 100 minutes, the motor weighs 40 kg and has a maximum installation height of 1000 meters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

Synchronous motors

Model

MSK101D-0450-NN-M2-AG3-RNNN

Constant Torque

57 Nm

Constant Current Consumption

50.6 A

Output Shaft

Plain

Power Connection Location

A-side

Voltage Constant

81 V/min-1

Torque Constant

1.32 Nm/A

Maximum Speed

6000 rpm

Maximum Torque Production

160 Nm

Operating Temperature Range

0 to +40 degrees Celsius

Holding Brake

120 Nm

Holding Brake Connection Time

80 ms

Holding Brake Disengagement Time

150 ms

Protection Certification

IP65

Insulation Class

155

Torque at 60K

50 Nm

Current at 60K

41.7 A

Coil Inductance

1.700 mH

Weight

40 kg

Encoder

Multi-turn absolute EnDat2.1

Winding Resistance

0.10 ohms

Transport Temperature Range

-20 degrees Celsius and +80 degrees Celsius

Maximum Installation Height

1,000 meters

Number of Polar Pairs

Four

Thermal Time Constant

100 minutes
