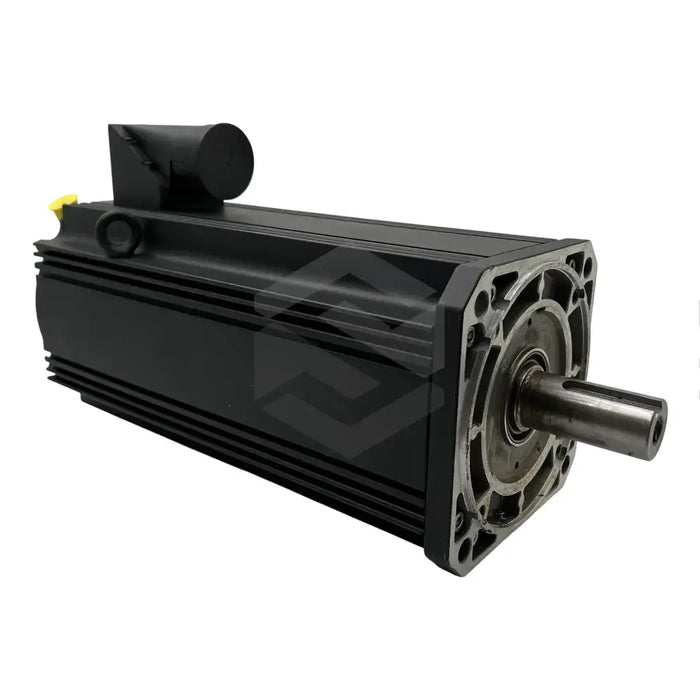

C image of MSK101E-0200-FN-M1-AG3-NNAN | Front Right

MSK101E-0200-FN-M1-AG3-NNAN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the MSK101E-0200-FN-M1-AG3-NNAN is a high-quality synchronous motor that forms part of their IndraDyn S series. Fitted with a multi-turn hiperface optical encoder for position tracking, this 53.5kg servo motor employs a plain output shaft for torque transmission. Delivering constant torques of 70Nm at 60K, and 80.5Nm at 100K, this motor's winding inductance is 3,300mH and resistance 0.18 ohms. The motor's torque and voltage at 20°C are 2.40Nm/A and 148V/1000min-1 respectively. With a maximum rotational speed of 3500 RPM, sound pressure level of 75dB, and a holding brake of 120Nm at 1.46A, the motor can produce a maximum of 231Nm and continuous 105 Nm torque. It also features an insulation rating of class 155, IP65 certification, and liquid cooling system. It functions optimally between 0 and +40 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MSK101E-0200-FN-M1-AG3-NNAN

Winding Inductance

3300 mH

Winding Resistance

0.18 ohms

Encoder Type

Multi-turn hiperface optical encoder

Output Shaft Type

Plain output shaft

Voltage Constant at 20°C

148 V/1000min-1

Torque Constant at 20°C

2.40 Nm/A

Continuous Torque at 60K

70 Nm

Continuous Torque at 100K

80.5 Nm

Weight

53.5 kilograms

Family Series

IndraDyn S servo motors

Maximum Rotational Speed

3500 RPM

Power Connector Location

A-side

Polar Pairs

Four

Sound Pressure Level

75 decibels

Holding Brake

5.8-kilogram with holding torque of 120 Nm

Nominal Current of Brake

1.46 A

Maximum Torque Rating

231 Nm

Continuous Torque Rating

105 Nm

Operating Temperature

0 to +40 degrees centigrade

IP Certification

IP65

Insulation Rating

Class 155

Temperature Sensor

Yes

Thermal Time Constant

100 minutes.
