MSK101E-0200-FN-S1-AP0-NNNN

Original price $21,840.00 - Original price $21,840.00
Original price
$21,840.00
$21,840.00 - $21,840.00
Current price $21,840.00
Available, Shipping Varies
Request a quote

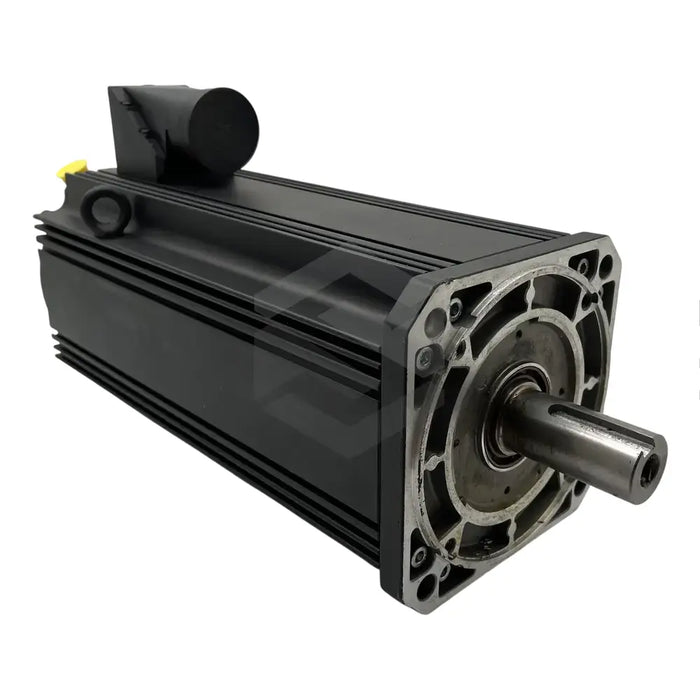

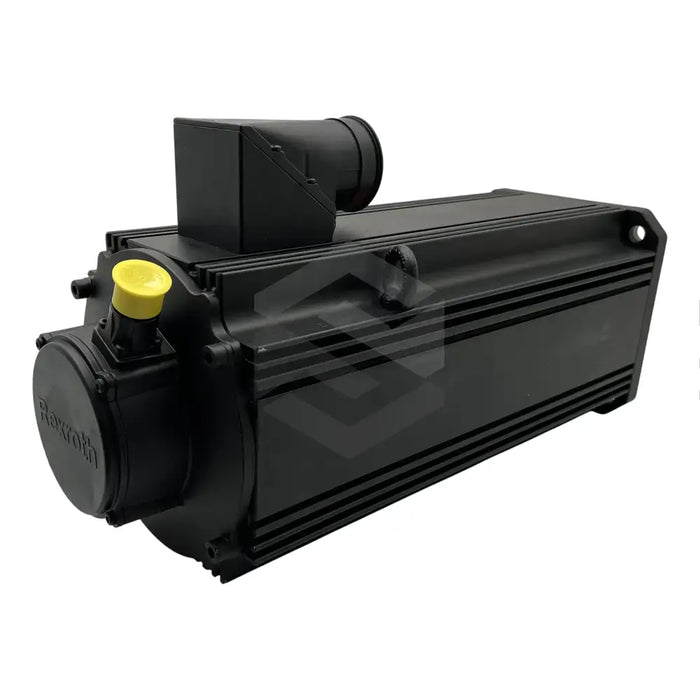

The MSK101E-0200-FN-S1-AP0-NNNN is a servo motor from Bosch Rexroth’s IndraDyn S line. This MSK series motor is compact and known for its high torque density and precise encoder systems, making it well-suited for machine tools and robotics. Notably, the model features a single-turn absolute encoder with data memory for reliable startup and easy adaptation to the drive controller. It offers a system accuracy of ±80 angular seconds and generates a maximum torque of 231.0Nm. With an IP65 rating, it assures dust and waterproof operation, even in harsh industrial environments. The motor uses liquid cooling which is ideal for handling extreme loads and continuous start-stop operations. Operating at a maximum current of 67.1A, it includes two independent temperature monitoring systems for protection against thermal overload. Its output shaft comes with a keyway per DIN 6885 and a shaft sealing ring designed according to DIN 3760 - Design A.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: IndraDyn S
  • Product Family: MSK Series
  • Product Model: MSK101E-0200-FN-S1-AP0-NNNN
  • Encoder Type: Single-turn absolute encoder
  • Encoder Accuracy: ±80 angular seconds
  • Pole Pairs: 4
  • Maximum Torque: 231.0Nm
  • Cooling Method: Liquid cooling
  • Maximum Current: 67.1A
  • Housing Protection Rating: IP 65
  • Shaft Design: Keyway and shaft sealing ring (DIN6885 and DIN3760 - Design A)
  • Temperature Monitoring Systems: KTY84 thermal sensor in windings and independent secondary system
  • Usage Environment: Harsh industrial, start-stop operations with high repetition rates.
