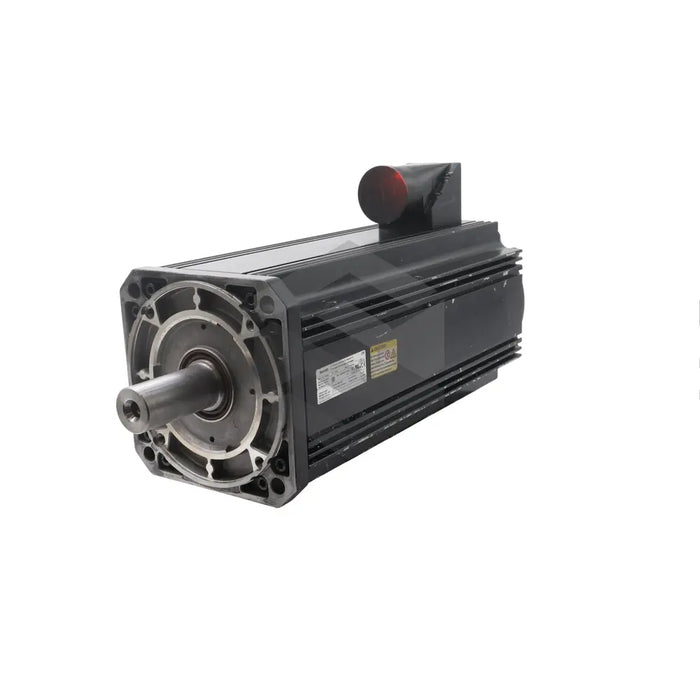

C image of MSK101E-0200-NN-S1-AP0-NNNN | Main (Front Left)

MSK101E-0200-NN-S1-AP0-NNNN

by Bosch Rexroth Indramat
$19,673.60 - $21,640.96
$19,673.60
$19,673.60 - $21,640.96
$19,673.60

In Stock, Ships 1 - 3 Days

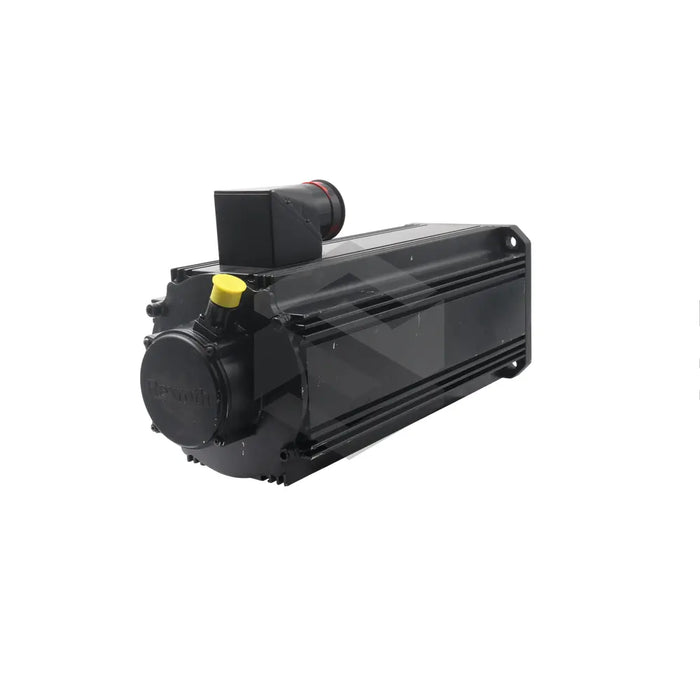

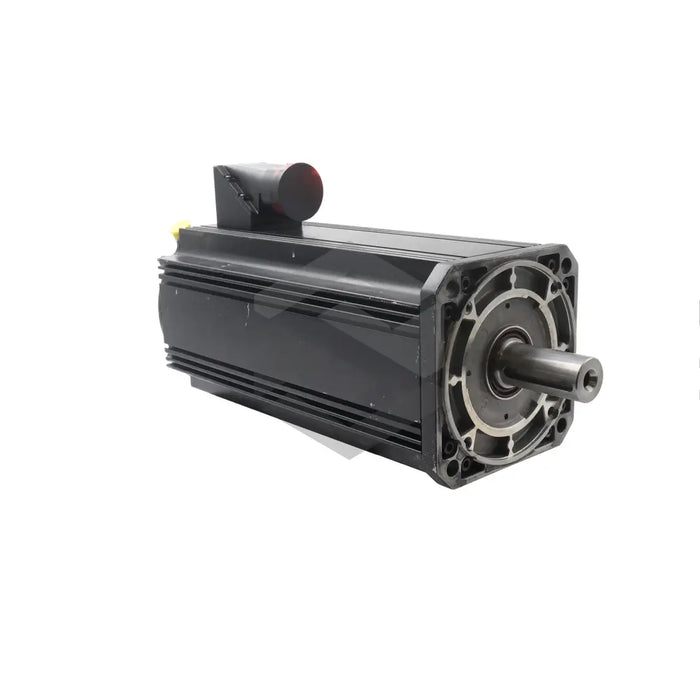

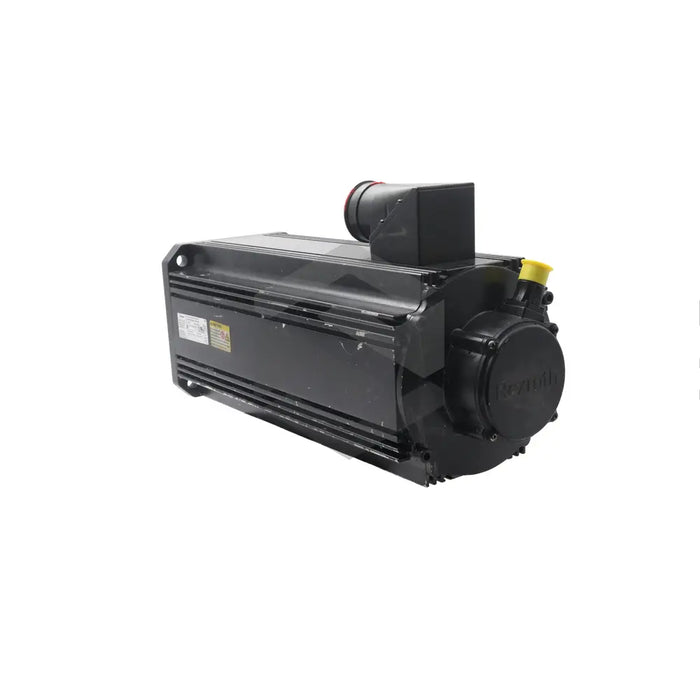

The MSK101E-0200-NN-S1-AP0-NNNN, engineered by Bosch Rexroth Indramat, is a top-ranked AC synchronous servomotor widely used in various robust industrial applications such as robotics and packaging material assembly. This large-scale member of the MSK motor series has a flange size of 192mm and centering diameter of 180mm, and weighs 53.5kg without a holding brake. It has been designed to handle heavy-duty applications. Standing still, the motor can generate an impressive torque of 70Nm and can increase to a maximum torque capacity of 231Nm with a current of 144.5A. The motor can reach a speed of 3500 min -1, which is speedy for its size and torque output. It cools naturally and uses a single-turn Hiperface optical encoder for positional feedback. The keyway-design shaft doesn't feature a holding brake, and the motor's electrical and encoder connections face upwards, making them easily accessible in vertical installations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

AC Synchronous Servomotor

Model

MSK101E-0200-NN-S1-AP0-NNNN

Application

Industrial applications (robotics, packaging and material assembly, etc.)

Flange Size

192mm

Centering Diameter

180mm

Weight

53.5kg (without holding brake)

Continuous Torque

70Nm

Effective Current Value

32.1A

Maximum Performance Current

144.5A (RMS)

Maximum Torque Capacity

231Nm

Maximum Speed

3500 min -1

Cooling Method

Natural Convection

Positional Feedback

Single-turn Hiperface optical encoder (with 128 increments)

Shaft Design

Keyway per DIN 6885-1

Holding Brake

No

Electrical and Encoder Feedback Connectors

Facing the A-side

Mounting

Vertical
