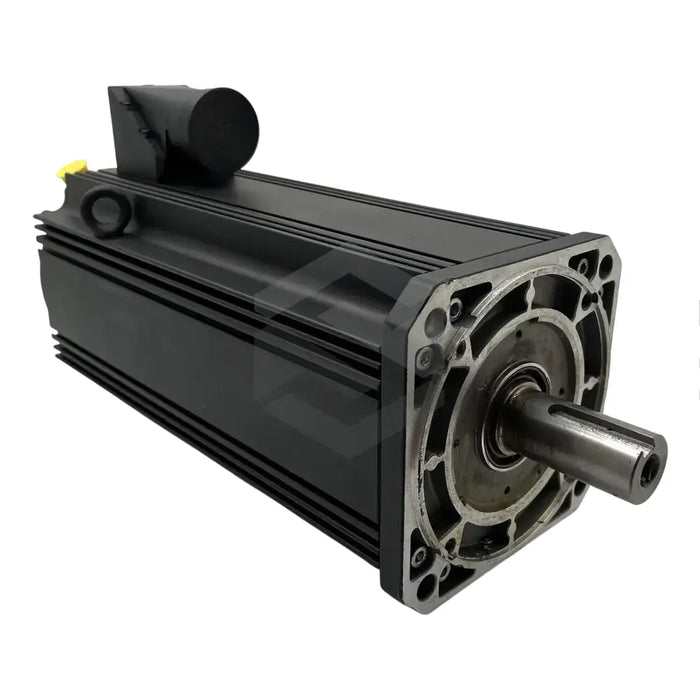

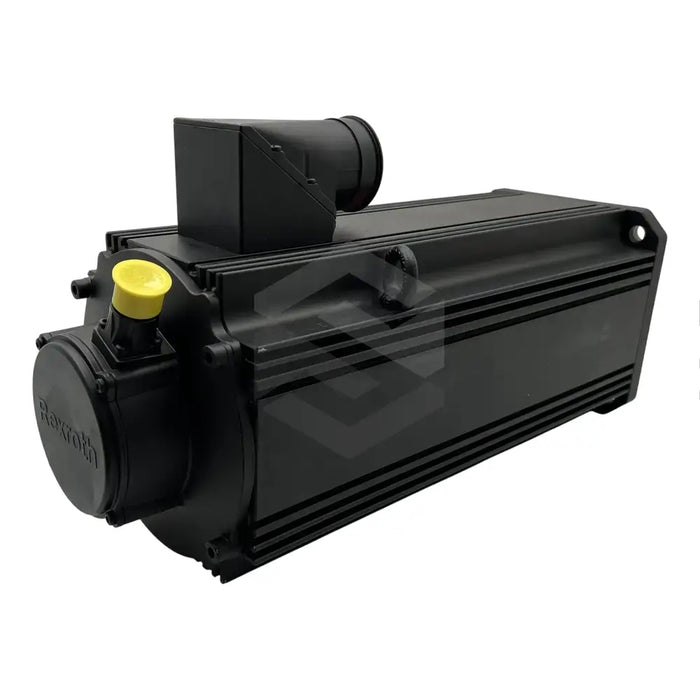

C image of MSK101E-0200-NN-S1-AP0-NVNN | Front Right

MSK101E-0200-NN-S1-AP0-NVNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the MSK101E-0200-NN-S1-AP0-NVNN is a servo motor from the MSK series, with specific applications in robotics, metal-forming machines, printing and food-processing machines. Controlled by an accompanying Bosch controller, the motor's speed and torque are measured by an internal sensor, which feeds this information into the controller. This model operates with a singleturn encoder supporting Hiperface and rated for 128 signal periods. It's designed for convection cooling but can leverage surface cooling based on load conditions. The motor housing is IP65 rated, making it dustproof and capable of withstanding low-pressure water jets. Economizing on space, it facilitates both flange and foot assembly, with the latter allowing forces to be effective only in a direction perpendicular to the mounting surface by ± 15°. With no blocking brake, it can reach a maximum speed of 4500 RPM at an ambient condition of 0 to 40 degrees Celsius and 0 to 1000 meters altitude.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MSK Series

Motor Type

Synchronous Motor

Applications

Robotics, Metal-forming machines, Printing machines, Food-processing machines

Combination Controller

Bosch Controller

Motor Functionality

Servo motor with speed and torque sensor

Encoders

Six Different Types Available

Encoder Type

Singleturn Encoder Supporting Hiperface rated for 128 signal periods

Power Connector

Dedicated Power Cable Connected to Electrical Connector on side A of Motor Housing

Cooling Method

Convection Cooling, with Optional Surface Cooling depending on Load Conditions

Motor Shaft

Shaft with Keyway and Shaft Seal

Blocking Brake

Not Included

Maximum Speed

4500 RPM

Housing

IP65 Rated Dust Proof and Safe from Low-Pressure Water Jets

Weight

Approximately 53.5 Kilograms

Ambient Conditions

0 to 40 Degrees Celsius Temperature and 0 to 1000 Meters Altitude

Assembly Options

Supports Flange Assembly and Foot Assembly

Radial Forces Direction

Perpendicular to Mounting Surface (± 15°) if Foot Assembly is Selected.
