MSK101E-0200-NN-S1-AP2-NNNN

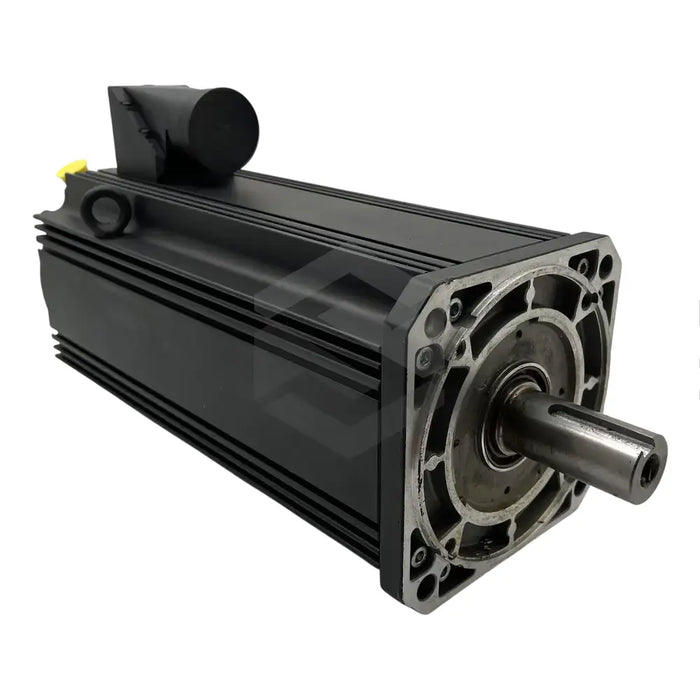

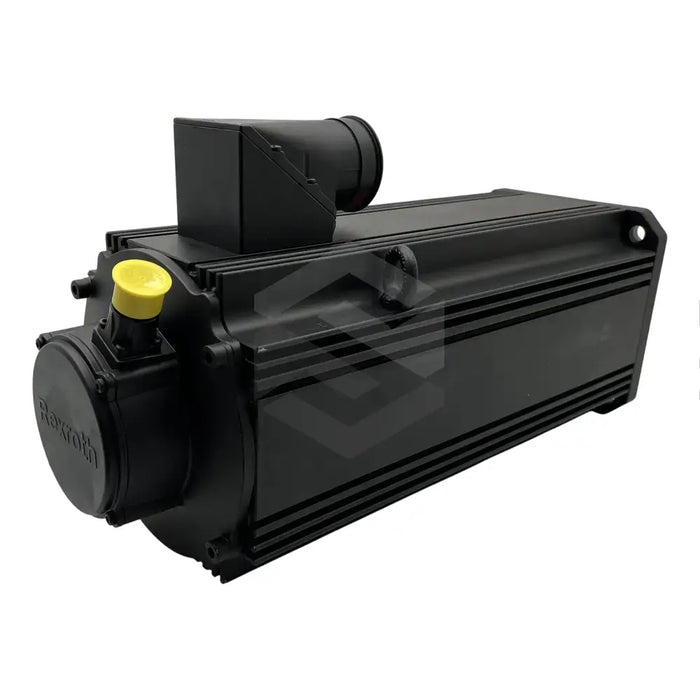

The MSK101E-0200-NN-S1-AP2-NNNN motor by Bosch Rexroth Indramat comes from the MSK product line, with a frame size of 101 and length E. This motor offers continuous torque and current outputs of 70 Nm and 32.1 Amps respectively at 60K over temperature, with natural convection. Similarly, at 100K over temperature, it provides outputs of 80.5 Nm torque and 39 Amps current. Additionally, surface cooling results in 105.5 Nm torque and 48.2 Amps current. Maximum torque and current are 231 Nm and 144.5 Amps. This four-pole pair, IP65 protected motor, achieves a maximum speed of 4500 RPM and operates at a sound pressure level of 75 dB. It is equipped with a holding brake, an optical single-turn encoder, and a keyway and sealed shaft. The motor's standard-design housing is customizable, as is the position of the electrical power connector, which comes default on side A. The thermal time constant is 100 minutes.
