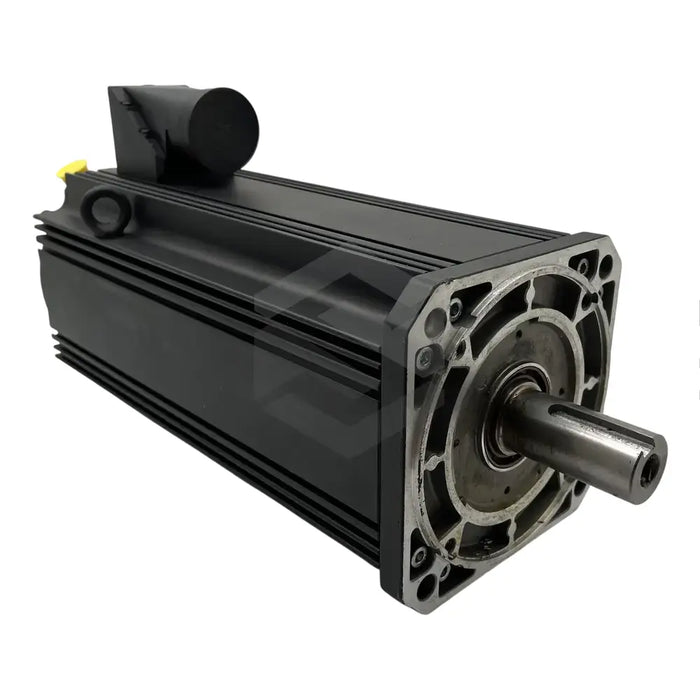

C image of MSK101E-0200-NN-S1-AP3-NNNN | Front Right

MSK101E-0200-NN-S1-AP3-NNNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MSK101E-0200-NN-S1-AP3-NNNN, a product of Bosch Rexroth Indramat, is an industrial servo motor widely used in machine tools, robotics, metal-forming machines and printing machines. The motor features a customized encoder with a maximum speed capacity of 12,000 RPM. The holding brake option has a torque of 120 Nm and allows for quick connection and disconnection times. The power connection is located on side A of the housing, coinciding with the motor shaft direction. Additionally, the shaft includes a keyway and a seal to prevent relative motion and facilitate effective torque transfer. A variety of housing designs are available, with the standard housing on this model. The motor is 521 mm long and offers a shaft diameter of 38 mm that extends 80 mm outside the main housing. Depending on operational load requirements, both natural convection and surface cooling are options for heat dissipation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Industrial Servo Motor

Model Number

MSK101E-0200-NN-S1-AP3-NNNN

Applications

Machine Tools, Robotics, Metal-Forming Machines, Printing Machines

Encoder Type

Integrated Optical Singleturn Encoder

Encoder Accuracy

±120 Angular Seconds

Max Encoder Speed

12,000 RPM

Peak Current Consumption of Encoder

60 milliamps

Supply Voltage Range for Encoder

7 to 12 Volts

Optional Brake

Yes

Brake Holding Torque

120 Nm

Voltage Rating of Brake

24 Volts DC

Current Draw of Brake

1.46 Amps

Max Connection Time of Brake

53 milliseconds

Max Disconnection Time of Brake

97 milliseconds

Power Connection Location

Side A of housing (Same Direction as Motor Shaft)

Motor Shaft Feature

Keyway and Seal

Housing Design

Standard

Motor Length

521 millimeters

Centering Diameter

180 millimeters

Shaft Diameter

38 millimeters

Motor Shaft Length outside Housing

80 millimeters

Cooling Options

Natural Convection, Surface Cooling, Liquid Cooling (optional)

Working Temperature Range

0 to 40 degrees Celsius.
