MSK101E-0300-FN-M2-BG2-RNNN

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

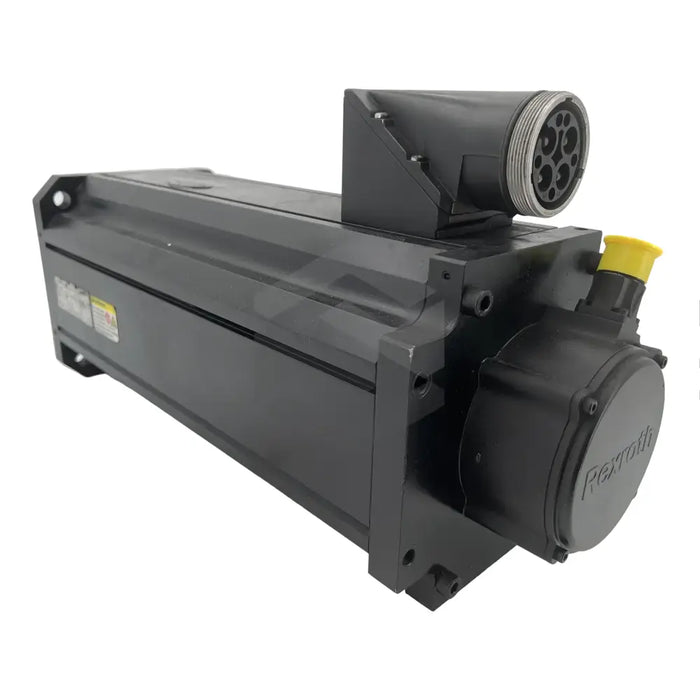

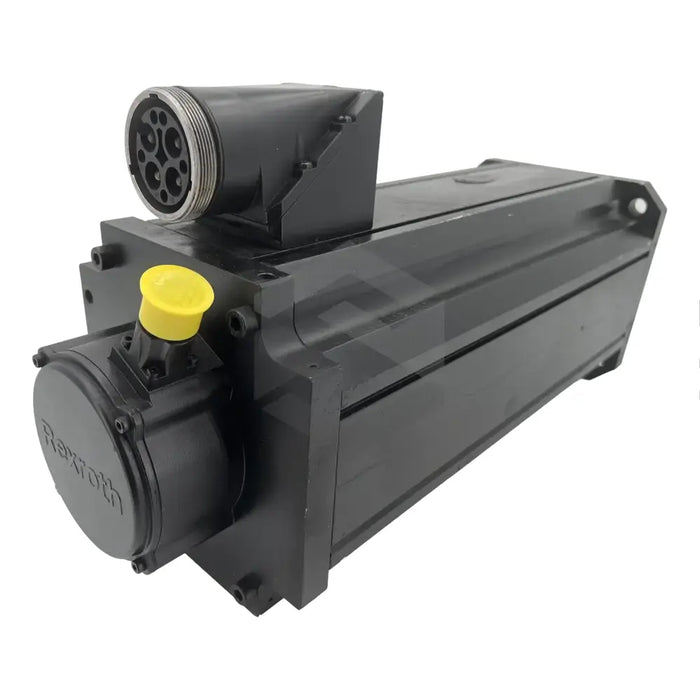

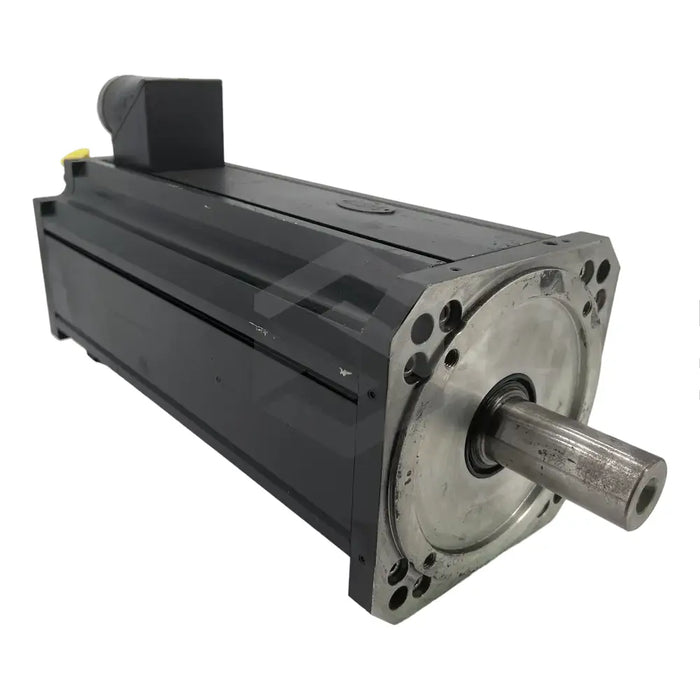

The Bosch Rexroth MSK101E-0300-FN-M2-BG2-RNNN is a synchronous servomotor known for its high run-out and concentricity as per DIN 42955 specifications. However, heat dissipation is compromised by contamination. The device is safe for transportation between -20°C and 80°C and should be stored in dry, dust-free areas. When stored or in transit, it is vital to purge all liquid coolant from the motor to prevent frost damage. The protective covers and sleeves must remain on until just before assembly to avoid damaging the motor. If in storage for over a year, a visual inspection of the device is required to ensure all parts remain undamaged. The unit's handling requires caution to prevent damage, especially during high vibrations. Appropriate lifting straps should be used when moving the motor. Always keep the device in a de-energized state during manual handling, and install it using screws and washers fitting on the flange. The unit is delivered in a specialized, military-grade packaging for safe transit.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Product Code


MSK101E-0300-FN-M2-BG2-RNNN

Product Type


Synchronous Servomotor

Specification Standards


DIN 42955

Length Code


E

Transportation Temperature Range


-20°C and 80°C

Storage Requirement


Dry and dust-free location

Assembly Preparations


Removal of protective sleeves and covers before assembly

Surface Protection


Free from ice formation, condensation or salt mist

Inspection Requirement


Visual inspection of damage-free parts after a year of storage

High Voltage Test Warning


Risk of component damage due to improperly executed tests

Encoder Memory


Stores type designation

Specific Features


Temperature class, voltage constant, maximum speed on the type plate

Handling Requirement


Avoid damage to shaft and flange

Shock Absorbers


Necessary for high vibration transit

Lifting Method


Loop lifting straps

Work Conditions


Must be in a de-energized state

Installation


Fitted with flange using screws and washers

Packaging


Custom military-grade packaging.
