MSK101E-0300-NN-M1-AP0-NNNN

Original price $15,940.00 - Original price $15,940.00
Original price
$15,940.00
$15,940.00 - $15,940.00
Current price $15,940.00
Available, Shipping Varies

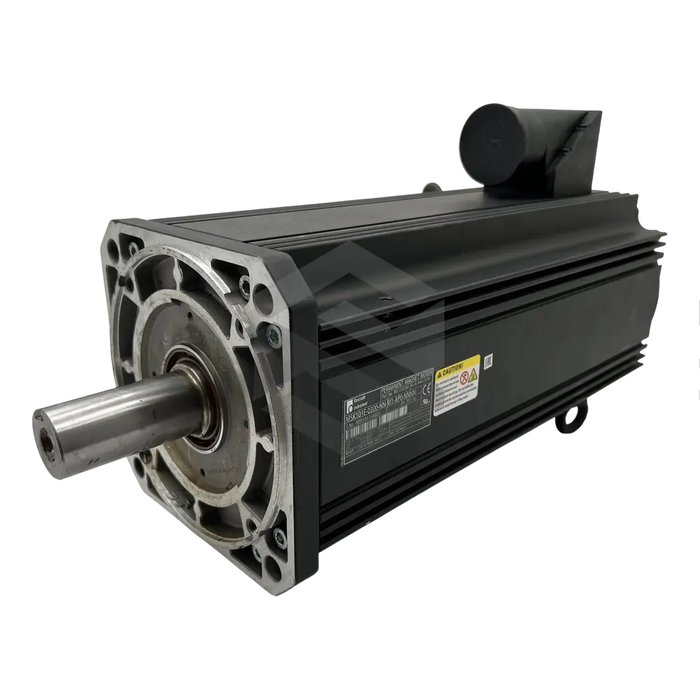

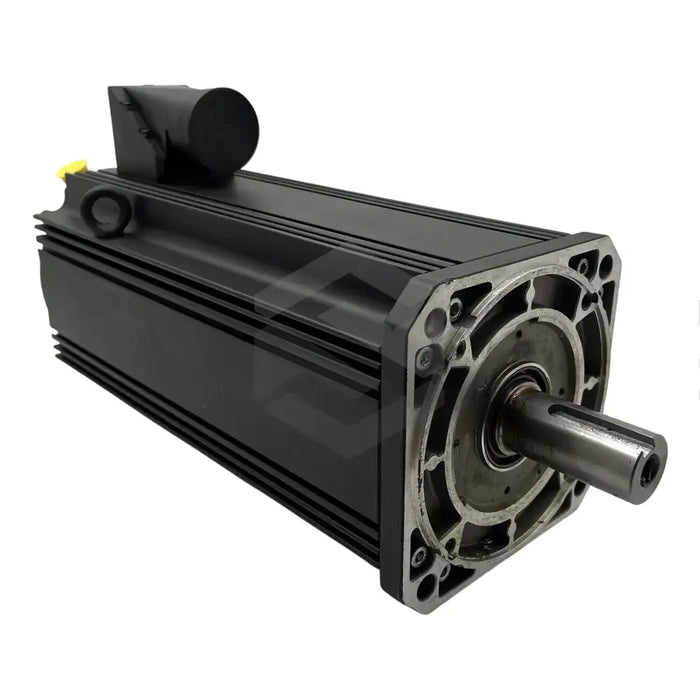

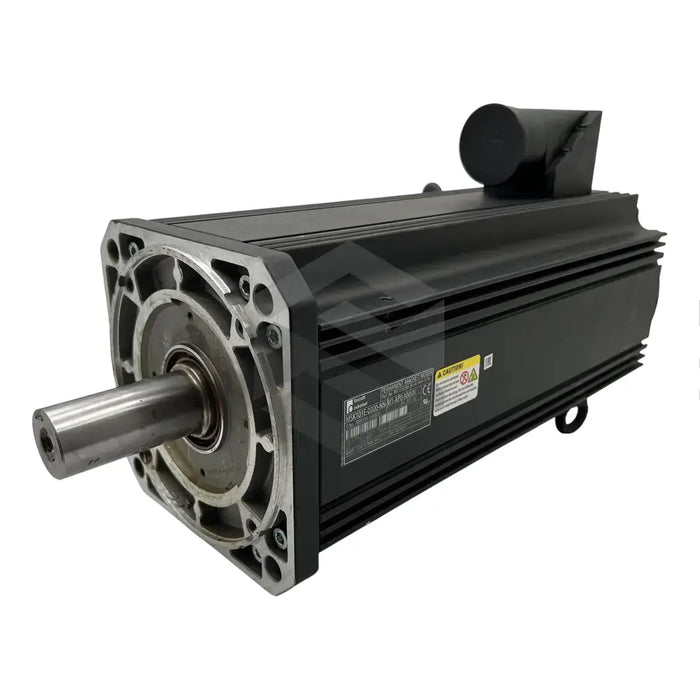

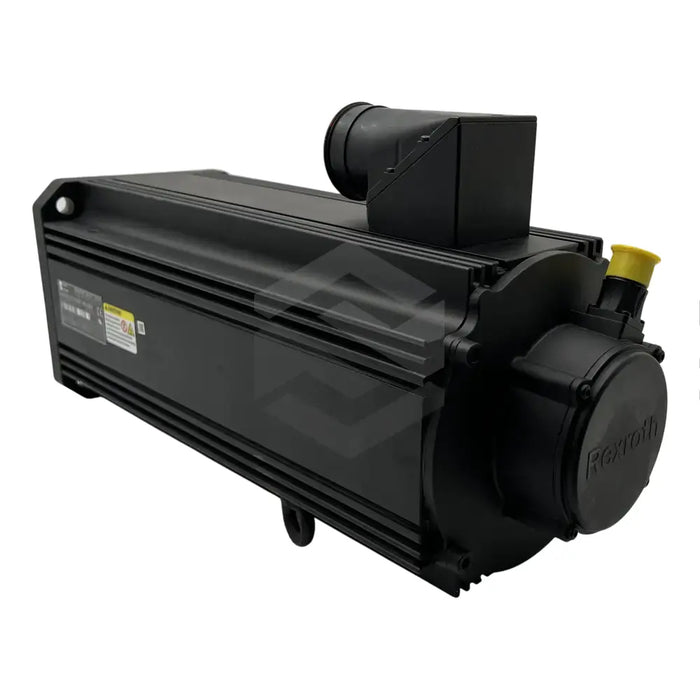

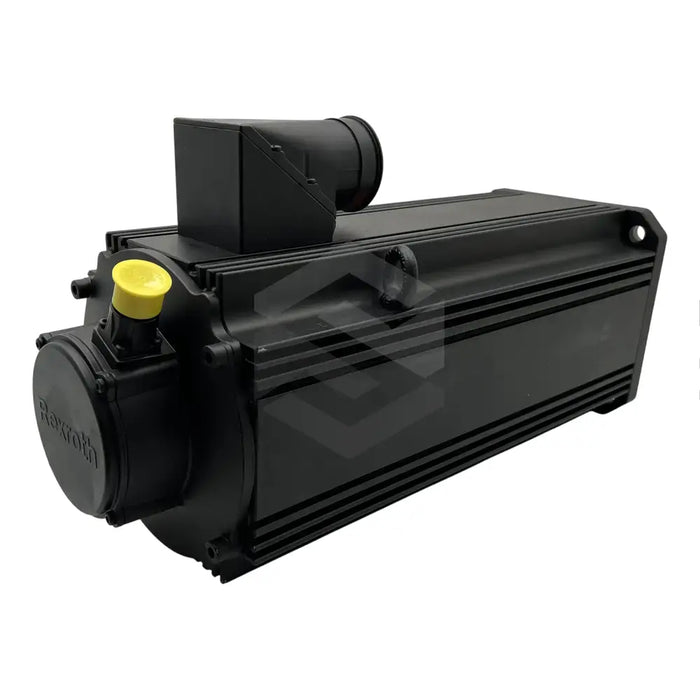

The Bosch Rexroth Indramat MSK101E-0300-NN-M1-AP0-NNNN is a part of the IndraDyn S series of synchronous servo motors renowned for their high torque capacity, speed, precision, and IP65 protection class. This robust, large construction weighing 53.5kg features a typcial housing, a total frame length of 501mm, shaft length of 80mm, a 180mm centering diameter, and 192mm flange. Its size contributes to its impressive torque generation of 70Nm at a standstill, which can occasionally overload to 231Nm. The motor uses a '0300' winding with a current capacity of 41.6A at a standstill and a maximum allowance of 187.4A. Additionally, its maximum rated speed is 4,600min-1. This unit incorporates a Hiperface multi-turn encoder for advanced performance in a closed-loop system, and it utilizes natural convection for heat dissipation, tolerating heat generation up to 155℃.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: IndraDyn S series
  • Product Model: MSK101E-0300-NN-M1-AP0-NNNN
  • Housing Type: Standard large frame
  • Weight: 53.5kg
  • Total Frame Length: 501mm
  • Shaft Length: 80mm
  • Centering Diameter: 180mm
  • Flange Size: 192mm
  • Continuous Torque at Standstill: 70Nm
  • Maximum Torque: 231Nm
  • Shaft Design: DIN 6885-1 with keyways and shaft sealing rings
  • Holding Brake: No
  • Maximum Current: 187.4A
  • Continuous Current at Standstill: 41.6A
  • Maximum Speed: 4600min-1
  • Encoder Type: Hiperface multi-turn optical encoder
  • Cooling Method: Natural convection
  • Operating Temperature: Up to 155℃.
