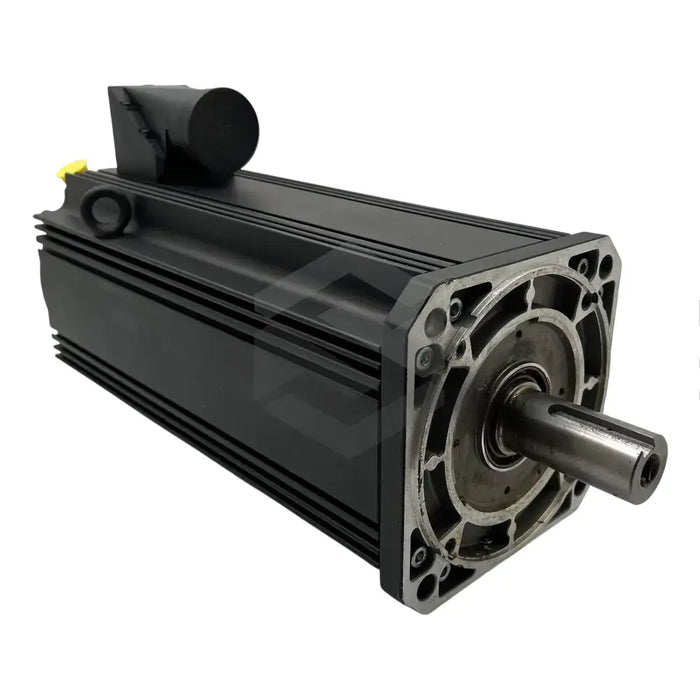

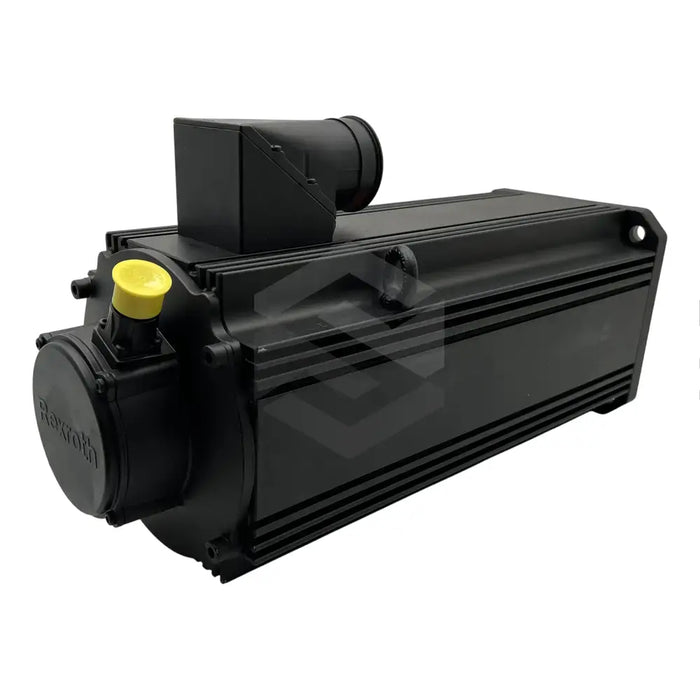

MSK101E-0300-NN-M2-AP0-RNNN
The MSK101E-0300-NN-M2-AP0-RNNN, a product of Bosch Rexroth Indramat, is a high-performing synchronous motor. A part of the IndraDyn S series, it’s designed for diverse automated applications. This model, with IP 65 protection, offers a maximum speed of 4600 RPM and showcases a wide power spectrum. Heat dissipation relies on natural convection, and the motor operates optimally between 0-40°C, requiring user manual-guided servicing. It features a 0.01380 kgm2 moment of inertia, an inbuilt temperature sensor, and the advanced multi-turn EnDat2.1 optical encoder. With a maximum torque of 231 Nm and weighing 53.5 kg, it is suitable for high torque, low weight demands. Its key characteristics also include a winding inductivity of 1.960 mH and winding resistance of 0.11 ohms. Externally, it has a keyways shaft with a sealing ring and an A-side power connection. It operates at a sound pressure level under 75 dB and bears an insulation class of 155. These parameters define its essential voltage constant at 113.8 V/1000min-1 and torque constant at 1.85 Nm/A at 20°C.
