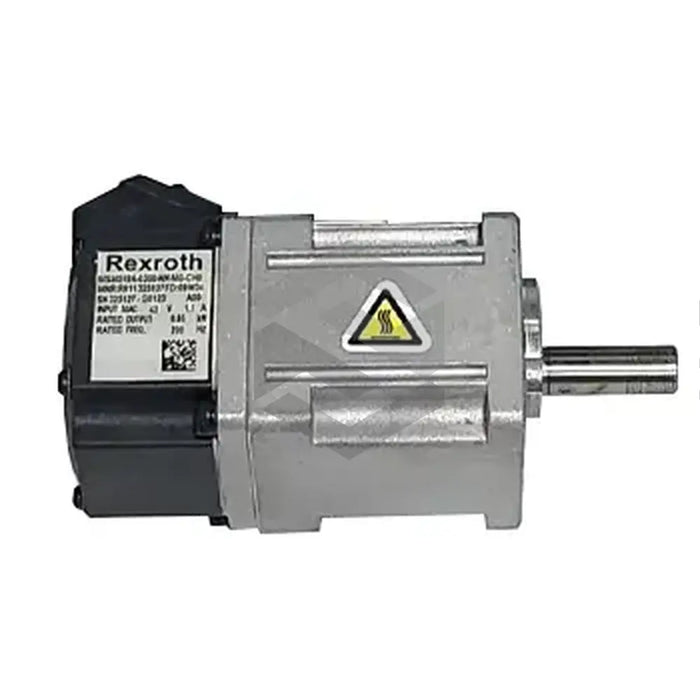

MSM019A-0300-NN-M5-ML0

Request a quote
The MSM019A-0300-NN-M5-ML0, a product of Bosch Rexroth Indramat, is a versatile motor with multiple Ethernet interfaces that support an array of Ethernet-based control systems. Weighing 0.32 kg, it includes a 0.21 kg holding brake with a torque of 0.29 Nm. At standstill, the motor delivers a maximum torque of 0.45 Nm and a continuous torque of 0.09 Nm, powered by a single-phase, 0.22 A supply. It operates optimally between 0-40 degrees Celsius, with performance declining by 2% for each additional degree beyond 40 degrees Celsius. The motor can work at altitudes up to 1000 meters for current values and 2000 meters within temperature limits. Safe operation demands a relative humidity limit of 90% and necessitates protection against fine dust and moisture condensation. The unit has an IP 20 protection category and embodies environment-friendly features, being energy-optimized and recyclable. Repair and exchange services are available for faults and damages.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product model: MSM019A-0300-NN-M5-ML0
  • Weight: 0.32 kg
  • Brake Weight: 0.21 kg
  • Holding Torque of Brake: 0.29 Nm
  • Maximum Torque: 0.45 Nm
  • Continuous Torque at Standstill: 0.09 Nm
  • Power Supply: Single Phase 0.22 A
  • Cooling System: Air Cooled (No fan or blowing unit)
  • Optimum Temperature Range: 0-40 degrees Celsius
  • Decreased Performance at: 55 degrees Celsius
  • Altitude Limit for Current Values: 1000 m
  • Altitude Limit with Temperature Control: 2000 m
  • Performance Fall per 1 Degree Above 40 C: 2%
  • Maximum Relative Humidity: 90%
  • Protection Category: IP 20
  • Recyclable: Yes
  • Repair and Exchange Services: Provided by Wake Industrial.
