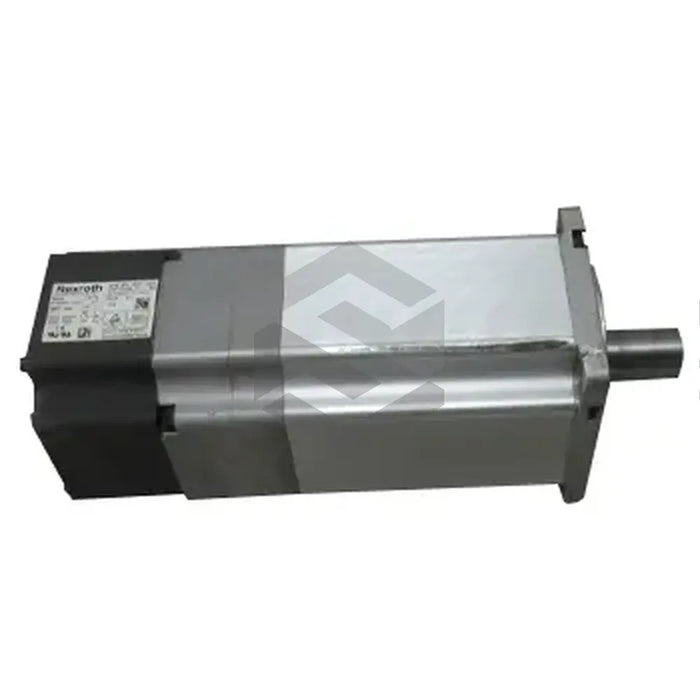

MSM040B-0300-NN-M0-CG0

Original price $2,128.15 - Original price $2,128.15
Original price
$2,128.15
$2,128.15 - $2,128.15
Current price $2,128.15
In Stock, Ships Today
Request a quote
Bosch Rexroth Indramat's MSM040B-0300-NN-M0-CG0 is a synchronous motor, positioned in the MSM product group. Operationally efficient between -20 and 80 degrees Celsius, the motor promises robust utility up to an elevation of 1000 meters above sea level. It is important to prevent icing and moisture condensation to maintain optimal functionality. It adheres to certifications like UL and CSA, suitable for NFPA 79 applications. The motor possesses a compact, dynamic design with connectors for power and encoder connections, and is safeguarded by IP54 protection. Comprising different coating materials including anodized aluminum, rubber, PVC resin, polyamide 46, and uncoated aluminum diecasting, the motor resists environmental elements and machine oil. Required space for natural conventional cooling must be provided for. The motor supports radial and axial forces of 392 and 147 respectively during operation, and certain precautions must be taken while mounting gearboxes to prevent thermal overload.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motor
  • Product Group: MSM
  • Storage Temperature Range: -20 to 60 degrees
  • Operating Temperature Range: -20 to 80 degrees
  • Maximum Installation Elevation: 1000M above sea level
  • Storage and Operation Humidity: 5 to 95%
  • Protection Category: IP54
  • Design: Compact
  • Response: Dynamic
  • Coating Materials: Anodized aluminum, Rubber, Polyvinyl chloride resin, Polyamide 46, Uncoated aluminum diecasting
  • Cooling Method: Natural Conventional
  • Mounting Positions: IM B5, IM V1, IM V3
  • Optional Encoder: Multiturn-Absolute
  • Electrical Connection: Cable Tail
  • Radial Force During Operation: 392
  • Axial Force During Operation: 147
