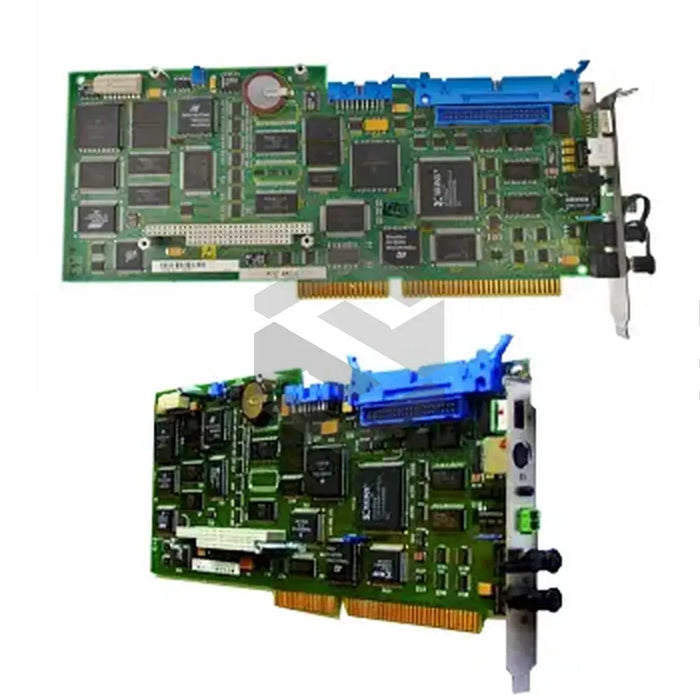

series image of MTC-P01.2-E2-A2-NN-NN-FW

MTC-P01.2-E2-A2-NN-NN-FW

by Bosch Rexroth Indramat
Request a quote
Crafted by Bosch Rexroth Indramat, the MTC-P01.2-E2-A2-NN-NN-FW CNC module offers sophisticated machine tool control within industrial automation systems. As part of the MTC 200 series, it integrates with industrial PCs via a free ISA slot. Secure communication between CNC module, the PC, and up to 8 drives is enabled by an inclusive SERCOS optical fiber interface, an ISA bus, and an Indramat local bus. Memory is supplied through a 2 MB RAM which stores operating parameters, while user data is preserved for over 6 months by an in-built rechargeable battery. DIP switch setup is required before commissioning. The module accommodates an H1 status display and S1 diagnostic button for quick error resolution. With an additional axis processor, more drives are controllable. In the event of power failure, a power fail connection saves critical data. The module operates optimally at a temperature range of +5 to +45 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MTC-P01.2-E2-A2-NN-NN-FW
  • Product Type: CNC Control Module
  • Product Family: MTC 200
  • Installation: Industrial PC
  • Communication Interface: SERCOS optical fiber, ISA bus, Indramat local bus
  • Connectivity: Up to 8 drives
  • User Data Storage: Rechargeable battery (lasts over 6 months)
  • Battery Recharge Duration: 50 hours
  • Memory: 2 MB RAM
  • Configuration: DIP switch
  • Features: H1 status display, S1 diagnosis button, Axis processor module, power fail connection
  • Compatible Controller: MTS-P01.1 SPS controller
  • Operating Temperature Range: +5 to +45 degree Celsius
