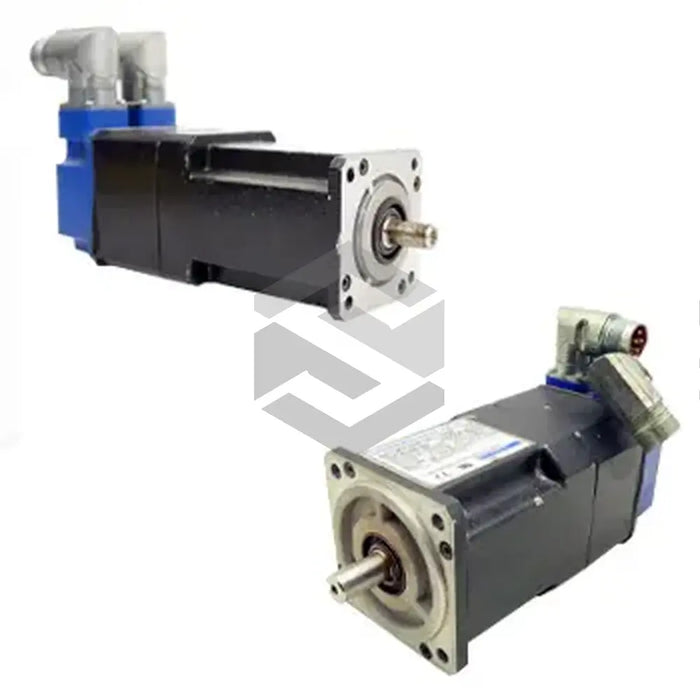

S image of MTC1506B1-E1C1

MTC1506B1-E1C1

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Kollmorgen MTC1506B1-E1C1 is a Goldline 150 XT series servo motor, possessing key features such as three stack lengths, compact size, low cogging, IP65 sealing, PTC thermistor and encoder feedback. This series is UL listed and CE compliant. The power delivered by this motor is 0.87 Horsepower / 0.65 kilowatts with a maximum and rated speed of 6000 RPM. The motor is capable of outputting a continuous torque of 1.38 Nm at 40 degrees Celsius ambient, and 1.49 Nm at 25 degrees Celsius. It boasts a peak torque of 4.67 Nm. The MTC1506B1-E1C1 supplies feedback through a 2048 LPR encoder and has 24 V DC integrated holding brake. Its frame size is 60 millimeters and uses a standard shaft seal to ensure protection against external contaminants. The unit's dimensions are 205mm (length) x 60mm (width) x 115mm (height), making it robust enough for installations near operating machinery.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Series

Goldline 150 XT

Features

3 stack lengths, compact size, low cogging, IP65 sealing, 360-degree rotatable connectors, PTC thermistor, encoder feedback

Certificates

UL listed, CE compliant

Compatible Controllers

Servostar CD digital amplifiers

Power

0.87 Horsepower / 0.65 kilowatts

Rated Speed

6000 RPM

Maximum Speed

6000 RPM

Continuous Motor Torque at 40 degrees Celsius

1.38 Nm

Continuous Motor Torque at 25 degrees Celsius

1.49 Nm

Peak Torque

4.67 Nm

Holding Brake

Integrated, operates at 24 Volts DC

Frame Size

60 millimeters

Magnet Stack Length

6

Feedback

Delivered from a 2048 LPR encoder

Connectors

Power and feedback connectors can be rotated 90 degrees in either direction

Shaft

Fitted with a standard seal

Protection Rating

IP65

Motor Housing Length

205 millimeters

Motor Housing Width

60 millimeters

Motor Housing Height

115 millimeters
