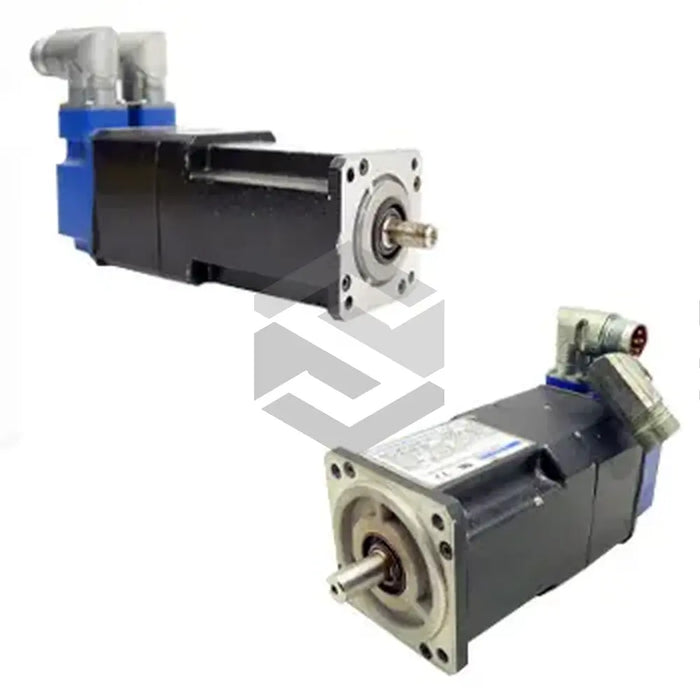

S image of MTC302B1-M2C1

MTC302B1-M2C1

by Kollmorgen
$6,450.00 - $7,095.00
$6,450.00
$6,450.00 - $7,095.00
$6,450.00
The Kollmorgen MTC302B1-M2C1 is a servo motor designed to offer low cogging and optimal torque for slow speed applications and high dynamic responses thanks to its patented interior magnet design. It provides multiple options including varying stack lengths, an integrated brake, swivel connectors, and encoder or resolver feedback. The MTC302B1-M2C1 model boasts a frame and magnet stack length of 90mm, motor winding code B, and an integrated 24-Volt DC brake. It has a NEMA 34 mounting option and a main motor shaft with a sealing design for oil leakage prevention and contaminant ingress. Protected by an IP65-rated housing, it uses 90-degree swivel receptacles for connector needs. Compatible with SERVOSTART digital drives, it has an output power of 0.76 kilowatts or 1.02 HP, and a maximum speed of 6000 RPM. It weighs 3.6 kilograms in total and is an 8-pole motor with 90mm x 90mm mold housing dimensions.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

Servo Motor

Model

MTC302B1-M2C1

Design

Interior Magnet

Motor Frame Size

30X

Frame Length

90mm

Magnet Stack Length

2

Winding Code

B

Brake

24 Volts DC

Mounting Option

NEMA 34

Shaft Seal

Included

Protection Rating

IP65

Connector

90 degrees swivel receptacles

Compatible Drives

SERVOSTART digital drives for 115 / 230 Volts AC

Output Power

0.76 kilowatts / 1.02 Horsepower

Max Speed

6000 RPM

Stall Torque at 40C

1.35 Nm

Stall Torque at 25C

1.42 Nm

Max Torque

3.22 Nm

Continuous Current

4.67 Amps

Peak Current

16.5 Amps

Motor Weight

2.5 kilograms

Brake Weight

1.1 kilograms

Total System Weight

3.6 kilograms

Poles

8

Brake Length

165.6 millimeters

Motor Width

90 millimeters

Motor Height (without connectors)

90 millimeters

Motor Height (with connectors)

137 millimeters
