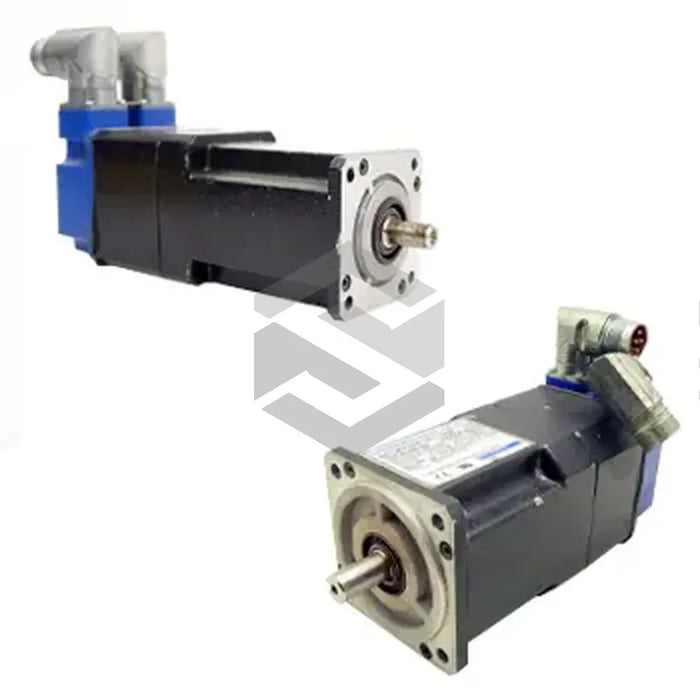

S image of MTC304A1-R1C1

MTC304A1-R1C1

by Kollmorgen
$2,530.13 - $2,530.13
$2,530.13
$2,530.13 - $2,530.13
$2,530.13

Available, Shipping Varies

The Kollmorgen MTC304A1-R1C1 is a Goldline XT servo motor suited for industrial applications, offering a 24V DC holding brake and 2048 LPR incremental encoder for accurate feedback. Equipped with unique features such as NEMA 100 mounting and 90-degree swivel power receptacles, the product promotes convenient installation options. The motor features low cogging and superior inertia/torque, qualifying it for high dynamic-response applications or low-speed uses. The thermal time constant is 25 minutes and thermal resistance at stall is 0.81 ºC / Watt, ensuring optimal temperature management. It delivers peak torque of 5.46 Amps and continuous torque at 2.8 / 2.64 Nm at 25 / 45 ºC. It operates on a peak voltage of 250 Volts and a current of 10 Amps (peak) or 2.72 Amps (continuous). With a compact design and IP65 rated housing, this servo motor is a robust and efficient solution.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product model

MTC304A1-R1C1

Product type

Goldline XT servo motor

Voltage

24 Volts DC

Feedback mechanism

2048 LPR incremental encoder

Mounting option

NEMA 100

Frame length

90 millimeters

Magnet stack length

4

Housing rating

IP65

Weight

3.3 kilograms

System weight

4.3 kilograms

Motor housing length

183 millimeters

Motor housing width

90 millimeters

System height

137 millimeters

Motor design

Patented, low cogging, excellent inertia / torque

Motor thermal resistance

0.81 ºC / Watt

Viscous damping

0.0112 Nm kRPM

Thermal time constant

25 minutes

Static friction

0.035 Nm

Peak theoretical acceleration

91,544 rad / sec2

Peak line to line voltage

250 Volts

Line-to-line inductance

51 millihenry

Line-to-line DC resistance

7.93 Ohms

Peak current

10 Amps

Continuous current

2.72 Amps

Peak torque

5.46 Amps

Continuous torque

2.8 / 2.64 Nm at 25 / 45 ºC

Approvals

CE, UL
