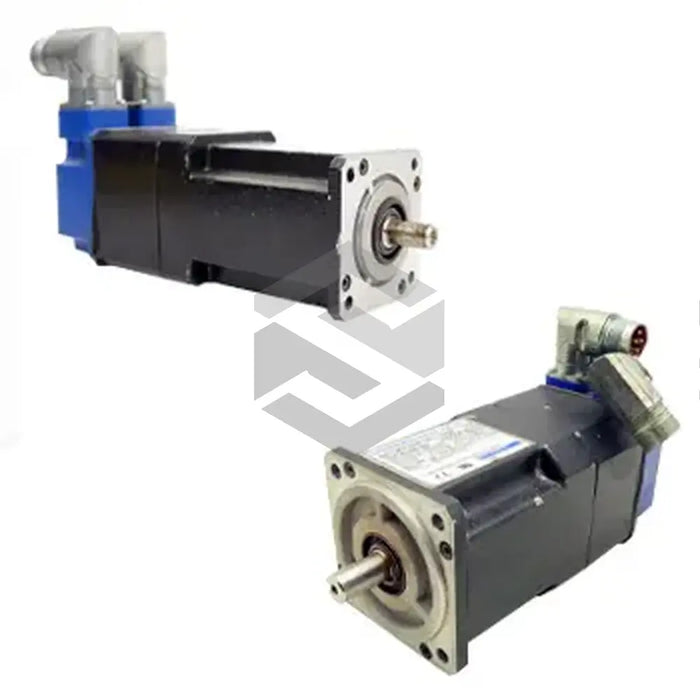

S image of MTC726B1-R1C1

MTC726B1-R1C1

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MTC726B1-R1C1 is a premium Goldline XT series servo motor manufactured by Kollmorgen. Boasting a low-cogging, buried magnet design, this motor is made to deliver minimal torque ripple. It is optimally matched with Kollmorgen Servostar digital drives and designed for an AC input of 400-480 volts. Its continuous current tolerance stands at 18.3 amps, with a peak stall current of 84.7 amps. The Servo motor provides a continuous stall torque of 50.4 Nm and a peak stall torque of 152 Nm, running at a rated speed of 2000 RPM and reaching a maximum speed of 2300 RPM. Equipped with a single-speed resolver feedback device, a 24 V DC holding brake, and set within a black, dust-tight, water-jet resistent housing (IP65), this robust motor has a 35mm standard shaft with a 10mm2 key, offering ideal mounting possibilities near machinery. Please operate within the recommended temperature range to ensure adherence to manufacturer specifications and avoid malfunction.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Model

MTC726B1-R1C1

Series

Goldline XT

Flange Length

174 mm

Magnet Stack Length

2

Motor Design

Buried Magnet

Compatible With

Kollmorgen Servostar digital drives

Type

3-phase permanent magnet servo motor

Input Voltage

400 to 480 Volts AC

Continuous Stall Current

18.3 amps

Peak Stall Current

84.7 Amps

Continuous Stall Torque

50.4 Nm

Peak Stall Torque

152 Nm

Rated Speed

2000 RPM

Maximum Speed

2300 RPM

Feedback Device

Single Speed Resolver

Additional Features

24 Volts DC Holding Brake

Paint

Black

Protection Rating

IP65

Mounting Option

35 mm standard shaft with 10 mm2 key

Motor Size

174 mm2

Shaft

Standard Shaft with seal

Ambient Temperature Range

40 degrees Celsius

Modifications

Not Permitted.
