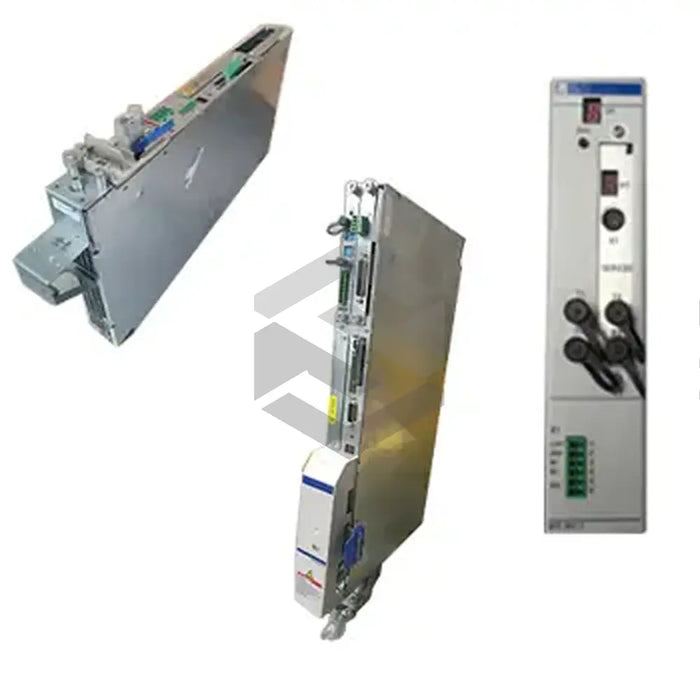

MTS-R01.2-M2-NN-FW

Request a quote
The MTS-R01.2-M2-NN-FW SPS module, produced by Bosch Rexroth Indramat, forms part of the MTC200-R power CNC controller, facilitating machine tool control on factory floors. The module is designed for the RECO unit with an SPS mode and a coprocessor, though the firmware is ordered separately. Communication between modules is achieved through an internal local bus on an adapter card. Additionally, the MTS-R01.2-M2-NN-FW module can be connected to other SPS modules, software, and computers using RS232 or RS485 for interaction with external peripherals. This module occupies a single slot in the RMB02.2 rack, where it can be situated adjacent to other units if required. If idle for more than six months, user data may be lost. This compact unit weighs approximately 1kg, measures 41.5 x 192 x 156 and has a protection rating of IP 20. Suitable operating conditions range from 0 to 50 degrees Celsius, with relative humidity of up to 75% during operation and up to 95% during transport.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MTS-R01.2-M2-NN-FW
  • Series: 2
  • Design: Mechanical for RECO unit
  • Mode: SPS with coprocessor
  • CNC Controller: MTC200-R
  • Communication: Internal local bus on adapter card
  • Additional Module: U1 with optional interface
  • Possible Interfaces: Serial interface module, INTERBUS, PROFIBUS-DP master module, PROFIBUS-DP slave module
  • Peripherals Connection: RS232 or RS485
  • Housing: RMB02.2 rack
  • Protection: Switchgear cabinet
  • Slot Requirement: One
  • Side by Side Mounting: Yes
  • Data Loss: After 6 months of dormancy
  • Current Consumption: Maximum 450mA
  • Heat Loss: 12.6W
  • Weight: Approximately 1kg
  • Dimensions: 41.5 x 192 x 156
  • Protection Rating: IP 20 according to EN 60529
  • Operating Temperature: 0 to 50 degrees
  • Storage Temperature: -25 to 70 degrees
  • Operating Humidity: 75%
  • Transport Humidity: 95%
