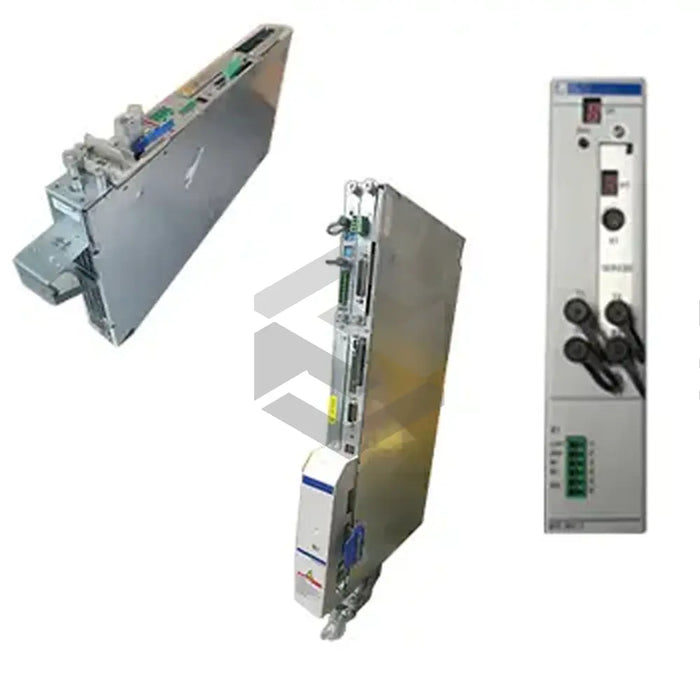

S image of MTS-R02.2-M2-B1-NN-NN-FW

MTS-R02.2-M2-B1-NN-NN-FW

by Bosch Rexroth Indramat
$4,722.52 - $4,722.52
$4,722.52
$4,722.52 - $4,722.52
$4,722.52

Available, Shipping Varies

The Bosch Rexroth Indramat MTS-R02.2-M2-B1-NN-NN-FW is a reliable and energy-efficient servo control module designed for industrial automation. Equipped with an INTERBUS master interface, it facilitates connectivity to both simple sensors and intelligent field devices over long distances, supporting up to 12.8 km. The module requires an 18 to 28 VDC power supply, converting AC to DC with minimal ripple and consuming a maximum current of 0.7A and a supply voltage of 2.6A for I/O modules. It features SPS and NC controller integration for CNC motion control. The unit is mounted on a TS 35 × 27 × 15 DIN rail within an IP54-protected switchgear cabinet. Operating efficiently at up to 1500 meters above sea level and within a temperature range of 0 to +50°C, it dissipates 19.6W of energy. A 7-segment H1 display allows for diagnostic monitoring, while configuration is handled via a DIP switch and the COM interface.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MTS-R02.2-M2-B1-NN-NN-FW

Interface

INTERBUS master interface

INTERBUS Distance Limit

12.8 km subdivided into 400 meters segments

Input Voltage Range

18 to 28 VDC

AC to DC Conversion Ripple

4 Vss

Maximum Current Consumption

0.7A

Supply Voltage for I/O Modules

2.6A

Energy Dissipation

19.6W

Mounting

TS 35 × 27 × 15 DIN rail

IP Protection

IP54

Air Requirement

Free from corrosive elements

Operating Height

1500 meters above sea level

Operating Temperature Range

0 to +50 degrees Celsius

PROG Interface Configuration

DIP switch

Diagnosis Display

7-segment H1 display

Configuration

B1-NN-NN with one INTERBUS interface in U1 slot

Slots

U2 and U3 are empty
