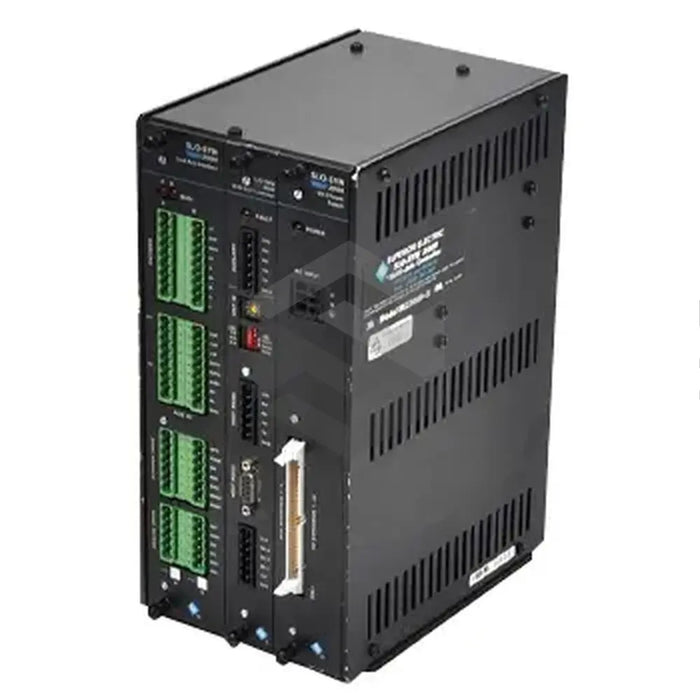

S image of MX2000-8

MX2000-8

by Kollmorgen
$1,891.40 - $1,891.40
$1,891.40
$1,891.40 - $1,891.40
$1,891.40

In Stock, Ships 1 - 3 Days

The MX2000-8 is a high-quality and multi-functional drive control system manufactured by Kollmorgen, renowned manufacturers of superior motion control systems. This device operates on a digital signal processor allowing it to multitask, managing up to seven complex motions simultaneously. It can control two to eight stepper or servo drives, operating on an electrical frequency of 90 to 132 VAC on a 50/60 Hz frequency. The system is designed with a built-in AC line filter and MOV's with advanced processing power, due to its sophisticated computer hardware. The set includes three primary circuit cards designed to communicate using a passive backplane secured in a rugged enclosure. The MX2000-8 hosts serial ports for enhanced communication, with the ability to handle both 'dumb' and 'intelligent' operator interfaces. It also offers standard pulse and direction signals while affording convenient programming in user units, contributed to its extensive mathematical functionality.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Model

MX2000-8

Controller Type

Drive Control System

Processor Type

Digital Signal Processor

Multitasking Capability

Up to seven complex motions

Drive Control Range

Two to eight stepper or servo drives

Operating Voltage

90 to 132 VAC

Operating Frequency

50/60 Hz

Built-in Features

AC Line Filter and MOVs

Communication Interfaces

Serial Ports, RS232, RS485

Compatibility

'Dumb' and 'Intelligent' operator interfaces

Additional Interface

Stepper Interface with pulse and direction signals

Programmability

User units such as revolutions and inches

Math Functions Availability

Extensive

Additional Features

Analog drive, Analog outputs can be used as the torque control command for servo drive.
