N12M4LR

Original price $1,787.50 - Original price $1,787.50
Original price
$1,787.50
$1,787.50 - $1,787.50
Current price $1,787.50

In Stock, Ships 1 - 3 Days

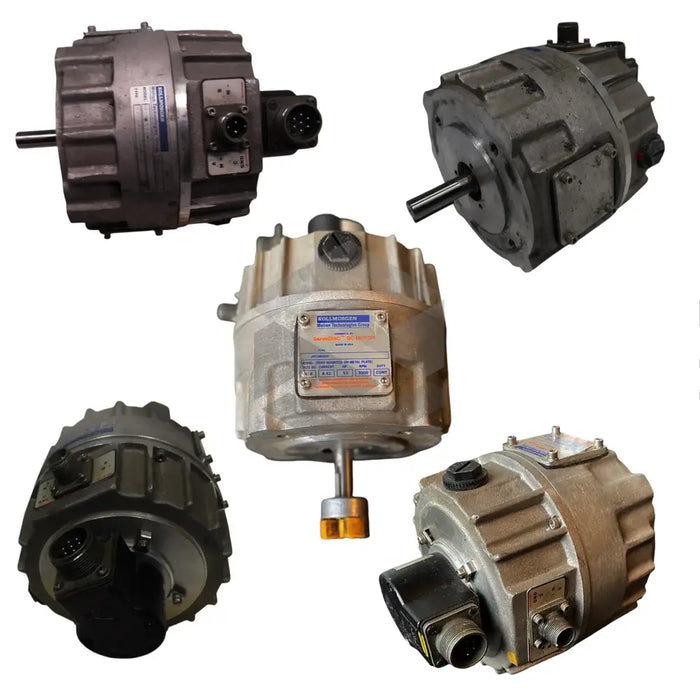

The N12M4LR is a motor manufactured by Kollmorgen. It belongs to the ServoDisc Pancake DC Motors and delivers a peak torque of 1522 oz-in. The motor provides a continuous torque of 131 oz-in at 25 °C and a rated speed of 3000 RPM. It weighs 5.3 lbs and has a rated power of 291 W at 26 V.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cogging Torque


0 oz-in

Diameter


111.0 mm

Length


23.9 mm

Mechanical Time Constant


4.20 ms

Moment Of Inertia


0.0190 oz-in-sec²

Peak Current


159 Amps

Peak Torque


1522 oz-in / 1075 N-cm

Rated Continuous Current


14.80 Amps

Rated Continuous Torque @ 25°c


131 oz-in / 93 N-cm

Rated Continuous Torque @ 40°c


117 oz-in / 83 N-cm

Rated Power Output


291 Watts

Rated Speed


3000 RPM

Rated Terminal Voltage


26.0 Volts

Thermal Resistance At Rated Speed


1.40 °C/Watt

Weight


5.3 lbs / 2.4 kg
