S image of NEXTSTEP 2027

NEXTSTEP 2027

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

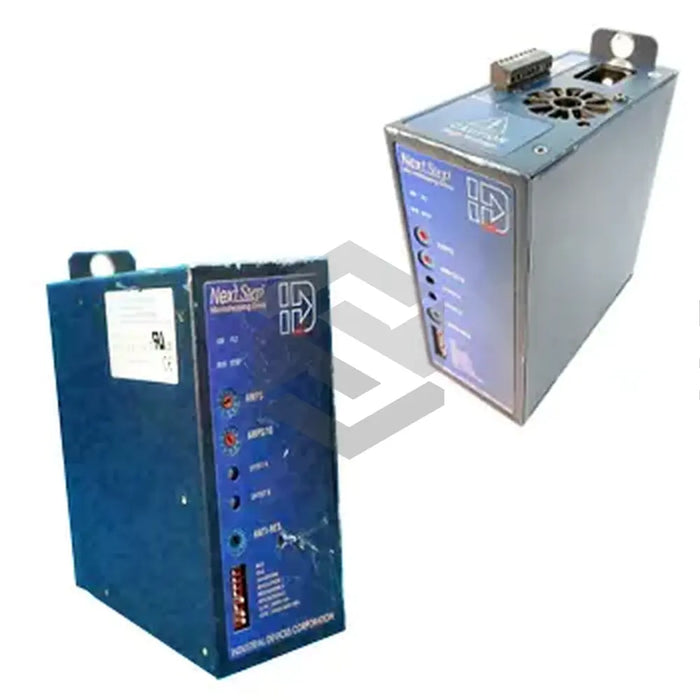

The NEXTSTEP 2027 from Kollmorgen features optically isolated step inputs with a minimum pulse width of 250 nanoseconds and tri-color diagnostic LEDs. As part of the NEXTSTEP Microstepping Drives series, it supports high resolutions up to 50,000 steps per revolution and operates with a nominal bus voltage of 160/320 VDC.

The drive measures 5.4×5.4×2.5 inches and is stackable for efficient installations. It ensures protection against short circuit and over-temperature.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

AC Input (100–240 VAC)

100–240 VAC, single‑phase, 50/60 Hz

AC Input (120 VAC)

120 VAC, single‑phase, 50/60 Hz

Bus Voltage (120 VAC)

160 VDC nominal

Bus Voltage (240 VAC)

320 VDC nominal

Command Inputs

Optically isolated step, direction, shutdown

Dimensions (H×W×D)

5.4×5.4×2.5 in, compact stackable

High Resolution

5000,10000,18000,20000,25000,25400,36000,50000 steps/rev

Low Resolution

200, 400, 1000, 2000 steps/rev

Motor Current (120 VAC)

0–7.9 A in 0.1 A increments

Motor Current (240 VAC)

0–3.9 A

Operating Temp

Up to 50 °C (122 °F) at 6 A setting

Protection

Short circuit, over‑temp, under‑voltage, regen energy

Pulse Input Rate

Up to 2 MHz; min pulse width 250 ns

Status LEDs

Tri‑color for power, shutdown, over‑temp
