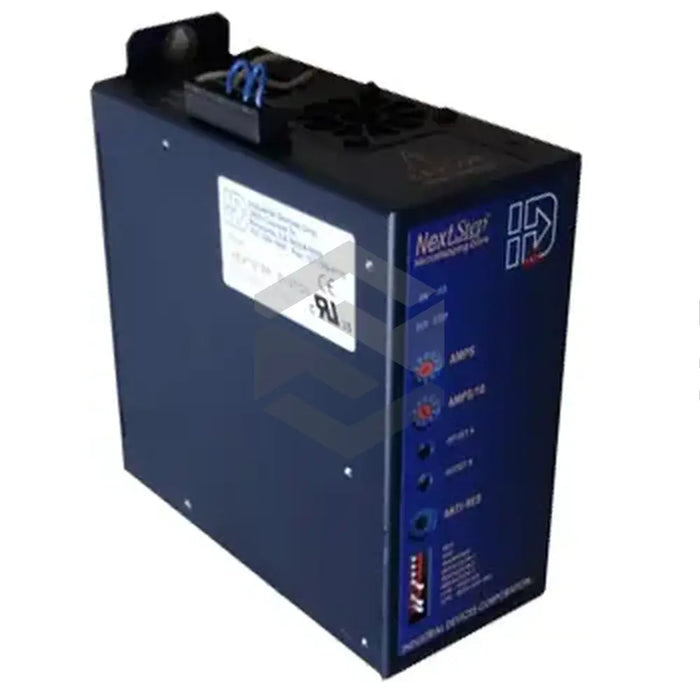

P image of NEXTSTEP-240

NEXTSTEP-240

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The NEXTSTEP-240 by Kollmorgen is a top-of-the-line micro-stepping drive that encompasses both drive control system and motor attributes. Compact, durable and competitively priced, it provides enhancements and high performance making it a choice option in industrial automation and motion control. The small footprint belies its power, delivering double the output of comparable models. It comes fitted with high torque NEMA motors and features a useful tri-color LED guide for operators. Thanks to an adjustable motor current waveform, it offers unrivaled smoothness and step-by-step accuracy. With eight selectable drive resolutions up to 50,000 steps/revolution, a 320 VDC bus voltage, and a selectable motor current up to 3.9 amps, this device is reliable and versatile. Additional features include a built-in regenerative circuit, internal cooling tunnel, and a REST switch for enhanced efficiency and longevity. The NEXTSTEP-240 operates on a 100-240 VAC single phase at 50/60 Hz.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Model

NEXTSTEP-240

Product Type

Micro-Stepping Drive

Motor Type

Long life, High Torque NEMA Motors

Feature

Descriptive Tri-color LEDs

Voltage Operation

240 VAC

Step Input

Clockwise and Anti-clockwise

Selectable Drive Resolutions

Up to 8 up to 50,000 steps/revolution

Bus Voltage

320 VDC

Motor Current Setting

Up to 3.9 amps

Special Feature

Built-In Regenerative Circuit

Efficiency Feature

Internal Cooling Tunnel

Design Feature

Stackable, Reduces Panel Space

Additional Feature

REST Switch, Reduces Motor and Drive Temperature

Operating Voltage

100-240 VAC Single Phase

Operating Frequency

50/60 Hz
