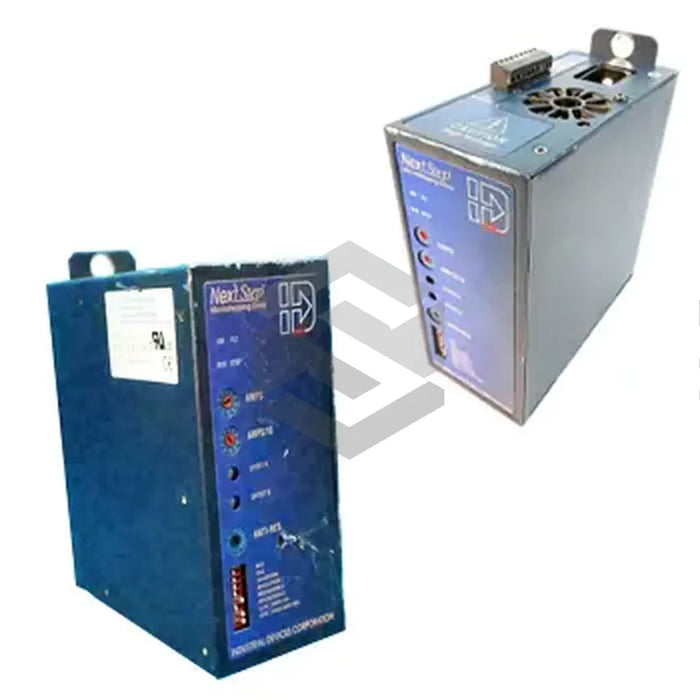

NEXTSTEP EO

The NEXTSTEP EO drive, manufactured by Kollmorgen, is an integral component of the NEXTSTEP Microstepping Drives series and carries the official identifier part_number. Engineered for demanding motion control applications, this micro-stepping drive accepts an AC Power Input of 90-120 VAC Single Phase, 50/60 Hz and provides a nominal Bus Voltage of 160 VDC. Despite a compact form factor, the NEXTSTEP EO delivers up to Motor Current of 0–7.9 amps in precise 0.1 amp increments, outperforming similarly sized competitors by offering twice the power density. The drive's Switching Frequency of 20 kHz enables fine resolution in step-pulse delivery, ensuring high fidelity in position control. As part of a now-retired series, the NEXTSTEP EO maintains its relevance through robust design and field-proven reliability, with continued availability via specialist distributors.

The performance characteristics of the NEXTSTEP EO emphasize efficiency and flexibility for high-throughput systems. Its internal regenerative circuit captures braking energy from large inertial loads, returning power to the bus and reducing overall energy consumption. An adjustable motor current waveform refines step-to-step accuracy and smoothness, delivering consistent torque even at low speeds. With an operating range of 0–7.9 amps, the drive accommodates a broad spectrum of NEMA motor sizes, enabling both high-torque and high-speed profiles. A high Switching Frequency of 20 kHz minimizes audible noise and vibration, while the nominal Bus Voltage of 160 VDC ensures robust performance under dynamic load conditions. These attributes combine to raise open-loop positioning throughput well beyond conventional microstepping drives.

Reliability features are built into every aspect of the NEXTSTEP EO's architecture. The drive includes comprehensive protection against under-voltage, over-temperature, and short-circuit events, safeguarding connected motors and electronics. An innovative internal cooling tunnel directs airflow across critical heat-generating components, preserving long-term stability without external fans. The use of advanced surface-mount technology and energy-efficient hybridized power circuitry ensures minimal thermal stress and extended service life. Compact enough to allow side-by-side stacking of multiple units, the NEXTSTEP EO simplifies system integration in CNC tables, rotary indexing machines, and pick-and-place automation platforms where precision, efficiency, and low footprint are paramount.
