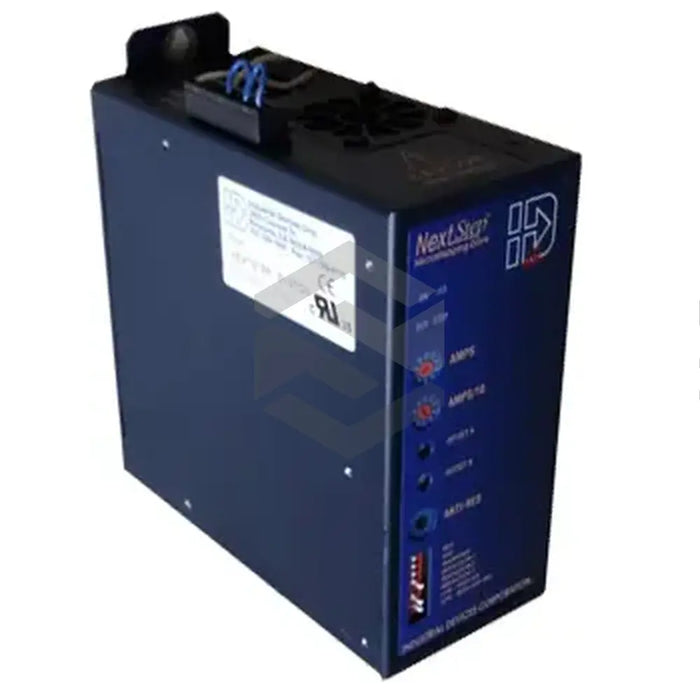

P image of NEXTSTEP-SYST01

NEXTSTEP-SYST01

by Kollmorgen
$1,623.05 - $1,623.05
$1,623.05
$1,623.05 - $1,623.05
$1,623.05

Available, Shipping Varies

The IDC NEXTSTEP-SYST01 is a microstepping drive designed for use with 2-phase hybrid permanent magnet motors, offering highly precise control. It operates with an AC input power of 90 to 120 Volts, 50/60 Hertz and a maximum draw of 7.9 Amps and 500 VA. Its motor current ranges from 0 to 7.9 Amps, folding back to 6 Amps when idle. Utilizing an auto-adjusting current loop, it optimizes the performance of any stepper motor within an inductance range of 2 to 60 millihenry. Its nominal DC bus voltage sits at 160 Volts. The unit features in-built safeguards like short-circuit protection, under-voltage prevention, and overtemperature monitoring, making it highly reliable and safe to use. Designed for durable operation, it can handle ambient temperatures up to 50 degrees Celsius and relative humidity of 0 to 90%. Measuring compact 5.4 x 5.4 x 2.5 inches, its LED indicates the driving status. It should be installed and operated by trained personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name

IDC NEXTSTEP-SYST01

Type

Microstepping Drive

AC Input Power Rating

90 to 120 Volts AC

Frequency

50 / 60 Hertz

Maximum Amp Draw

7.9 Amps

Maximum Input Power

500 VA

Motor Current Range

0 to 7.9 amps

Nominal Bus Voltage

160 Volts DC

Compatible Motor Type

2-phase hybrid permanent magnet motors

Inductance Range

2 to 60 millihenry

Switching Frequency

20 kilohertz

Protection Feature

Short circuit protection

Shutdown Conditions

AC input below 90 Volts AC, heatsink temperature above 65 degrees Celsius, broken interlock connection, bus voltage above 220 Volts DC

Ambient Conditions for Storage

-40 to 80 degrees Celsius

Ambient Conditions for Operation

max 50 degrees Celsius, 0 to 90% relative humidity

Dimensions

5.4 x 5.4 x 2.5 inches

Warning

Only trained personnel should install and operate
