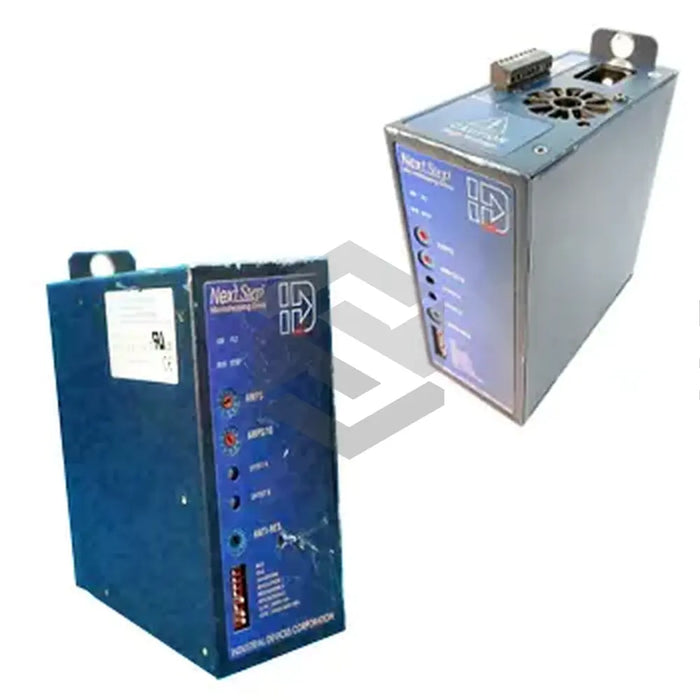

S image of NEXTSTEP-SYSTO3

NEXTSTEP-SYSTO3

by Kollmorgen
$1,711.85 - $1,711.85
$1,711.85
$1,711.85 - $1,711.85
$1,711.85

In Stock, Ships Fast

Kollmorgen's NEXTSTEP-SYSTO3 is a single-axis drive, measuring 5.4 x 5.4 x 2.5 inches with a maximum operating temperature of 122°F at a 6 Amps setting. Its storage temperature ranges from -40 to 176°F and is suitable to operate in an ambient relative humidity of 0 to 90%. Useful LED features indicate steps and direction received as well as instances of over-voltage, thermal shutdown, under voltage, interlock, regen, and short circuit. The device will automatically shutdown given certain conditions involving short circuits, heatsink temperature, input voltage drops and broken interlock connections. It operates at a switching frequency of 20 kilohertz, draws a maximum input power of 500 VA at 7.9 Amps and works within an input rating of 90 to 120 Volts AC. With output current ranging from 0 to 7.9 Amps, the NEXTSTEP-SYSTO3 is tailored for use with 2-phase motors featuring a hybrid permanent magnet.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Name

NEXTSTEP-SYST03

Product Type

Single-Axis Drive

Dimensions

5.4 x 5.4 x 2.5 inches

Max Operating Temperature

122 degrees Fahrenheit at 6 Amps

Storage Temperature

-40 to 176 degrees Fahrenheit

Relative Humidity

0 to 90%

Led Indications

Steps received, direction received, over-voltage, thermal shutdown, under voltage, interlock, regen, short circuit

Overheating Temperature

149 degrees Fahrenheit

Low Voltage Shutdown

Below 90 Volts AC

Switching Frequency

20 kilohertz

Max Input Power

500 VA at 7.9 Amps

Input Rating

90 to 120 Volts AC

Type of Power

Single-phase AC mains

Output Current Range

0 to 7.9 Amps

Current Increment

0.1 Amp

Overcurrent Fold back

Above 6 Amps

Drive Bus Voltage

160 Volts DC

Intended Motors

2-phase hybrid permanent magnet

Input Isolation

Optically isolated

Installation

Qualified personnel only.
