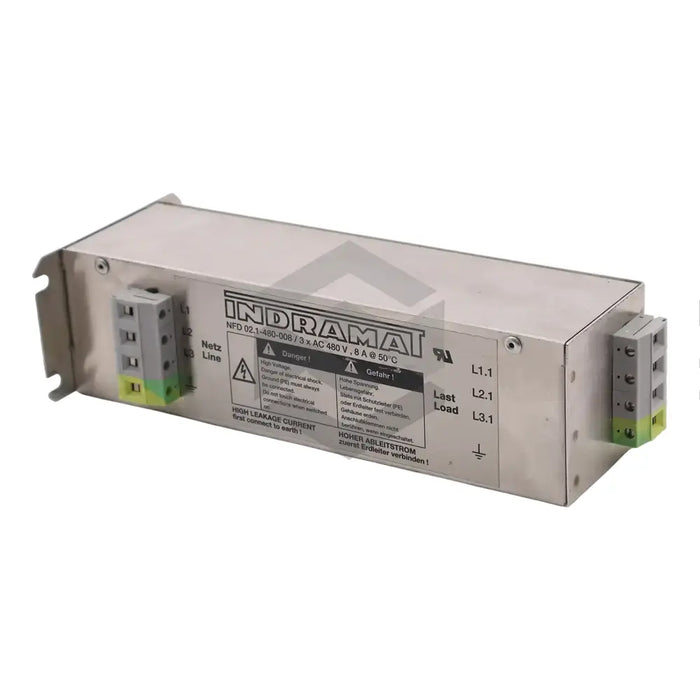

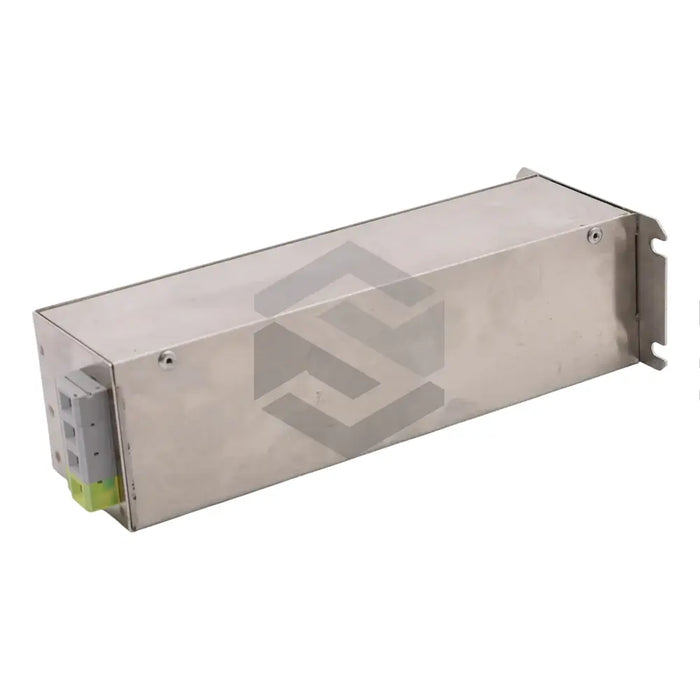

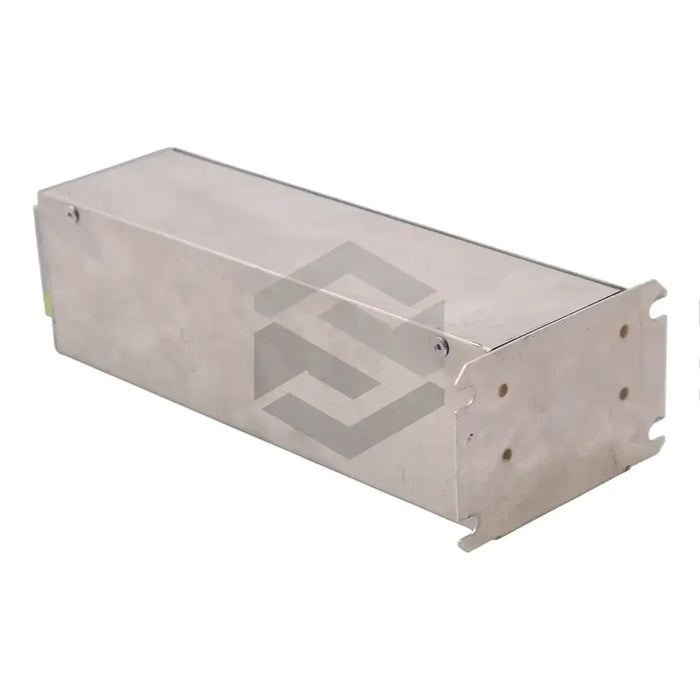

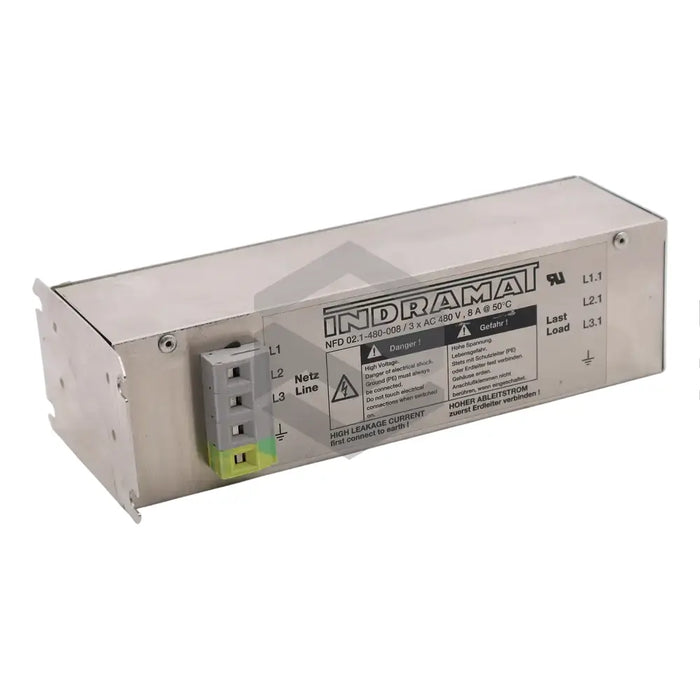

NFD02.1-480-008

Original price $1,200.00 - Original price $1,200.00
Original price
$1,200.00
$1,200.00 - $1,200.00
Current price $1,200.00
Available, Shipping Varies
The NFD02.1-480-008 line filter, produced by globally respected industrial automation equipment manufacturer Bosch Rexroth Indramat, ensures dependable operational stability. Drawing power from a three-phase AC source ranging from 115 to 480V (+10% to -15% tolerance), it consumes a steady 7.5A of current during continuous operation. Used alongside certain contactors and transformers, this model aids in stabilizing motion control. It necessitates specific installation in line with NFD instructions and must only be paired with compatible Rexroth-approved products. The filter connects through tab receptacles (b=6.3mm, d=1mm) and can be positioned as needed due to its flexible design. To ensure longevity, it should be installed in a high-protection control cabinet to avoid dust accumulation, and its design allows for natural convection cooling. Installation is subject to certain conditions, for example, ambient temperature not exceeding +40 degrees Celsius, relative humidity below 90%, and an installation height up to 1000 meters above sea level.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: NFD02.1-480-008
  • Type: Mains Filter
  • Operational Stability and Reliability: High
  • Power Source: Three-phase AC, 115 – 480 V, -15% to +10% tolerance
  • Rated Current: 7.5 A
  • Compatible with: Rexroth-approved Products
  • Connection Type: Tab receptacles (b=6.3mm, d=1mm)
  • Mounting: Multiple positions
  • Installation Location: Control cabinet
  • Cooling Method: Natural convection
  • Function: Damps unwanted signal interference from the power line
  • Operating Temperature: Maximum +40 degree Celsius
  • Maximum Installation Height: 1000 meters/ sea level
  • Humidity: Not more than 90%
  • Availability: Worldwide
