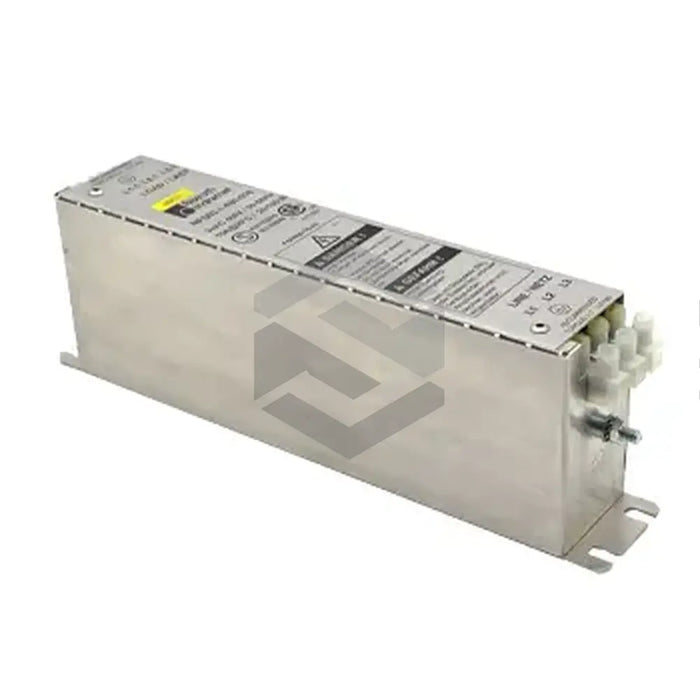

manufacturer image of NFD02.2-480-016

NFD02.2-480-016

by Bosch Rexroth Indramat
$855.18 - $855.18
$855.18
$855.18 - $855.18
$855.18
Available, Shipping Varies
The NFD02.2-480-016 is a mains filter manufactured by Bosch Rexroth Indramat. Especially designed to interact with the HCS product group of converters, this device operates optimally between 0Hz and 50Hz at 45°C, with a nominal voltage ranging from 115VAC to 480VAC. It possesses inductors that allow low frequency or DC currents to pass, while efficiently blocking harmful high-frequency currents. The device also minimizes any frequency signal beyond the filter's cut-off frequency. It is essential that it is properly grounded to avoid damage and should be used with shielded cables supplied by the manufacturer to ensure EMC limit compliance. The filter decreases interference in electronically controlled motors and dampens disturbances in connected cabling. It handles both asymmetrical and symmetrical interferences occurring within three-phase electronic units, with a leakage current of 175mA to 190mA at 50Hz during a single phase failure. Installation should be in close proximity to the device it protects, in an upright position, with the ground wire connected to a 10mm2 cross-section conductor via a ring cable plug or a plug connector. The NFD02.2-480-016 is equipped with IP 20 protection rating.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: NFD02.2-480-016
  • Operating Frequency: 0Hz to 50Hz at 45°C
  • Nominal Voltage: 115VAC to 480VAC
  • Function: Allows low frequency or DC currents to pass through while blocking high-frequency currents
  • Use: Used with HCS product group of converters
  • Interference Reduction: Lowers interference in electronically controlled motors and dampens interferences in cables connected from the mains
  • Leakage Current: 175mA to 190mA at 50Hz during phase failure
  • Placement: Must be in close proximity to equipment it protects and positioned upright
  • Ground Wire Connection: Connected with a conductor with a cross-section of 10mm2, through ring cable plug or plug connector
  • Protection Rating: IP 20
