NFE02.1-230-008

by Bosch Rexroth Indramat
$590.23 - $649.25
$590.23
$590.23 - $649.25
$590.23

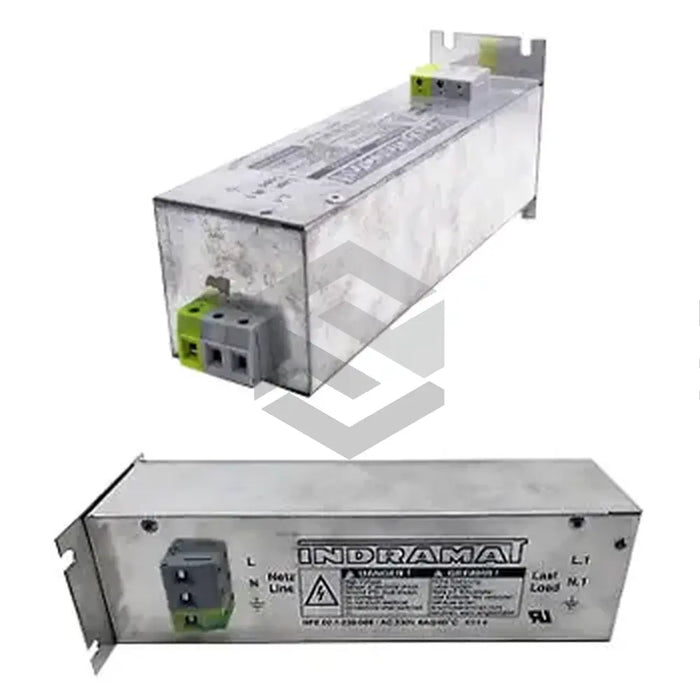

The NFE02.1-230-008, manufactured by Bosch Rexroth Indramat, represents the pinnacle of motion control technology. This mains filter from the NFE series helps mitigate radio signals interference on the power line, essential for applications demanding high stability and reliability. It derives power directly from a single-phase AC 230 V source with ±10% tolerance. Measuring 90mm x 210mm x 60mm, the filter should be installed as per the NFE guide and has a maximum tightening torque of 0.8 Nm. It has 3 terminal connectors and consumes a nominal current of 8 A. The vertical construction unit weighs 1.1 kg and can dissipate 7.2 W power under certain conditions. The model operates between 0 - 60 Hz within an ambient temperature range of -25 to +85 degrees Celsius. With a 6 dB reduction in filter attenuation, it ensures optimal performance. The unit is protected under the IP20 degree and requires Rexroth-certified experts for installation and operation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

NFE02.1-230-008

Product Type

Mains Filter

Series

NFE

Primary Use

Reduction of radio signals interference

Power Source

Single-phase AC 230 V (±10% tolerance)

Physical Dimensions

90mm x 210mm x 60mm

Max Tightening Torque

0.8 Nm

Nominal Current

8 A

Weight

1.1 kg

Power Dissipation

7.2 W

Connectors

3 terminal (4(3), 6(3), and AWG 10)

Operating Frequency

0 – 60 Hz

Operating Temperature

-25 to +85 degree Celsius

Filter Attenuation Reduction

6 dB at 2.5-fold to 3-fold nominal current

Protection Degree

IP20.
