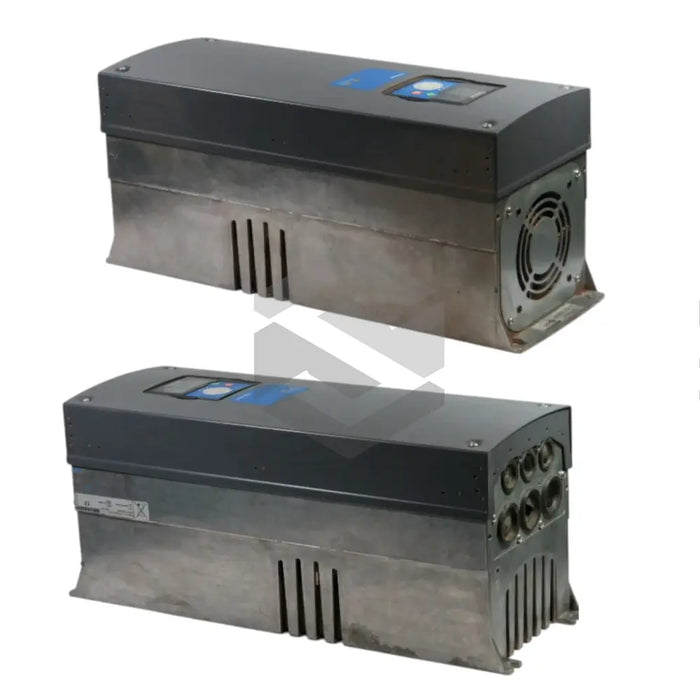

NXP00225-ATH1STS-A100000000+BM1V+FNP02V180+FL23
by Danfoss
The NXP00225-ATH1STS-A100000000+BM1V+FNP02V180+FL23 is a robust AC drive engineered by Danfoss as part of the VACON NXP Air Cooled Drives series. This air-cooled drive features a mechanical size of MF3/IP20 and weighs only 2 kg, ensuring a compact footprint for industrial installations. It accepts a three-phase input voltage of 380-500 V at 50/60 Hz and delivers a maximum output frequency of 320 Hz. Designed for motor shaft power ratings up to 3 kW at 500 V and 2.2 kW at 380 V, it provides high performance for diverse automation tasks. The unit’s enclosure protection class of IP20 combines with an EMC level of N to offer dependable operation in controlled indoor environments.
Technical capabilities are highlighted by its wide input frequency range of 45–66 Hz, enabling consistent performance under fluctuating supply conditions. The drive’s nominal input current is 8.1 A, while it converts the input voltage to an output voltage of 0–Uin for precise motor control. With a maximum output frequency of 320 Hz, the drive supports both low-speed start-up and high-speed operation. The unit’s frequency handling of 50/60 Hz aligns with international power standards, ensuring global applicability. Mechanical dimensions of 84 x 220 x 172 mm facilitate integration into compact control panels, while the output voltage tracking to Uin enhances dynamic response in demanding processes.
Operational features include open-loop and closed-loop vector control modes for optimized torque regulation and energy efficiency. The drive supports encoder feedback via TTL, HTL, and Sin/Cos signals, providing flexibility for advanced speed and position control. Integrated dynamic braking through a built-in brake chopper ensures rapid deceleration, improving safety and cycle times. The unit withstands vibration levels up to 7 m/s² in the 13.2–100 Hz range and 1.0 mm peak in the 2–13.2 Hz range, guaranteeing stability under industrial floor-mounted and cabinet-mounted conditions. Ambient adaptability is further enhanced by derating curves applied at higher temperatures and altitudes, maintaining reliable operation up to 1,000 meters.
Integration is simplified by standard control terminal blocks offering six digital inputs, two analog inputs, one analog output, and multiple relay outputs for status signaling. The IP20 enclosure rating ensures ease of access for wiring and maintenance, while the EMC filter compliant with IEC/EN 61800-3 reduces electromagnetic interference in facility networks. With its compact dimensions, lightweight design, and versatile feedback support, the NXP00225 series drive is ideal for pump and fan control, conveyor systems, compressor regulation, and general industrial automation applications requiring precise motor management.
