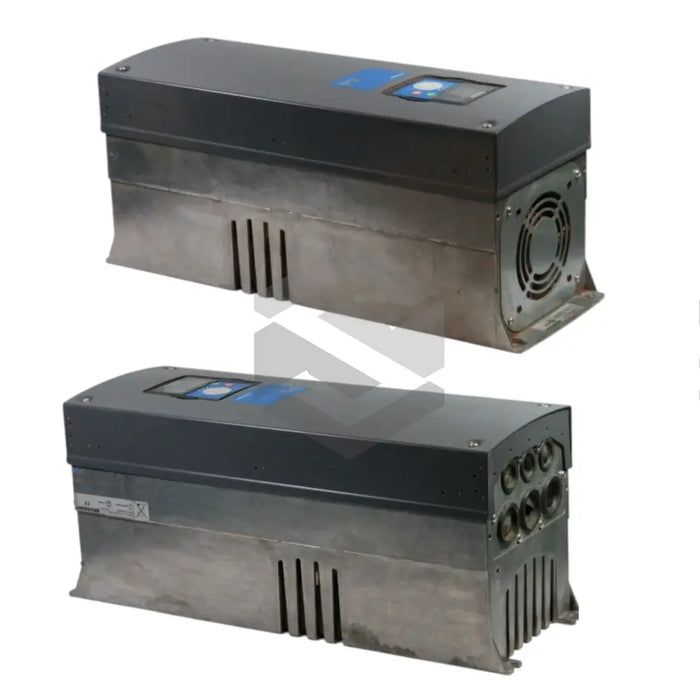

NXP00385A5H1SSVA1AF0000C6

The Danfoss NXP00385A5H1SSVA1AF0000C6 drive sets a new benchmark in industrial motor control within the VACON NXP Air Cooled Drives series. This compact unit operates on a mains voltage of 380-500 V, 3-phase supply at 50/60 Hz frequency, delivering a rated output current of 38 A with a continuous current rating (Il) of 5.4 A and a nominal input current of 8.1 A. Its 50% overload current (Ih) of 6.5 A enables temporary load surges, while the air-cooled design achieves a lightweight profile of 2 kg in an enclosure class IP20 housing. With overall dimensions of 84×220×172 mm and a mechanical size MF3/IP20, the drive occupies minimal panel space. Its dual motor shaft power ratings—1.5 kW at 380 V and 2.2 kW at 500 V (both at 50% overload and 50 °C)—provide flexible power options for diverse motor types.

Using vector control algorithms, the NXP00385A5H1SSVA1AF0000C6 achieves precise speed regulation in both sensor-less and encoder-based systems. The drive features a switching frequency of 3.6 kHz and an output frequency range from 0 to 320 Hz, supporting smooth acceleration profiles and stable low-speed operation. A programmable starting delay time of 5 sec allows controlled ramp-up sequences, while compliance with EMC level C2 (IEC/EN 61800-3) ensures minimal electromagnetic interference in sensitive installations. Standard I/O includes 6 digital inputs, 2 analog inputs, and 1 analog output, plus an auxiliary voltage supply of 24 V ±10%. Vibration resistance up to 0.25 g (5–150 Hz) enhances durability in harsh conditions. Fieldbus expansion options—such as Profibus DP and Ethernet/IP—enable seamless integration with advanced automation networks.

Built for reliability and ease of integration, this drive offers multiple protective functions including motor overload, short-circuit protection, and fault detection, safeguarding connected equipment. The graphical keypad simplifies setup, parameter tuning, and diagnostics, reducing commissioning time. Compliance with industrial standards is affirmed by an IP20 enclosure class and robust mechanical design that supports continuous operation. Compact dimensions and a weight of only 2 kg facilitate retrofits in existing panels or new control cabinets. Ideal for industrial automation applications—such as conveyors, pumps, fans, and material handling systems—this drive strikes a balance between performance, reliability, and efficient integration.
